Description

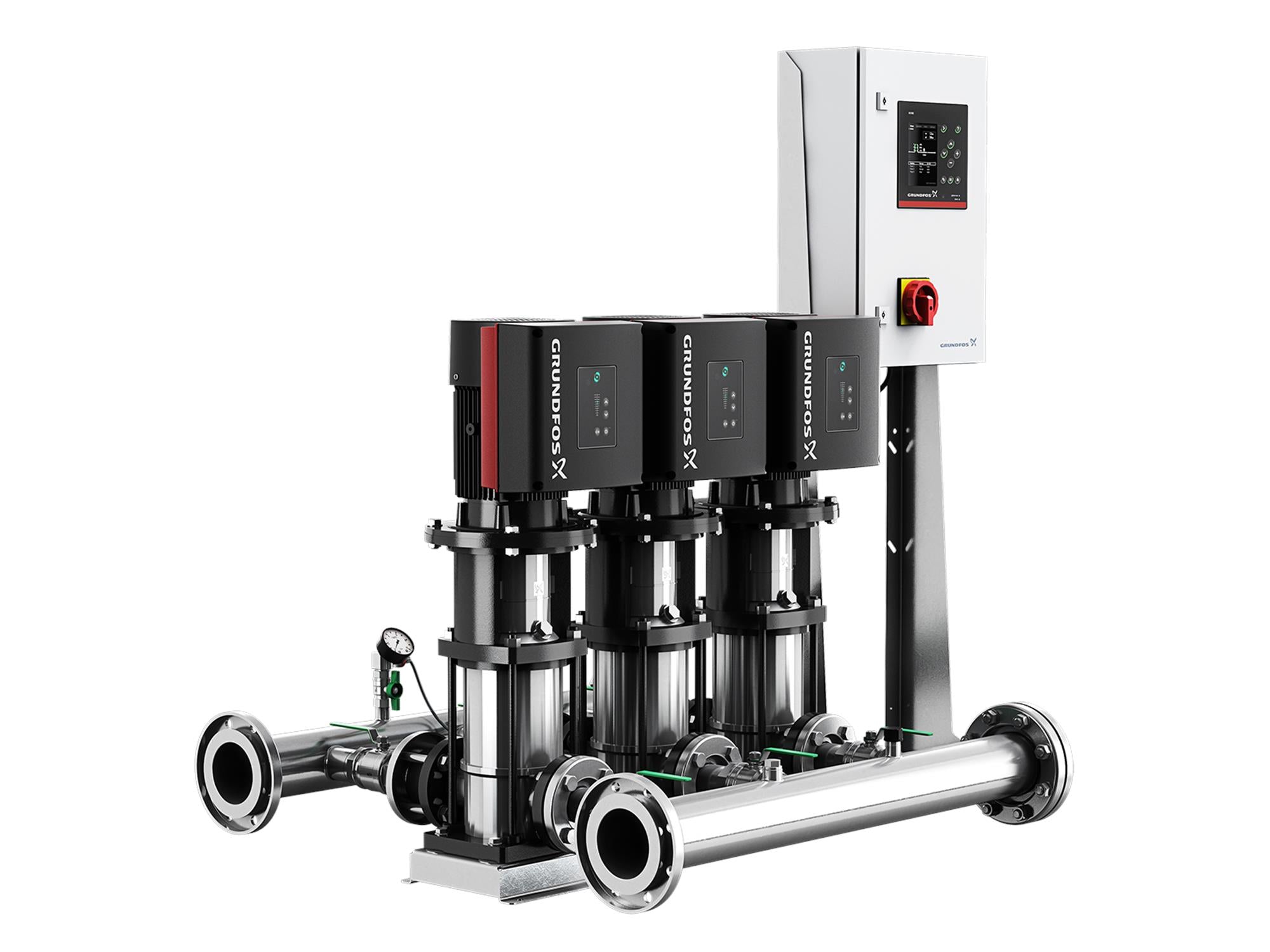

This booster set is an advanced and energy-efficient pressure boosting system for clean water applications. It includes 2-6 parallel connected pumps, an integrated advanced controller, and all necessary fittings. Suitable for use in water treatment fertigation, chemigation, dosing, controls and digital groundwater management, as well as drip, micro spray, and soaker hose irrigation systems.
Specifications
| Manufacturer | Grundfos |
|---|---|
| Part Number | 99689042 |
| Rated flow | 713 US gpm |
| Max flow | 925 US gpm |
| Rated head | 282.5 ft |
| Maximum head | 364.8 ft |
| Approvals | CULUS,PROP65 |
| Main pump name | CRE 45-3 |
| Non-return valve position | Outlet |
| Number of pumps | 3 |
| Manifold | Stainless steel, EN 1.4571, AISI 316 TI |
| Base | Stainless steel, EN 1.4301, ASTM 304 |
| Range of ambient temperature | 41 .. 104 °F |
| Maximum operating pressure | 232.06 psi |
| Manifold inlet | ANSI 6" |
| Manifold outlet | ANSI 6" |
| Pressure rating for connection | PN 16 |
| Earth connection | PE |
| System design | D |
| Pumped liquid | Water |
| Liquid temperature range | 41 .. 179.6 °F |
| Selected liquid temperature | 68 °F |
| Density | 62.29 lb/ft³ |
| Power (P2) main pump | 24.8 HP |
| Rated power - P2 | 25 HP |
| Main frequency | 60 Hz |
| Rated voltage | 3 x 460-480 V |
| Rated current | 30.5 A |
| Rated current of system | 92.5 A |
| Enclosure class (IEC 34-5) | IP54 |
| Radio interference supression | EMC DIRECTIVE(2014/30/EU) |
| Number of phases of main pump | 3 |
| Control type | E |
| Dry running protection, mechanical | PRESSURE SENSOR 0-10 BAR |
| Controller | CU 352 |
| Diaphragm tank | No |
| Net weight | 1910 lb |
| Gross weight | 2260 lb |
| Shipping volume | 217 ft³ |
| Sales region | Namreg |
| Config. file no | 98272446 |
| Configuration file Control MPC | 98271947 |
| Configuration file Hydro MPC | 98272054 |
