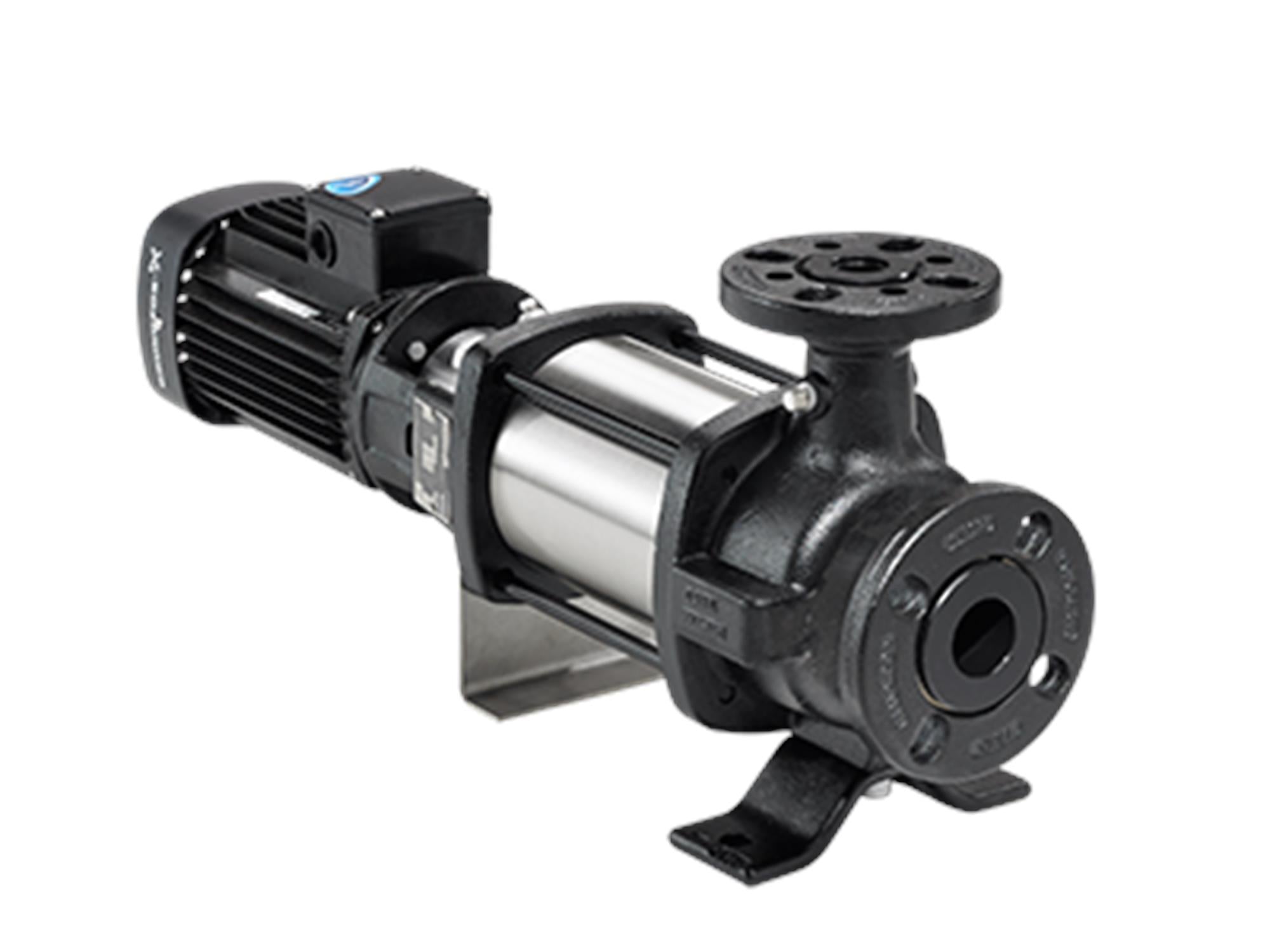

This horizontal multistage end-suction pump is engineered for inline applications and optimized for pressure boosting in industrial settings.
Specifications
Manufacturer
Grundfos
Part Number
97533312
Rated pump speed
3439 rpm
Rated flow
4.84 US gpm
Rated head
184.1 ft
Stages
10
Impellers
10
Low NPSH
N
Code for shaft seal
HQQV
Pump version
H
Base
Cast iron, EN-JL1030, 25B
Impeller
Stainless steel, EN 1.4301, AISI 304
Material code
A
Code for rubber
V
Maximum operating pressure
232.06 psi
Max pressure at stated temperature
232 psi / 194 °F, 232 psi / -4 °F
Size of suction port
1.5 inch
Size of outlet port
1.0 inch
Flange size for motor
56C
Connect code
GA
Pumped liquid
Water
Liquid temperature range
-4 .. 194 °F
Selected liquid temperature
68 °F
Density
62.29 lb/ft³
Net weight
48.5 lb
Gross weight
75.7 lb
Sales region
USA
Country of origin
US
Custom tariff no.
8413.70.2040
