Grundfos 96101002, Vertical Multistage Centrifugal Pump, Titanium

Roll over image to zoom in Click on image to zoom

Grundfos 96101002, Vertical Multistage Centrifugal Pump, Titanium

Name: Grundfos 96101002, Vertical Multistage Centrifugal Pump, Titanium
Brand: Grundfos
SKU: LSIZR1F8GV
Price: 8130.95 USD
Availability: OutOfStock

SKU: LSIZR1F8GV Part Number: 96101002

Price:

$8,130.95 $12,135.00

Save 33% Call 844-448-0880 for large volume pricing

Stock:

Obsolete

Quantity:

This vertical multistage centrifugal pump has suction and discharge ports on the same level. Materials in contact with the liquid are made of titanium, which offers exceptional resistance to a wide range of acids, alkalis, seawater, and industrial chemicals.

Manufacturer	Grundfos
Part Number	96101002
Pump speed on which pump data is based	3450 rpm
Rated flow	30.8 US gpm
Rated head	186.7 ft
Head max	288.7 ft
Stages	6
Impellers	6
Low NPSH	N
Pump orientation	Vertical
Primary shaft seal	AUUE
Approvals	CE
Curve tolerance	ISO9906:2012 3B
Pump version	A
Pump housing	Titanium, ASTM B 265
Impeller	Titanium, ASTM B 265
Material code	A
Code for rubber	E
Maximum operating pressure	362.59 psi
Max pressure at stated temperature	363 psi / 250 °F, 363 psi / -4 °F
Flange standard	Victaulic
Pipe connection	PJE 1 1/4
Flange size for motor	182TC
Connect code	P
Pumped liquid	Water
Liquid temperature range	-4 .. 248 °F
Selected liquid temperature	68 °F
Density	62.29 lb/ft³
Motor standard	NEMA
Rated power - P2	3 HP
Power (P2) required by pump	3 HP
Number of poles	2
Frequency converter	None
Net weight	33.1 lb
Gross weight	44.1 lb

CR, CRI, CRN, CRT, CRE, CRIE, CRNE, CRTE (Custom-built pumps) (Data booklet)

CR, CRI, CRN, CRT (I & O instructions)

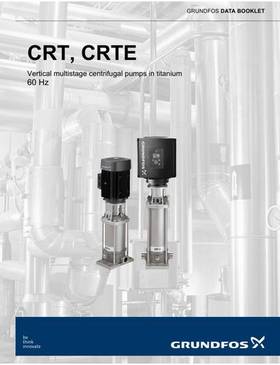

CRT, CRTE (Data booklet)

Grundfos has a wide range of products, pump solutions, and services for all applications. Grundfos' energy-efficient pumps provide comfort and move water, wastewater, and industrial liquids all over the world.
