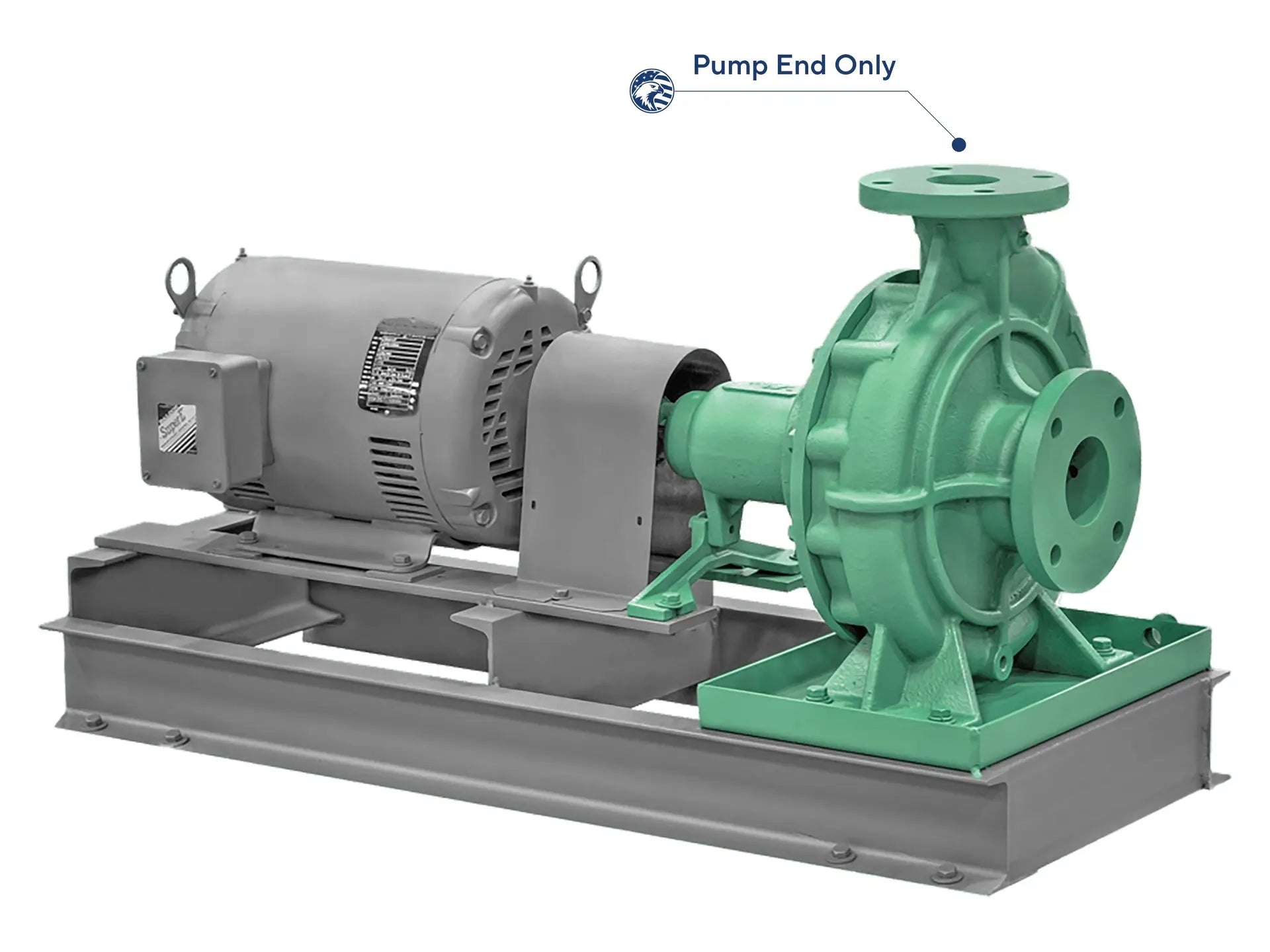

This Taco FI Series end suction pump features a 5" suction and a 4" discharge with ANSI Class 125 flanges. It uses an 11" nominal impeller diameter constructed of bronze, paired with a cast iron casing. The pump utilizes a stainless steel shaft with a bronze shaft sleeve and a dry shaft design that prevents the circulating fluid from contacting the shaft. The mechanical seal consists of a ceramic seat, carbon rotor, and EPT rubber, providing a temperature rating of 250°F. This unit is provided as a pump end assembly and does not include a base, coupler, or guard.
The pump operates at 1450 RPM and is rated for 15 HP. It utilizes an ODP enclosure and is configured for a 380/50/3 power supply. The assembly meets NEMA MG1-12.55 premium efficiency standards and has a PEI value of 0.97. This configuration is compatible with NEMA motor frames, although the motor is not included. It is designed for across-the-line starting and features pressure tappings on the suction and discharge connections.
