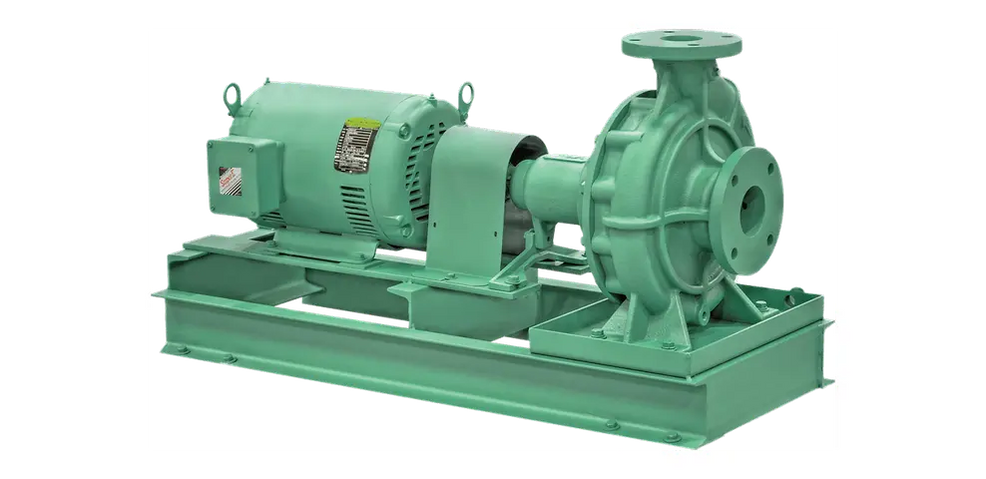

Taco FI Series Base-Mounted End Suction Pumps

Quiet, Dependable End Suction Pump Performance for Hydronic and Water Systems

Taco FI Series base-mounted end suction pumps are designed to deliver quiet, dependable power and strong hydraulic performance for a wide range of commercial and industrial applications. Built with modern dimensional and performance standards in mind, these pumps provide reliable operation for heating, cooling, pressure boosting, water transfer, and general water supply systems.

The FI Series features an improved bearing frame design with sealed-for-life bearings that meet industry requirements for a minimum L10 life of 60,000 hours. Optional re-greasable bearings are also available for applications that require additional service flexibility.

Designed to simplify maintenance and reduce lifecycle costs, these pumps include an easy-to-replace slip-on shaft sleeve for field seal service. Taco’s exclusive dry shaft design helps protect the pump shaft by preventing contact between the shaft and circulating fluid, reducing the need for corrosion-resistant shaft materials in many applications.

For added reliability, FI Series pumps include flush seal line taps that allow a filter to be installed to help protect the seal from non-condensable particles in open systems. Standard pressure tappings on the suction and discharge connections make system monitoring and servicing more convenient.

A fully welded structural steel base helps reduce vibration and improve alignment, while the top centerline discharge design simplifies piping layouts, reduces piping strain, and allows the pump to self-vent.

Product Features

• Base-mounted end suction pump design

• Quiet, dependable operation with strong hydraulic performance

• Designed to meet current dimensional and performance standards

• Improved bearing frame design with sealed-for-life bearings

• Bearings meet minimum L10 life requirements of 60,000 hours

• Optional re-greasable bearings available

• Easy-to-replace slip-on shaft sleeve helps simplify seal maintenance

• Exclusive dry shaft design protects the pump shaft from circulating fluid

• Flush seal line taps allow filter installation for seal protection

• Standard pressure tappings on suction and discharge connections

• Fully welded rigid structural steel base with enclosed ends and open grouting area

• Base design helps reduce vibration and improve alignment

• Top centerline discharge simplifies piping and reduces piping strain

• Self-venting pump design

• TEFC or ODP motor enclosure options
• eLink® connectivity available on select Taco products for support, monitoring, and controls

Performance Data

• Flow range: 20 to 4,800 GPM

• Head range: 5 to 380 feet

• Horsepower range: 1/2 to 200 HP

• RPM range: 1160 to 3500 RPM

• Pump sizes: 1.5" to 8"

Common Applications

• Hot water heating systems

• Closed cooling circuits

• Air conditioning systems

• Hydronic heating and cooling

• Pressure boosting

• Cooling water transfer

• Water supply

• Water/glycol systems with concentrations up to 50%

• Solar systems

• Geothermal systems
