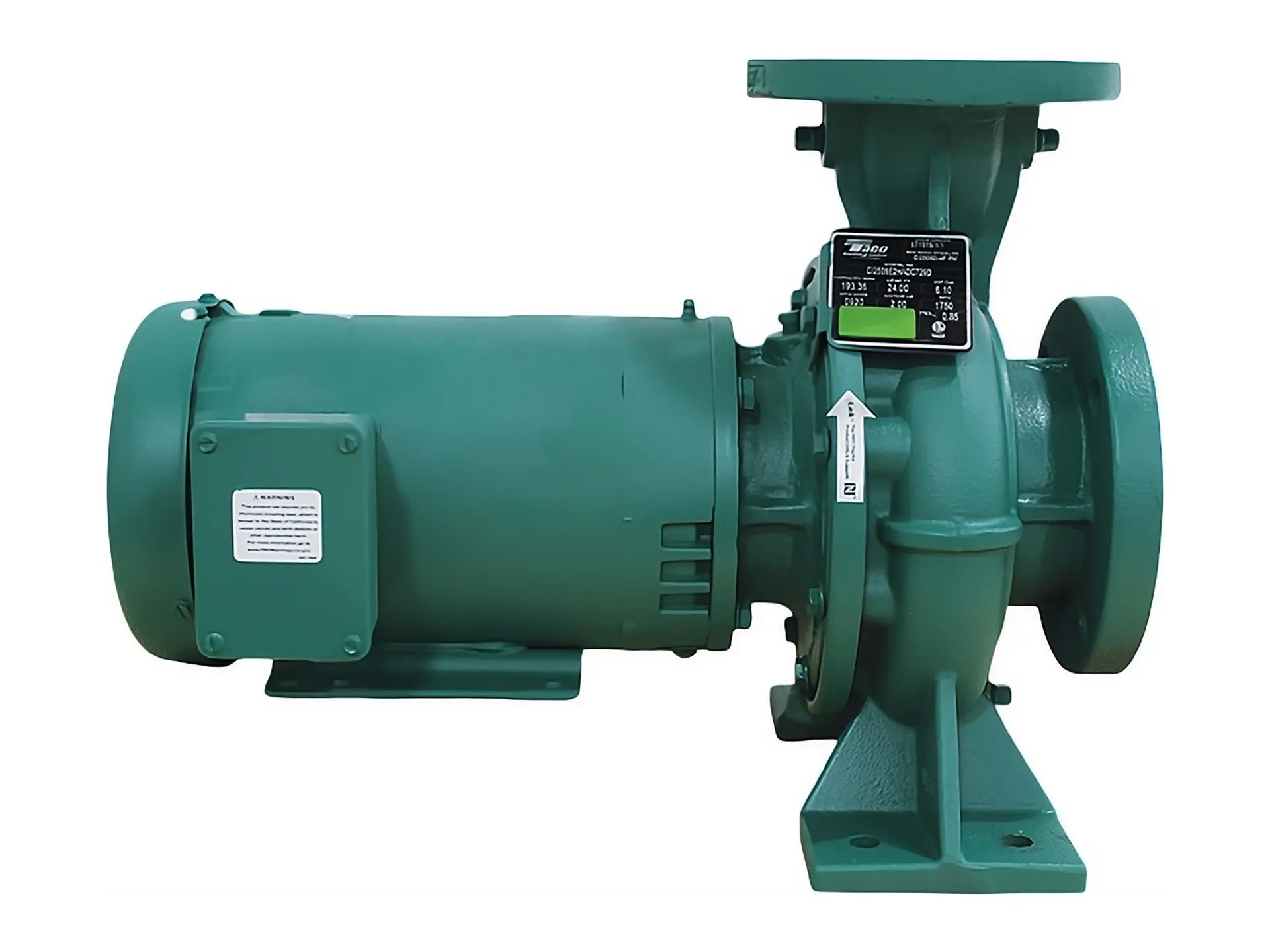

This Taco CI Series close coupled end suction pump features a cast iron casing with an 8" suction and a 6" discharge. The unit utilizes a 9-1/2" nominal impeller diameter constructed of bronze, paired with a bronze shaft sleeve. The pump incorporates a rear pullout design and a dry shaft configuration. It includes ANSI Class 125 flanges without a wear ring. The sealing system consists of a ceramic seat, carbon rotor, and EPT rubber, rated for temperatures up to 250 °F. Additional equipment includes AEGIS shaft grounding, pressure tappings on the suction and discharge connections, and flush seal line taps.
This pump is powered by a 40 HP Baldor motor with an ODP enclosure and a 324 JM frame with feet. The motor operates at 1750 RPM and is compatible with a 230-460/60/3 PH power supply. It is configured for across the line starting and functions in a 40 °C ambient environment meeting NEMA standards. The assembly complies with MG1-12.55 premium efficiency requirements and has a DOE PEI of 0.93.
