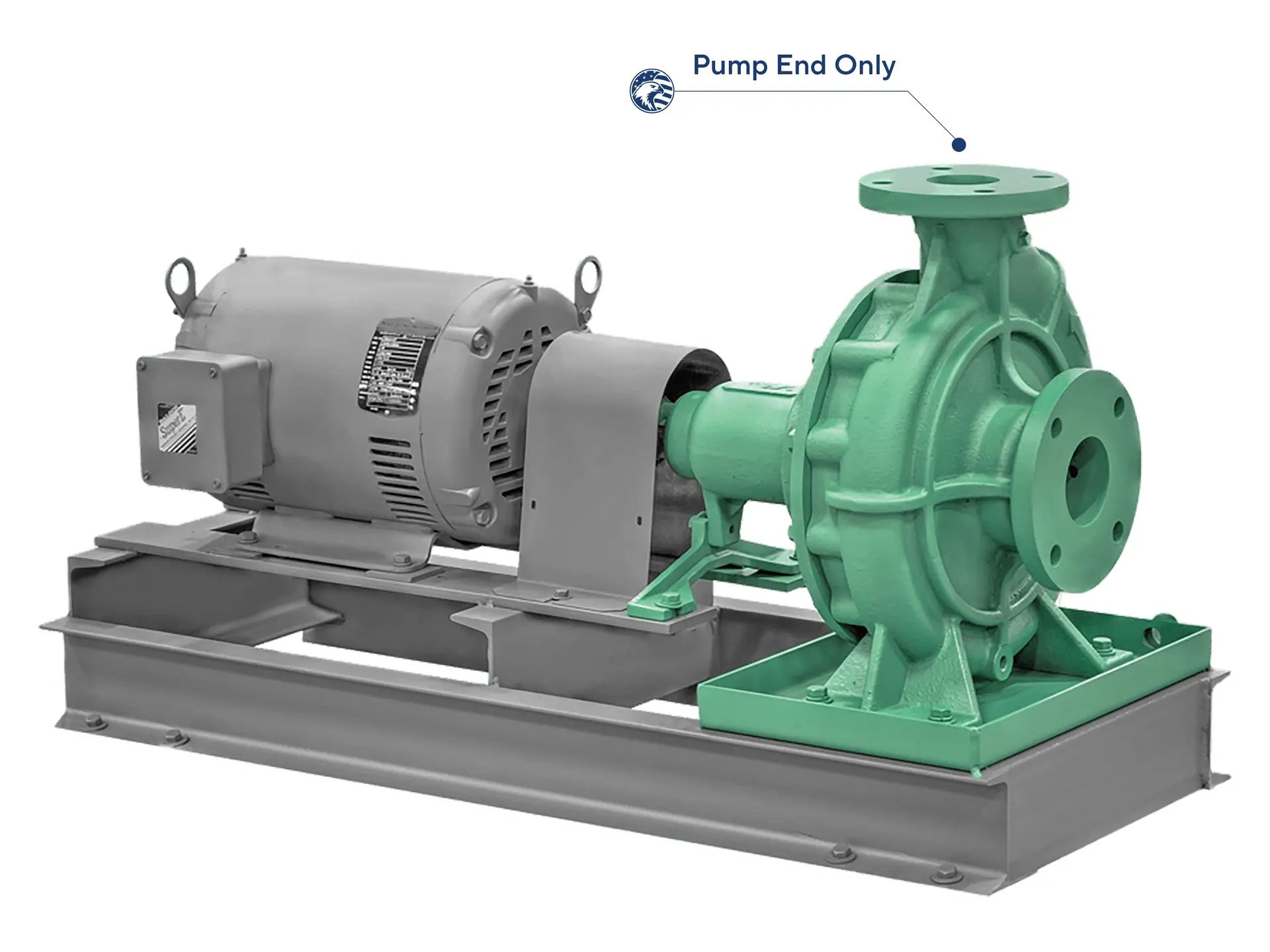

This Taco FI Series frame-mounted end suction pump features a 5" suction and a 4" discharge with ANSI Class 125 flanges. The unit consists of a cast iron casing with an integrated bronze wear ring and a 9-1/2" nominal diameter bronze impeller. It utilizes a stainless steel shaft equipped with a replaceable bronze shaft sleeve and a dry shaft design. The mechanical seal assembly features a ceramic seat, carbon rotor, and EPT rubber, with a temperature rating of 250 °F. Pressure tappings are located at both the suction and discharge connections, and the bearing frame includes sealed-for-life bearings.
This unit operates at 1750 RPM and is driven by a 10 HP motor with an ODP enclosure. It is configured for a 230-460/60/3 power supply with an across the line starting option. The motor includes AEGIS shaft grounding and meets NEMA MG1-12.55 premium efficiency standards. This assembly is provided as a pump end only configuration, supplied without a base, coupler, or guard. The unit has a DOE PEI value of 0.93.
