This Taco FI Series frame-mounted end suction pump features a 10" suction connection and an 8" discharge connection with ANSI Class 125 flanges. It is constructed with a cast iron casing, a bronze impeller, and a stainless steel shaft equipped with a bronze shaft sleeve. The pump utilizes a mechanical seal featuring a ceramic seat, a carbon rotor, and EPT rubber, rated for fluid temperatures up to 250 °F. This unit is configured without a wear ring.

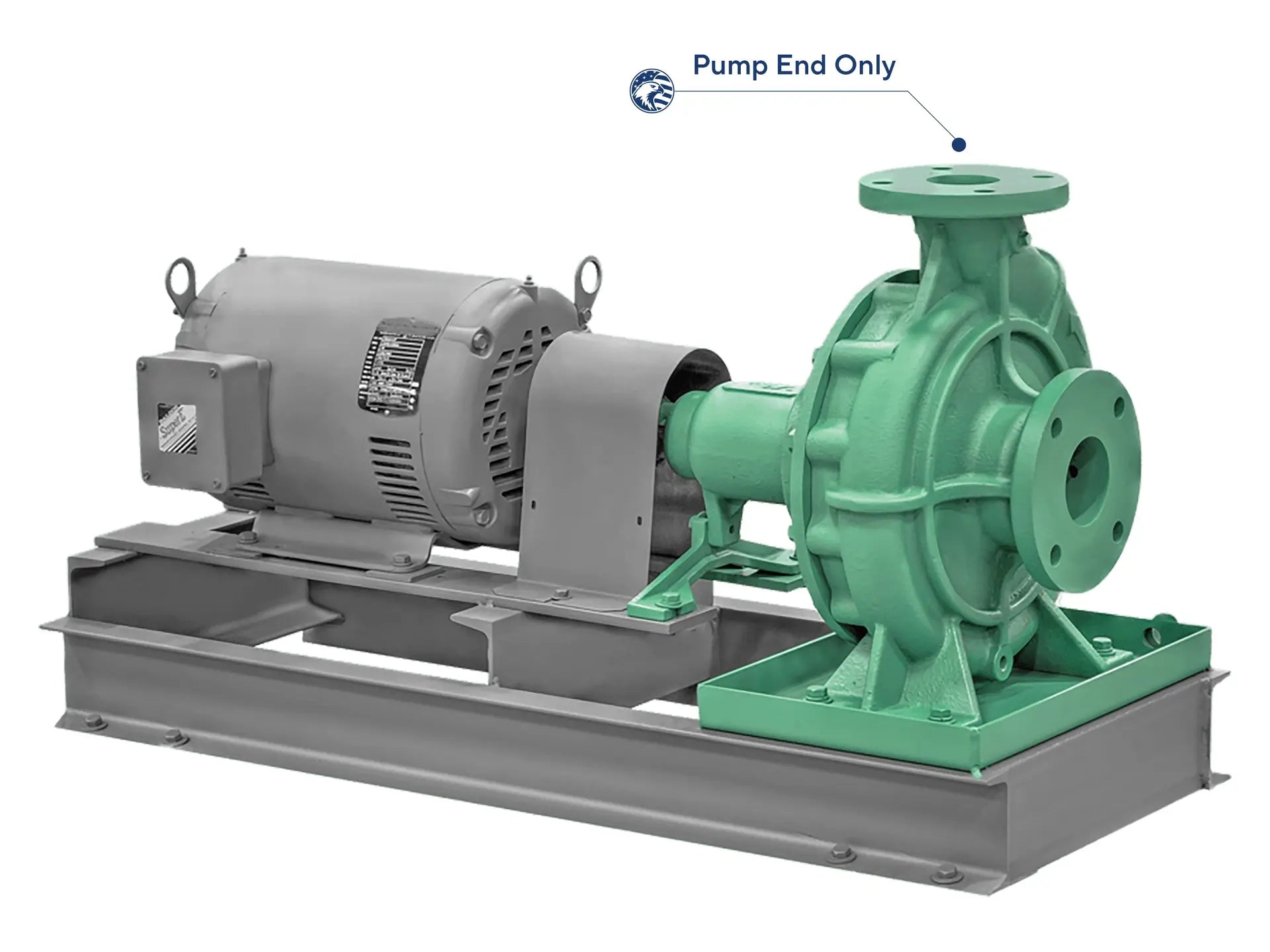

This product is supplied as a pump end only and does not include a base, coupler, guard, or motor components. The motor frame style is not applicable to this pump-only configuration. This model has a PEI value of 0.94.
