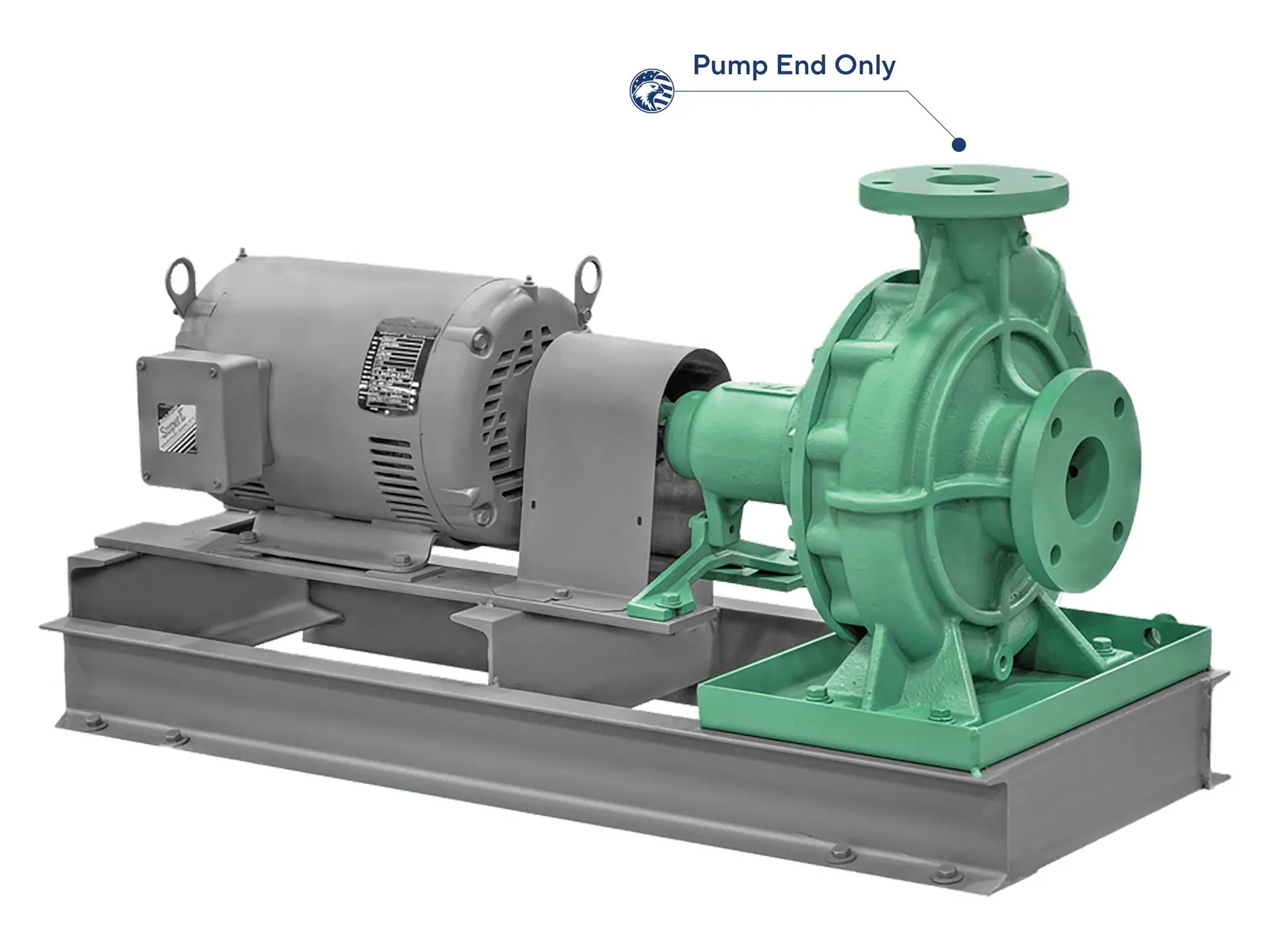

This Taco FI Series frame-mounted end suction pump features a 5" suction and 4" discharge with ANSI Class 125 flanges. The unit is constructed with a cast iron casing and a 7-1/4" nominal diameter bronze impeller. It utilizes a stainless steel shaft with a bronze shaft sleeve and a dry shaft design that prevents contact between the circulating fluid and the shaft. The mechanical seal consists of a ceramic seat, a carbon rotor, and EPT rubber, allowing for a temperature rating of 250°F. This unit is configured without a wear ring.
This pump operates at 1750 RPM and is compatible with a 7-1/2 HP motor in an ODP enclosure. The power requirement is 230-460V/60Hz/3PH with an across-the-line starting option. The motor meets MG1-12.55 premium efficiency standards and includes AEGIS shaft grounding. This assembly is supplied as a pump end only, excluding the base, coupler, and guard. The DOE PEI for this pump is 0.92.
