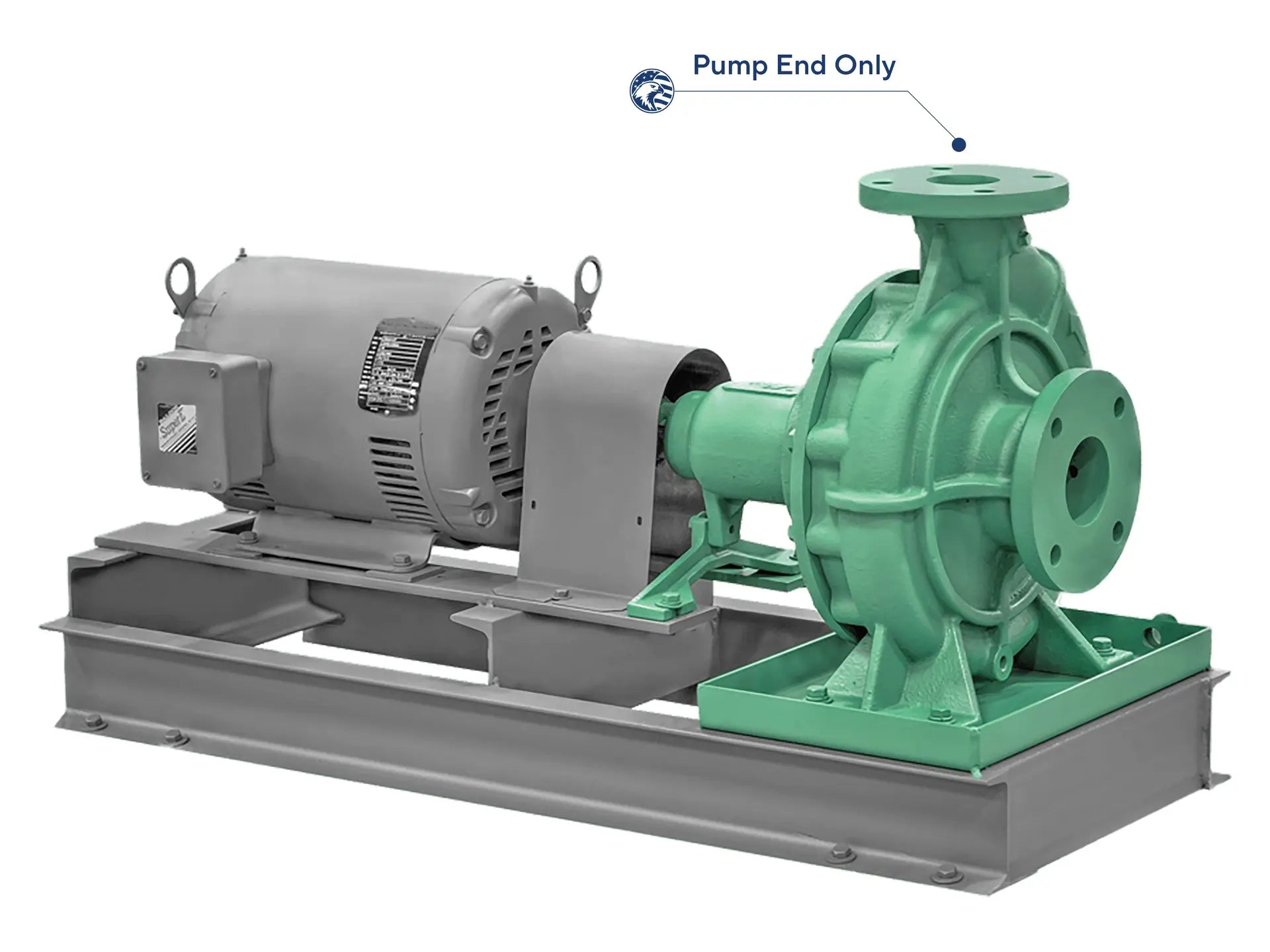

This Taco FI Series frame-mounted end suction pump features an 8" suction and 6" discharge with ANSI Class 250 flanges. The unit is constructed with a cast iron casing and a 9-1/2" nominal diameter bronze impeller. It utilizes a stainless steel shaft with a bronze shaft sleeve. The mechanical seal assembly includes a ceramic seat, carbon rotor, and EPT rubber components, with a temperature rating of 250 °F.
This pump is configured as a pump-end-only unit and does not include a motor, base, coupler, or guard. It is designed for 60Hz operation and has a PEI of 0.94.
