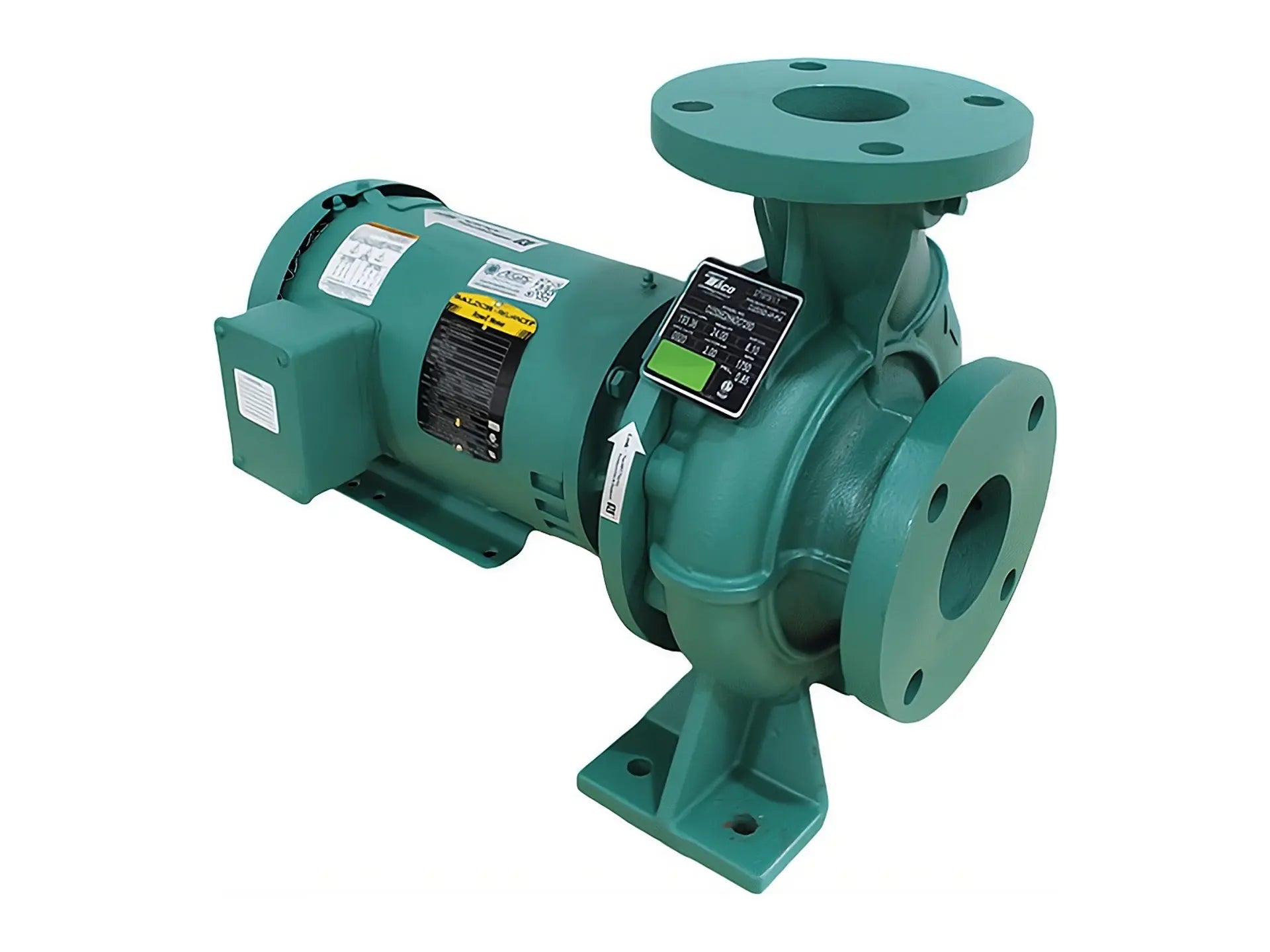

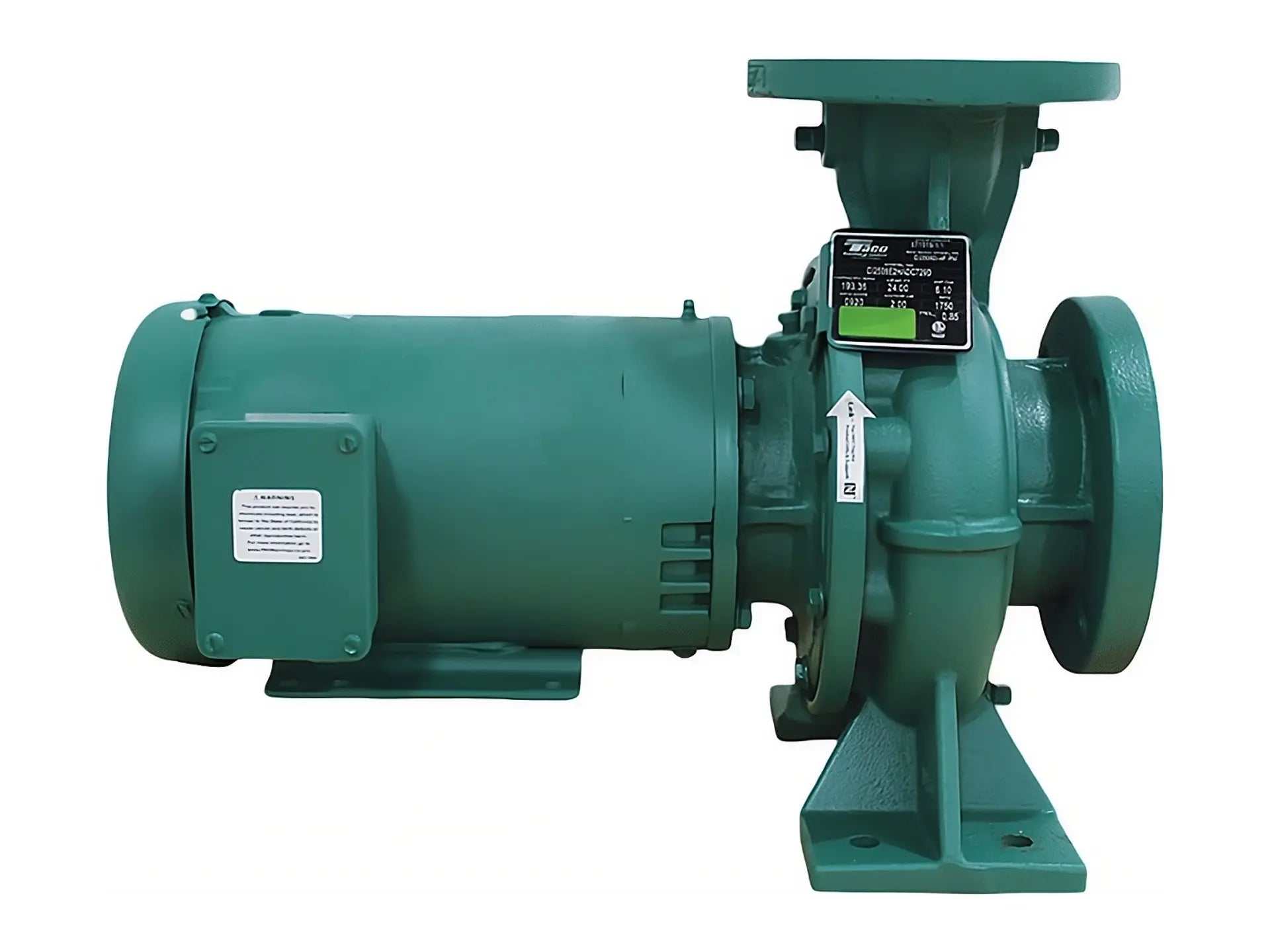

This Taco CI Series close coupled end suction pump features a 2" suction and 1-1/4" discharge. The unit includes a 7-1/4" bronze impeller housed within a cast iron casing with ANSI Class 125 flanges and a bronze wear ring. The pump incorporates a stainless steel slip-on shaft sleeve and a dry shaft design. The mechanical seal consists of a ceramic seat, carbon rotor, and EPT rubber. Flush seal line taps and pressure tappings on the suction and discharge connections are provided as standard features.
This pump is configured with a 1 HP Baldor TEFC motor operating at 1750 RPM. The motor is a 143 JM frame style with feet and utilizes a 200V, 60Hz, 3PH power supply with across the line starting. The motor meets NEMA Premium Efficiency standards per MG1-12.55 and includes AEGIS shaft grounding. This unit has a PEI of 0.78 and features a rear pullout design for maintenance.
