This Taco FI Series base-mounted end suction pump features an 8" suction connection and a 6" discharge connection with ANSI Class 125 flanges. The pump is equipped with an 11" nominal diameter bronze impeller and a cast iron casing. The mechanical seal assembly consists of a ceramic seat, carbon rotor, and EPT rubber, with a temperature rating of 250°F. The unit is constructed with a stainless steel shaft and a bronze shaft sleeve and does not include a wear ring.

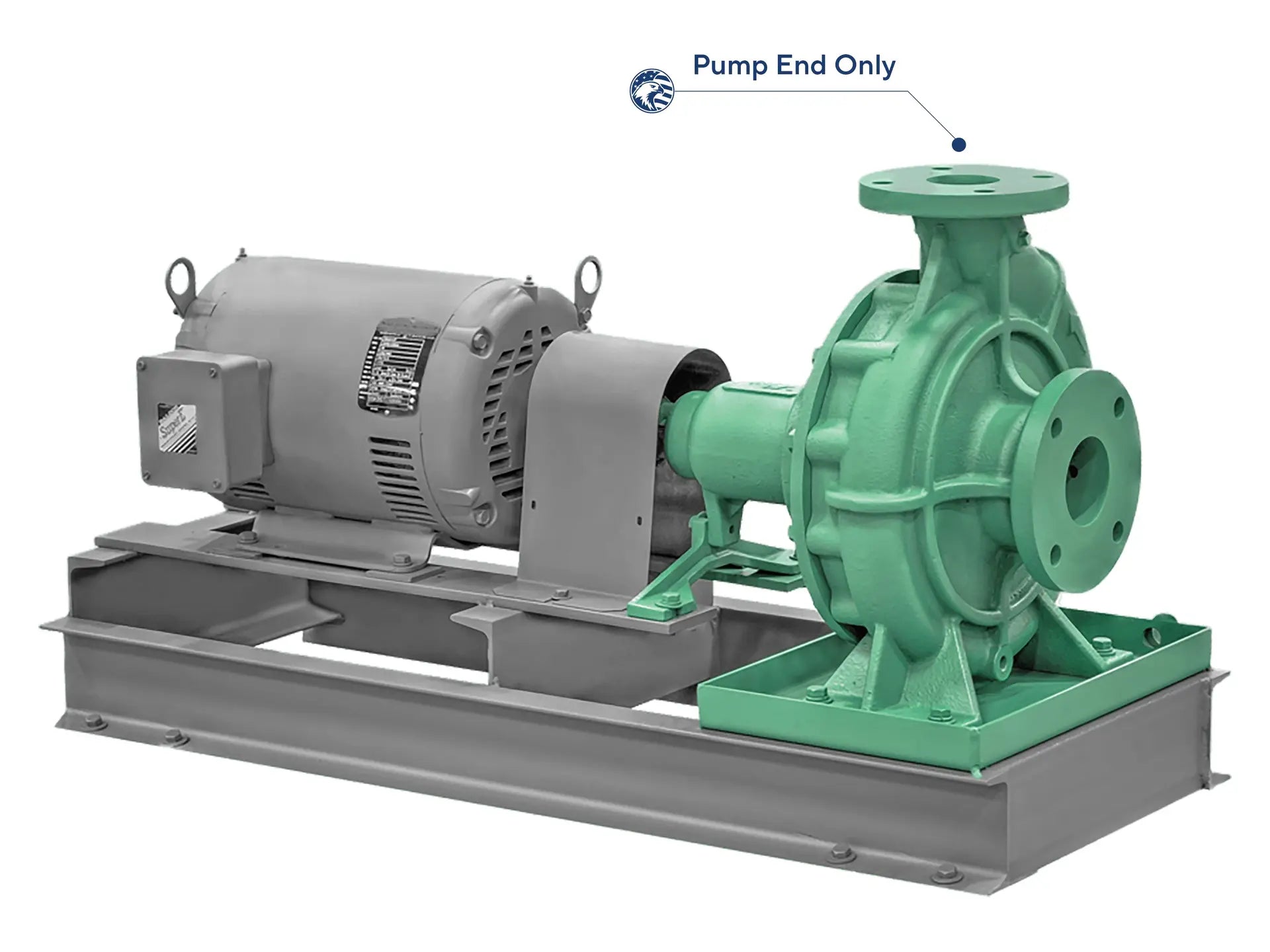

This product is supplied as a pump end only, excluding the motor, base, coupler, and guard. It is configured for 60Hz operation and carries a DOE PEI rating of 0.93. This unit does not include a NEMA motor frame.
