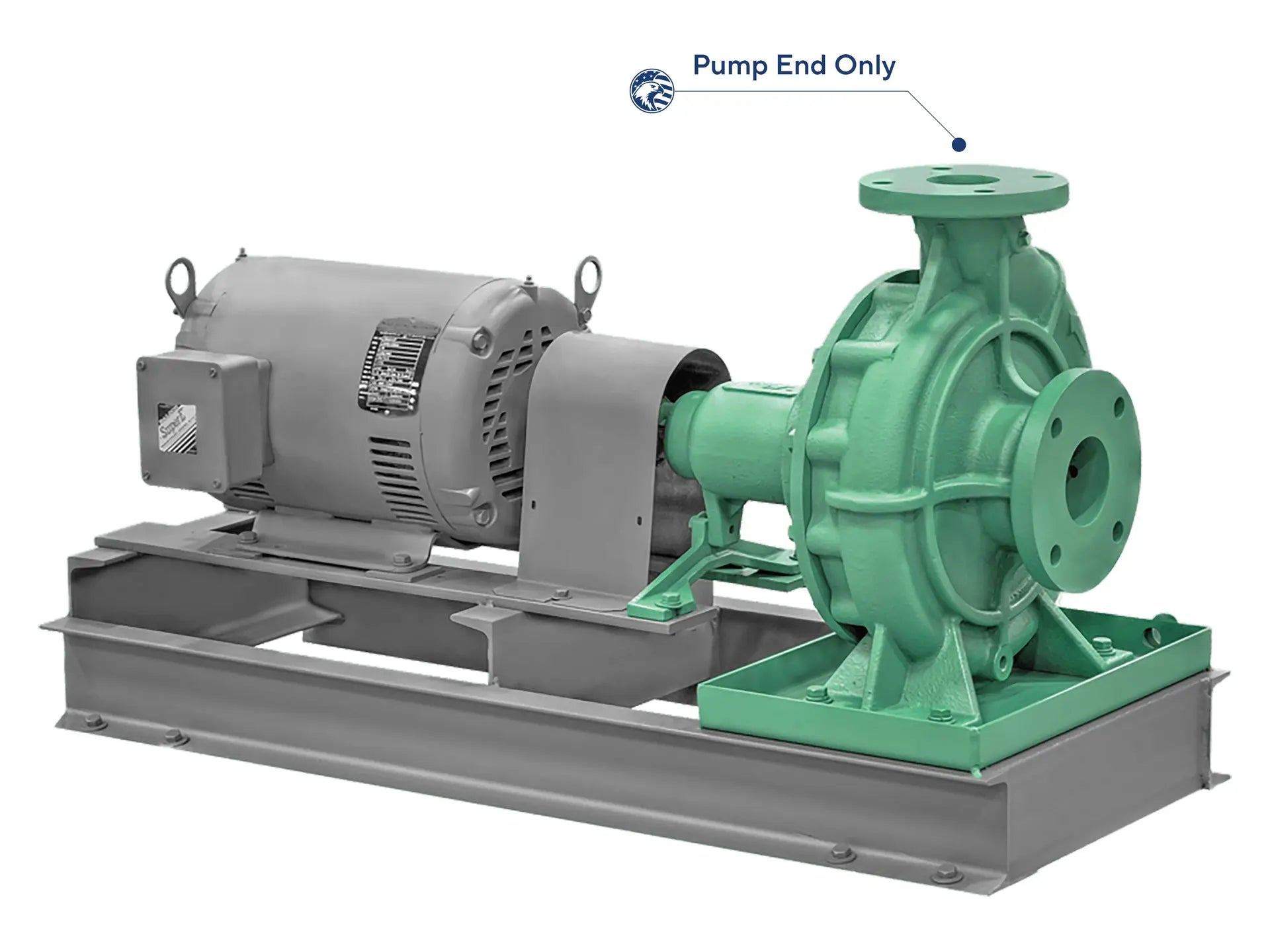

This Taco FI Series base-mounted end suction pump features a 4" suction and 3" discharge with ANSI Class 250 flanges. The unit includes a 13-1/2" nominal diameter bronze impeller and a cast iron casing with a bronze wear ring. The pump incorporates a stainless steel shaft, a bronze shaft sleeve, and a mechanical seal constructed with a silicon-carbide seat, a carbon rotor, and EPT rubber. It is suitable for clean water applications at temperatures up to 250°F.
The pump is configured with a NEMA motor frame and is designed to operate at 1450 RPM on 50Hz power. This product is supplied as a pump end only assembly and does not include a motor, base, coupler, or guard. It is manufactured for export and has a PEI rating of 0.9.
