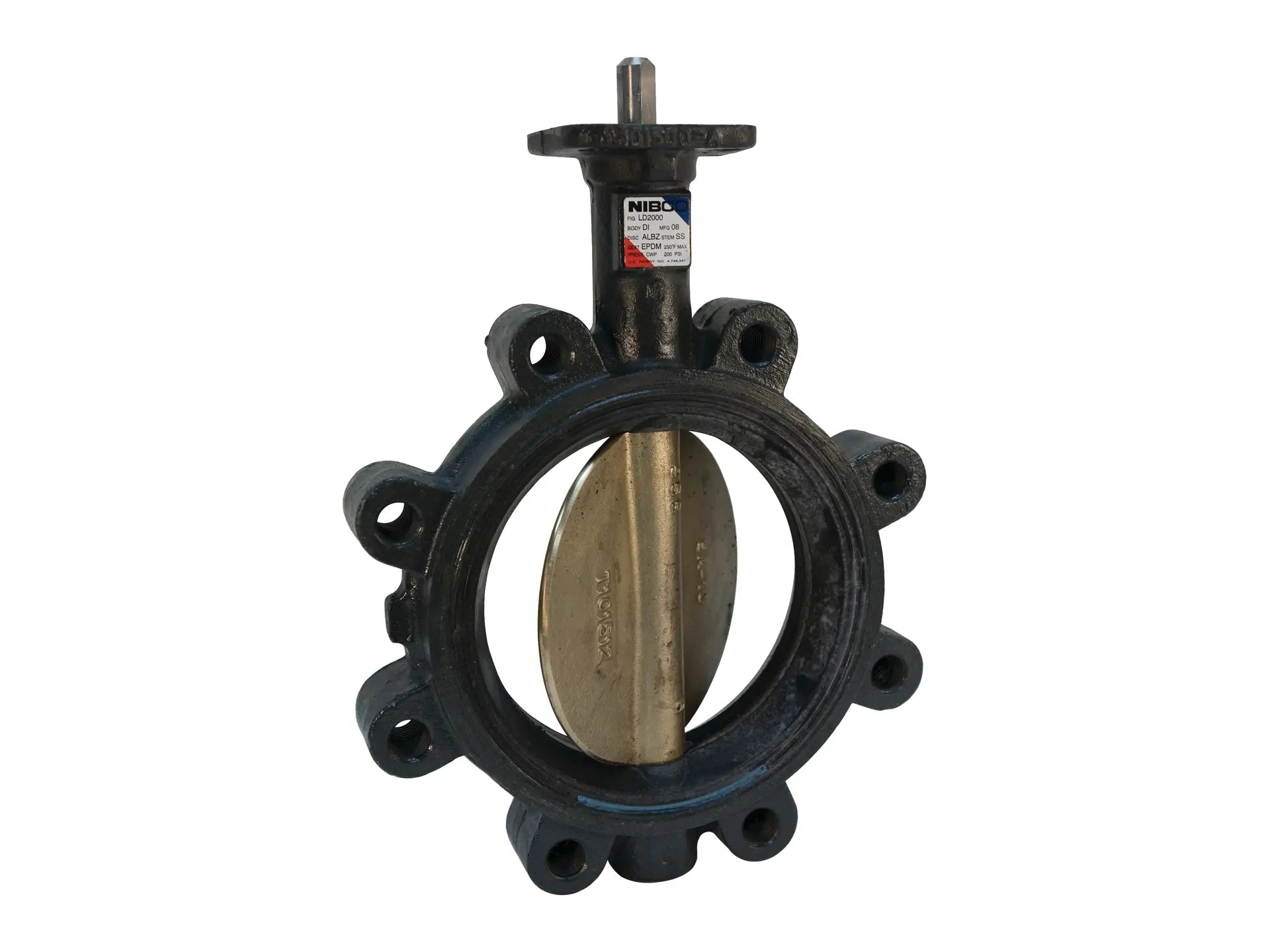

NIBCO LD-2000-5 2-1/2" Lug Ductile Iron Butterfly Valve NLG110E

SKU: NBC02-0045 Part Number: NLG110E Model: LD-2000-5

Price:
Sale price$633.95 Regular price$1,195.00

Save 47% Call 844-448-0880 for large volume pricing

Stock:
Typically Stocked - Call or Chat to confirm
 More payment options

Description

2-1/2" lug-style ductile iron butterfly valve with gear-operated handle rated for 225°F continuous and 250°F intermittent service. This valve features an EPDM molded-in seat liner, aluminum bronze disc, and stainless steel stem with copper bushings. Not recommended for steam service.

Features

  • Valve pressure rating 200 psi
  • 225°F continuous and 250°F intermittent service
  • Lug style
  • EPDM molded-in seat liner
  • Aluminum bronze disc
  • Stainless steel stem with copper bushings
  • Operating mechanism: Bare stem, infinite position plate and lock, lever lock, manual gear operator and pneumatic/electric automation
  • Lead-free
  • Not recommended for steam service
  • Designed to meet MSS SP-67
  • MSS SP-25 (markings)
  • Designed to meet API 609
  • U.S. Coast Guard Category A
  • California Health and Safety Code Section 116875
  • Vermont Act 193

Specifications

Manufacturer NIBCO
Part Number NLG110E
Model LD-2000-5
Valve Type Butterfly Valve
Connection 2-1/2" Lug
Material Ductile Iron
Material Specification ASTM A-53
Maximum Pressure 200 psi
Maximum Temperature 250°F
Handle Style Gear-Operated
Stem Material Stainless Steel
Seat Material EPDM
Disc Material Aluminum Bronze
Turns Operations Quarter-Turn
Potable Water Code LL Compliant NSF/ANSI 372
Length 13.61"
Width 11.01"
Height 6.85"
UPC 39923718464
CA Proposition 65 Warning Statement WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

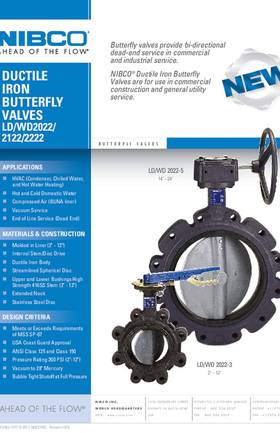

Documents

About NIBCO

NIBCO is a recognized manufacturer and brand leader of valves, fittings, and flow-control products.
