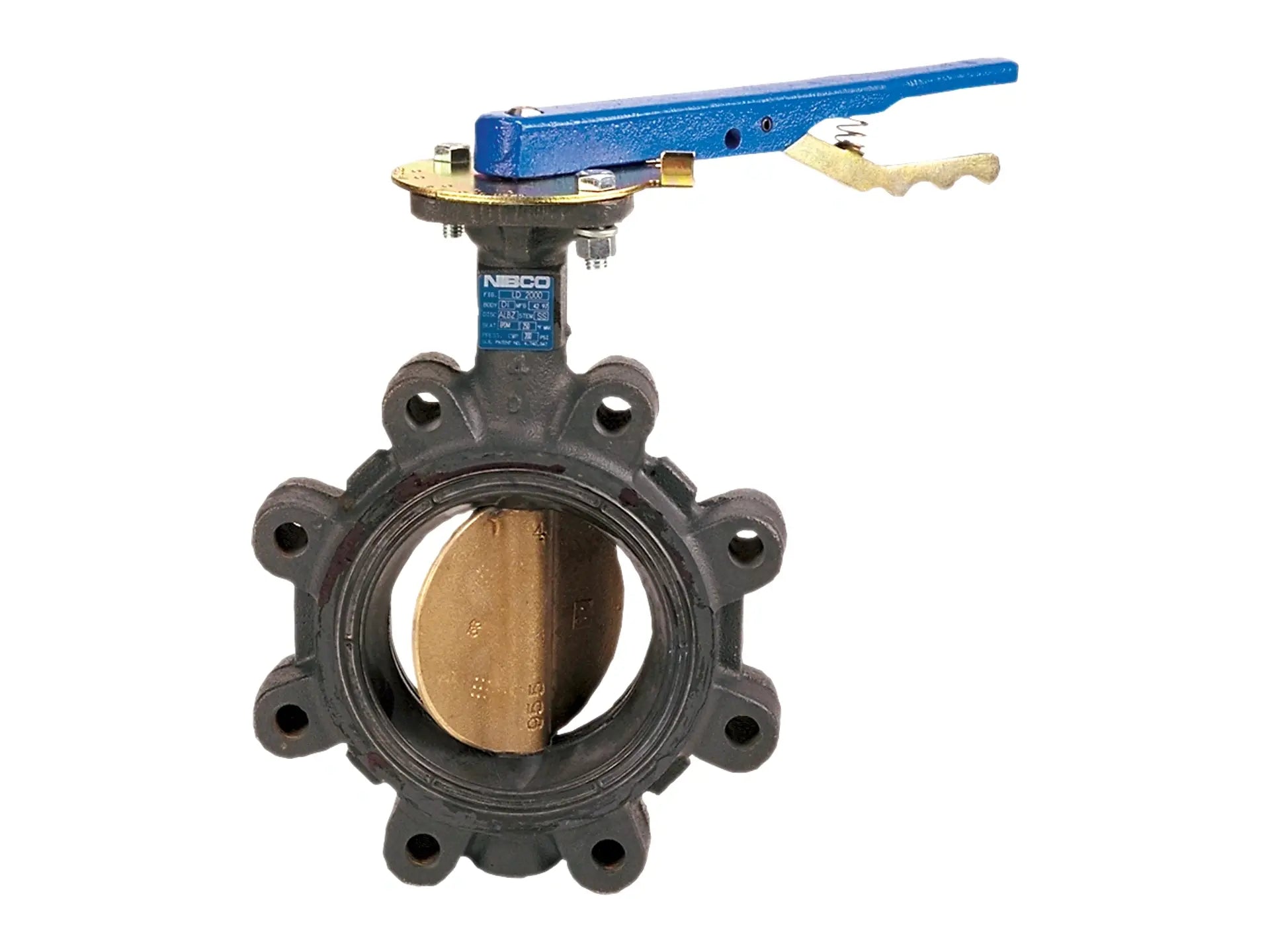

NIBCO LD-2122-0 12" Lug Ductile Iron Butterfly Valve NLG775N

SKU: NBC02-0950 Part Number: NLG775N Model: LD-2122-0

Price:
Sale price$3,189.95 Regular price$6,018.00

Save 47% Call 844-448-0880 for large volume pricing

Stock:
Typically Stocked - Call or Chat to confirm
 More payment options

Description

12" lug-style lead-free ductile iron butterfly valve with bare stem rated for 225°F continuous and 250°F intermittent service. This valve features an Buna-N molded-in seat liner, CF8M stainless steel disc, and stainless steel stem with copper bushings. Not recommended for steam service.

Features

  • Valve pressure rating 200 psi
  • 225°F continuous and 250°F intermittent service
  • Lug style
  • Buna-N molded-in seat liner
  • CF8M stainless steel disc
  • Stainless steel stem with copper bushings
  • Operating mechanism: Bare stem, infinite position plate and lock, lever lock, manual gear operator and pneumatic/electric automation
  • Lead-free
  • Not recommended for steam service
  • Designed to meet MSS SP-67
  • MSS SP-25 (markings)
  • Designed to meet API 609
  • U.S. Coast Guard Category A
  • California Health and Safety Code Section 116875
  • Vermont Act 193

Specifications

Manufacturer NIBCO
Part Number NLG775N
Model LD-2122-0
Valve Type Butterfly Valve
Connection 12" Lug
Material Ductile Iron
Lead-Free Yes
Maximum Pressure 200 psi
Maximum Temperature 250°F
Handle Style Bare Stem
Stem Material Stainless Steel
Seat Material Buna-N
Disc Material CF8M Stainless Steel
Turns Operations Quarter-Turn
Length 22.62"
Width 18.76"
Height 4.75"
UPC 39923396518
Country of Origin US
CA Proposition 65 Warning Statement WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Documents

About NIBCO

NIBCO is a recognized manufacturer and brand leader of valves, fittings, and flow-control products.
