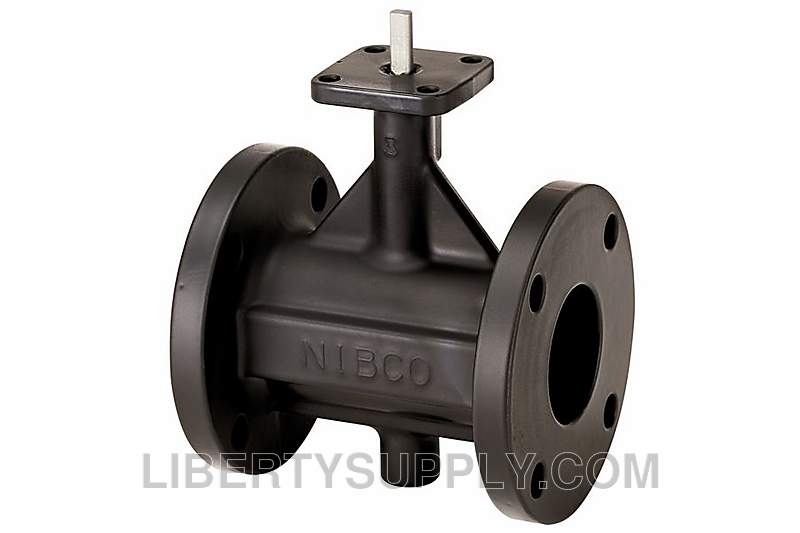

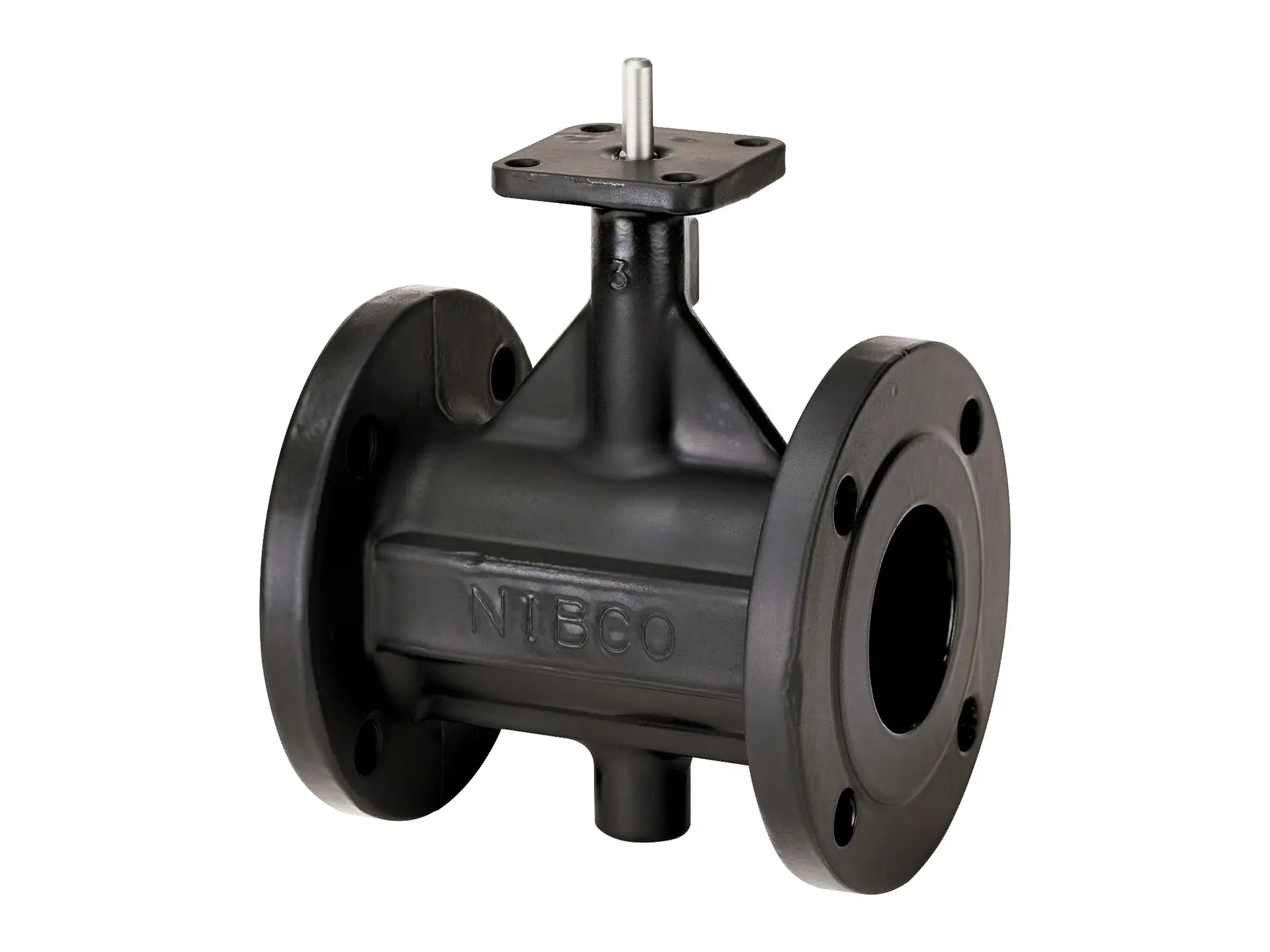

NIBCO FD-5765-0-PN-16 250mm Flgd Ductile Iron Butterfly Valve NLFT01M

SKU: NBC02-1295 Part Number: NLFT01M Model: FD-5765-0-PN-16

Price:
Sale price$6,426.95 Regular price$11,580.00

Save 44% Call 844-448-0880 for large volume pricing

Stock:
Typically Stocked - Call or Chat to confirm
 More payment options

Description

Please note this item is made to order and additional lead-times may apply.

250mm flanged ductile iron butterfly valve with an EPDM encapsulated ductile iron disc, stainless steel stem with metal bushings, splined drive, extended neck, and bare stem. Not recommended for steam service.

Features

  • Valve pressure rating 285 psi
  • Max temperature rating 200°F
  • Flanged style
  • EPDM encapsulated ductile iron disc
  • Stainless steel stem with metal bushings
  • Splined drive
  • Extended neck
  • Operating mechanism: Bare stem, infinite position plate and lock, lever lock, manual gear operator
  • Not recommended for steam service
  • Designed to meet MSS SP-67
  • MSS SP-25 (markings)
  • Certified to NSF/ANSI/CAN 372-2020, Drinking Water System Components – Health Effects

Specifications

Manufacturer NIBCO
Part Number NLFT01M
Model FD-5765-0-PN-16
Valve Type Butterfly Valve
Connection 250mm Flanged
Material Ductile Iron
Maximum Pressure 285 psi
Maximum Temperature 200°F
Handle Style Bare Stem
Stem Material Stainless Steel
Seat Material EPDM
Turns Operations Quarter-Turn
UPC 39923779236
Country of Origin US
CA Proposition 65 Warning Statement WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

About NIBCO

NIBCO is a recognized manufacturer and brand leader of valves, fittings, and flow-control products.
