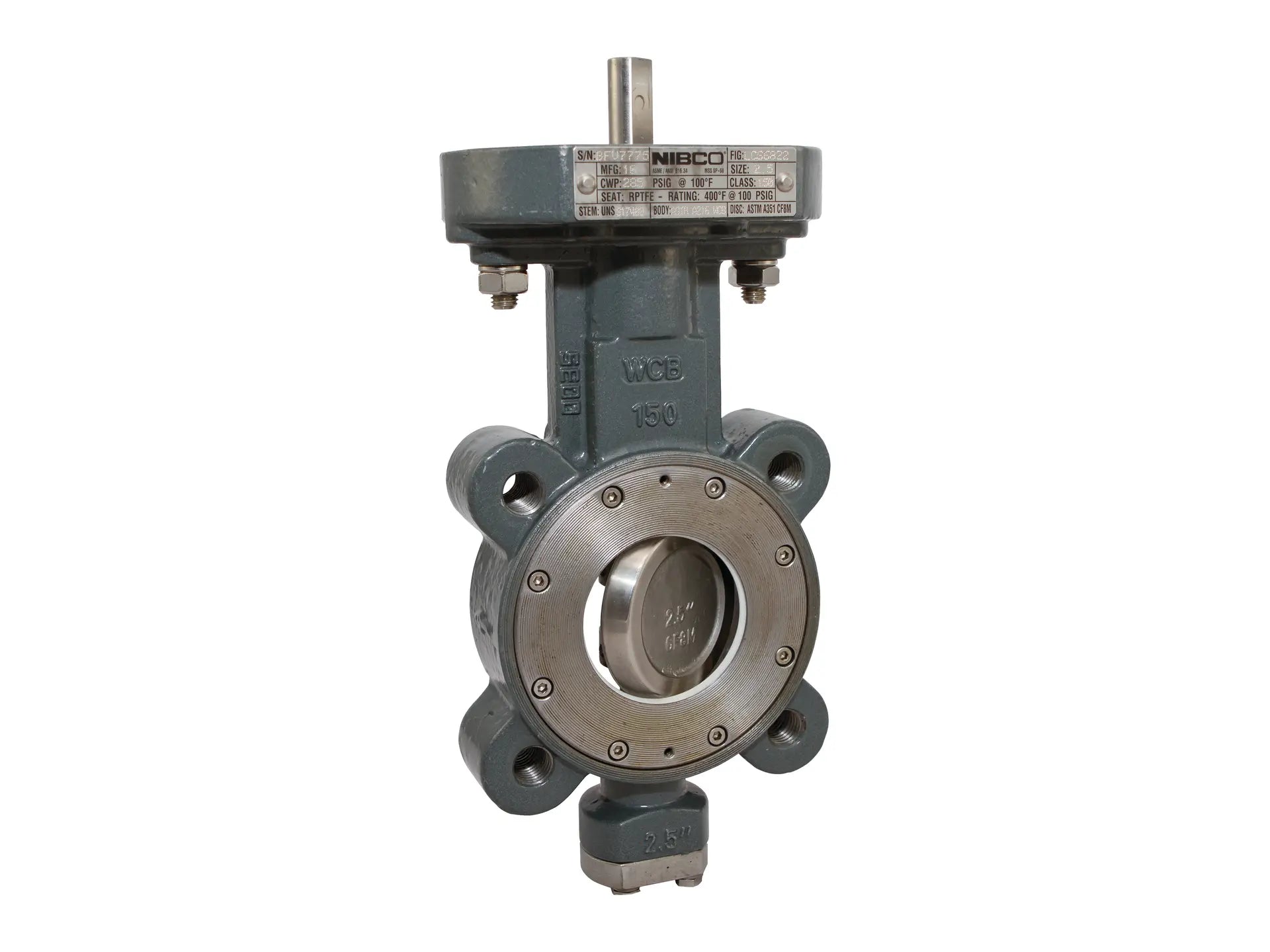

NIBCO LCS-6822-5 18" Lug Carbon Steel Butterfly Valve NLL205V

SKU: NBC02-2145 Part Number: NLL205V Model: LCS-6822-5

Price:
Sale price$17,789.95 Regular price$30,672.00

Save 42% Call 844-448-0880 for large volume pricing

Stock:
Typically Stocked - Call or Chat to confirm
 More payment options

Description

18" lug-style carbon steel, high-performance butterfly valve. This valve features a gear-operated handle, glass reinforced PTFE seats, blowout-proof stem, stainless steel disc and stem, integrally cast disc stop, dual offset design, and direct mount actuation.

Features

  • Valve pressure rating 285 psi
  • Maximum operating temperature 400°F at 100 psi
  • Lug style
  • Glass reinforced PTFE seats
  • Blowout-proof stem
  • Stainless steel disc and stem
  • Integrally cast disc stop
  • Dual offset design
  • Direct mount actuation
  • Operating mechanism: Bare stem, infinite position plate and lock, lever lock, manual gear operator and pneumatic/electric automation
  • MSS SP-68 (design) 100% production tested
  • MSS SP-25 (markings)
  • API 609 seat pressure/temperature ratings/blow-out proof stem
  • ASME/ANSI B16.34A, body pressure/temperature ratings
  • ASME/ANSI B16.5 flange dimensions
  • ISO 5211 EN 12116 actuator mounting top works
  • ANSI Class 150

Specifications

Manufacturer NIBCO
Part Number NLL205V
Model LCS-6822-5
Valve Type Butterfly Valve
Application High-Performance
Connection 18" Lug
Material Carbon Steel
Maximum Pressure 285 psi
Maximum Temperature 400°F
Handle Style Gear-Operated
Stem Design Blowout-Proof
Stem Material Stainless Steel
Seat Material Glass Reinforced PTFE
Disc Material Stainless Steel
Turns Operations Quarter-Turn
Potable Water Code LL Compliant (not NSF/ANSI 372)
Length 44.48"
Width 25"
Height 19.88"
UPC 39923315120
Country of Origin US
CA Proposition 65 Warning Statement WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

About NIBCO

NIBCO is a recognized manufacturer and brand leader of valves, fittings, and flow-control products.
