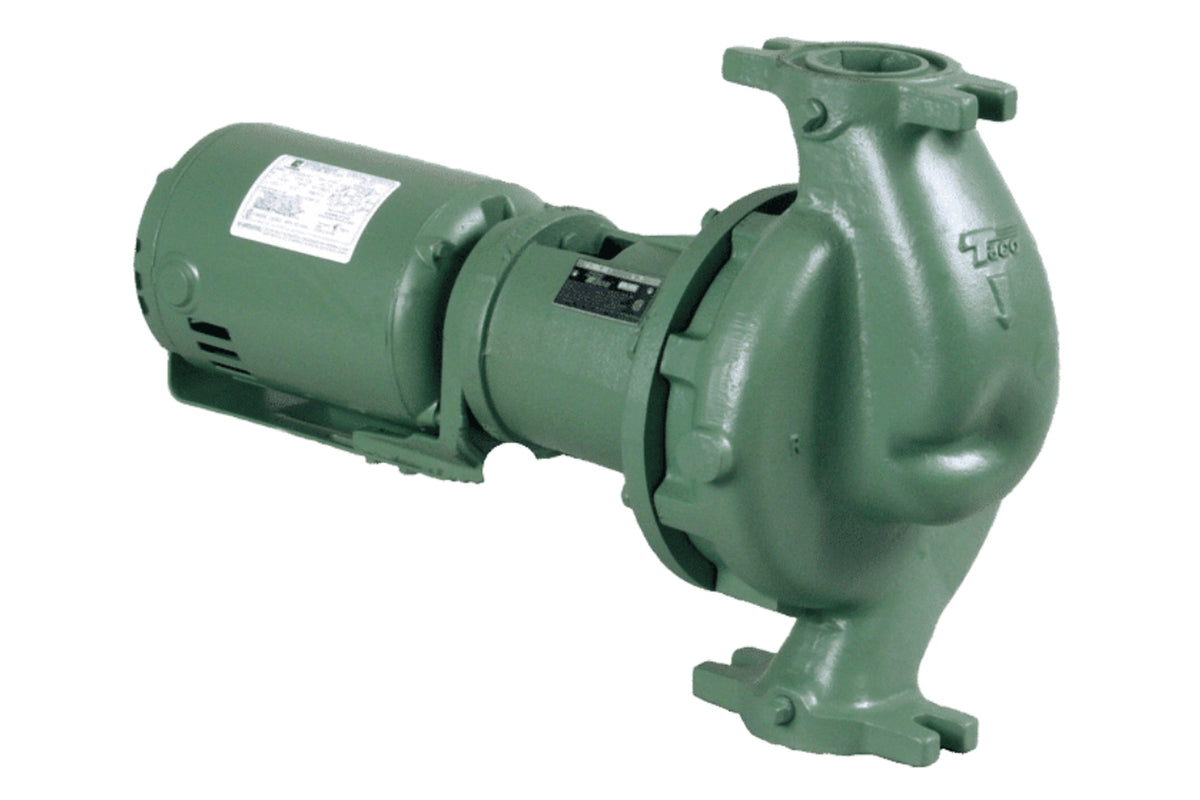

This in-line pump has a cast iron casing with 2-inch flanged connections. The internal assembly includes a replaceable bearing cartridge that isolates bearings from system fluid temperatures, paired with a Type 21 mechanical seal. This seal assembly includes a ceramic seat, carbon mating ring, EPT elastomers, and stainless steel spring and retainer components. The standardized cartridge assembly allows for common service components across the line and contains permanently sealed, grease-lubricated ball bearings for reliability during operation.
The unit has a 1/2 HP motor at 1750 RPM with an ODP enclosure and a 3PH power supply. Maintenance-free operation is supported by permanently sealed, grease-lubricated motor ball bearings. Utilizing a rear pull-out design, the assembly permits complete removal of the motor and rotating components for servicing without disturbing the connected piping layout.
