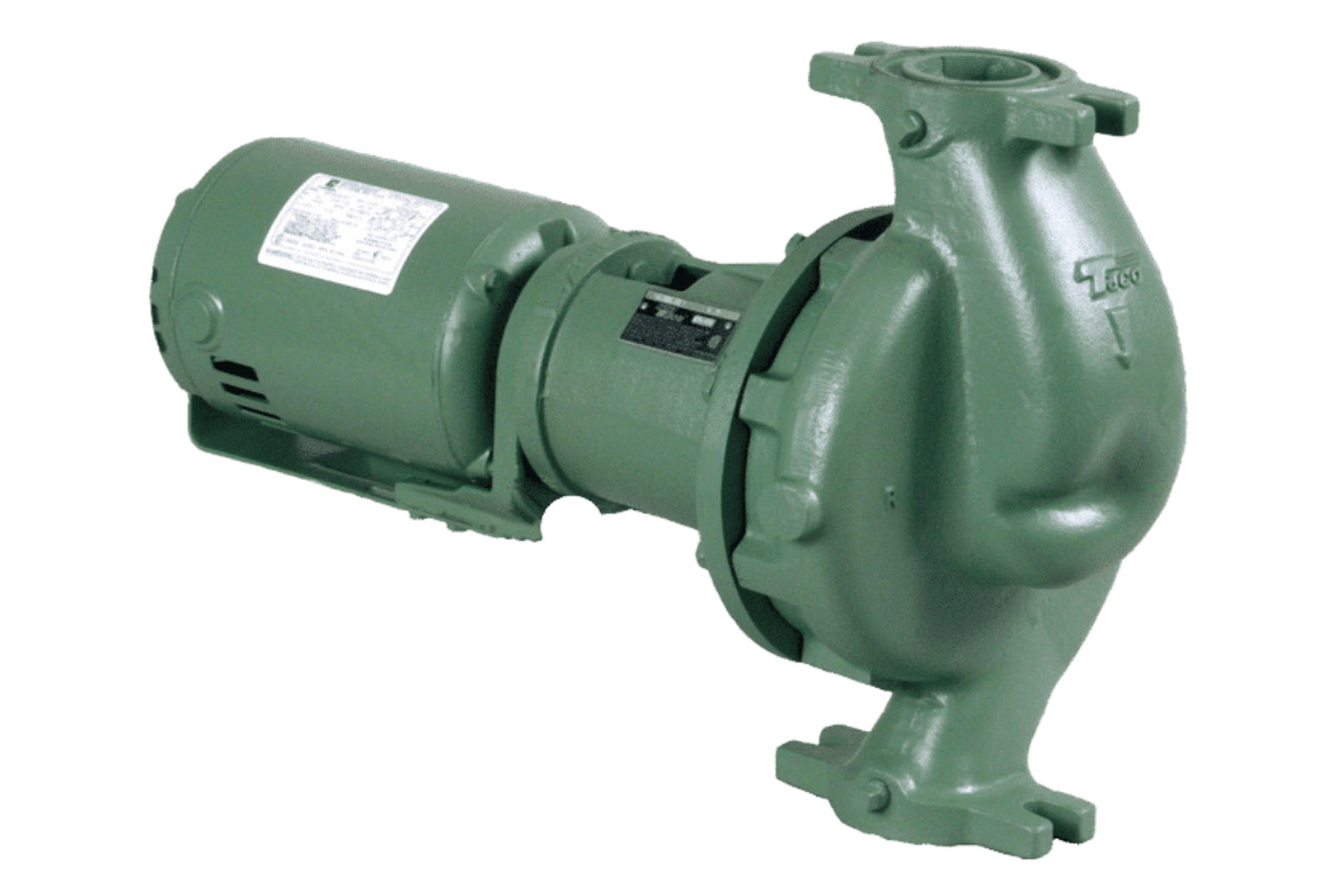

This in-line pump has a cast iron casing with 2-inch flanged connections for integration into commercial piping systems. The internal hydraulic assembly includes a replaceable bearing cartridge, which isolates the rotating components from system fluid temperatures. The unit uses a mechanical seal assembly consisting of a ceramic seat, carbon mating ring, EPT elastomers, and stainless steel spring and retainer components. This standardized cartridge construction allows for the use of common service parts across the entire product line.
The motor is a 3/4 HP, 1750 RPM unit with an ODP enclosure, configured for a 3PH power supply. Maintenance-free operation is supported by permanently sealed, grease-lubricated motor ball bearings. Utilizing a rear pull-out design, the assembly permits complete removal of the motor and rotating components for servicing without disturbing the connected piping layout.
