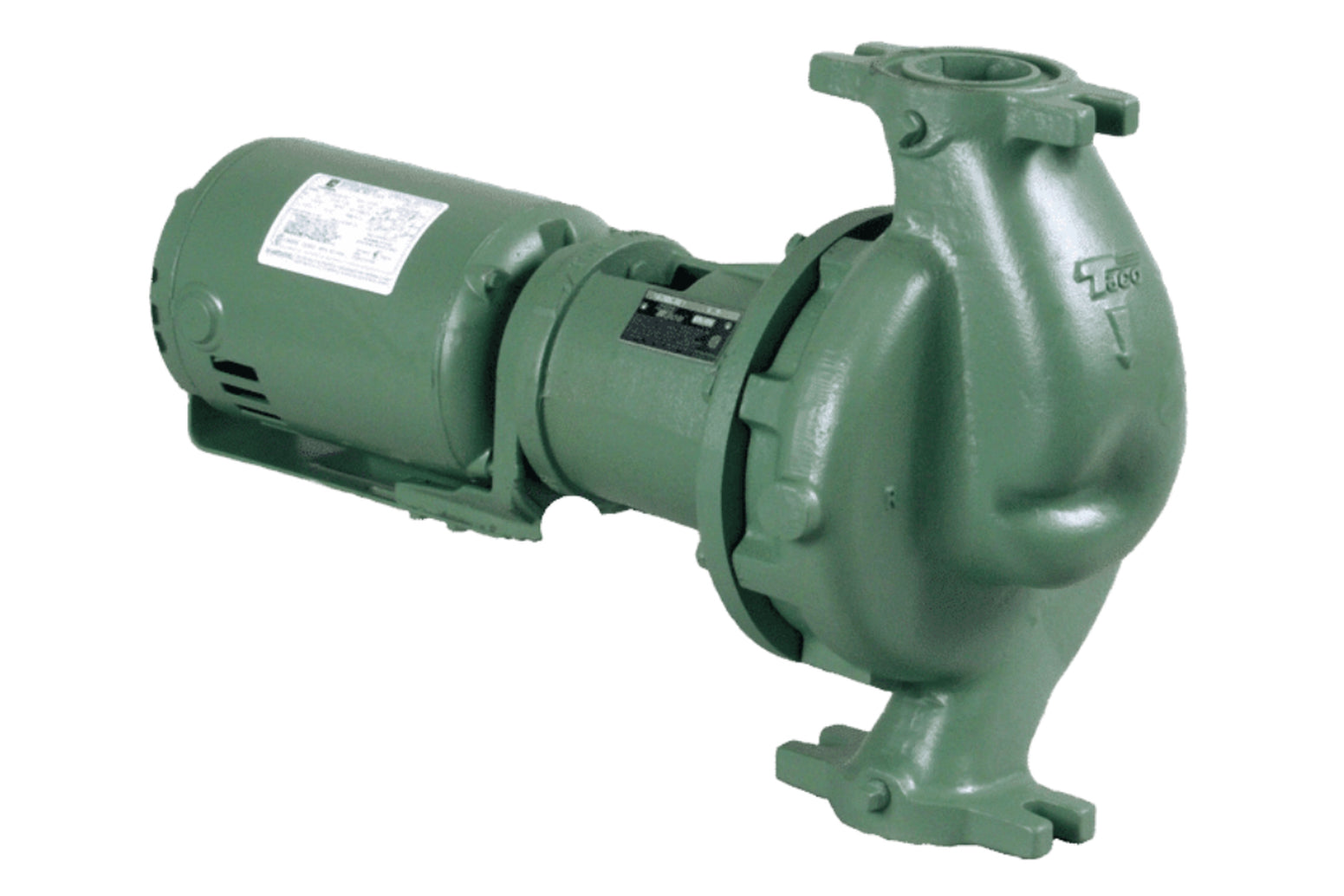

This in-line pump has a 2-inch flanged cast iron casing. The construction includes a replaceable bearing cartridge assembly that isolates the bearings from system fluid temperatures. A Type 21 mechanical seal assembly resides within the pump, consisting of a ceramic seat, a carbon mating ring, EPT elastomers, and stainless steel spring and retainer components. This standardized arrangement simplifies routine maintenance requirements and allows for common service components across the pump assembly.

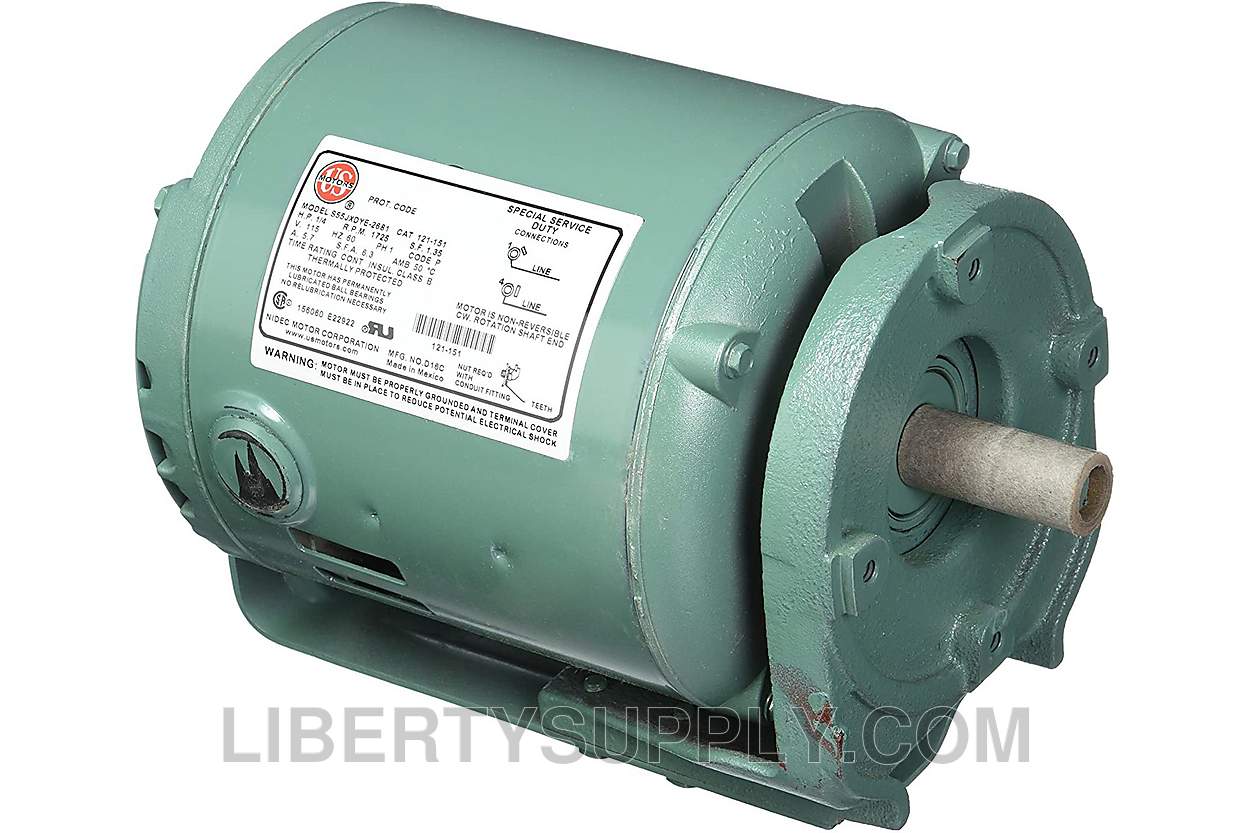

The motor has a 1-1/2 HP rating, an operating speed of 1750 RPM, and operates on a 3PH power supply. Maintenance-free operation is supported by permanently sealed, grease-lubricated motor ball bearings. Utilizing a rear pull-out design, the assembly permits complete removal of the motor and rotating components for servicing without disturbing the connected piping layout.
