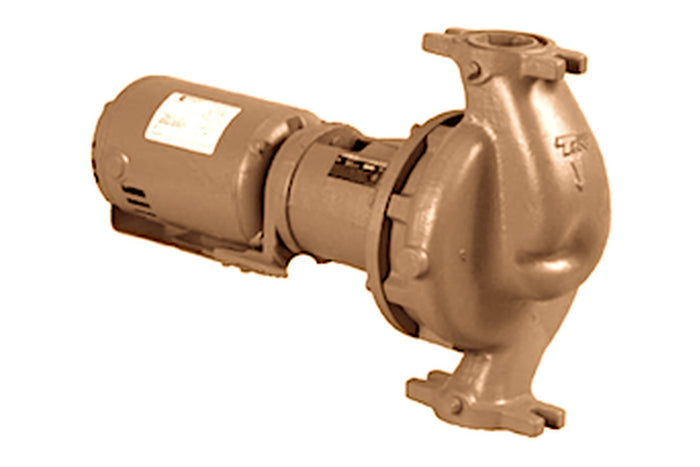

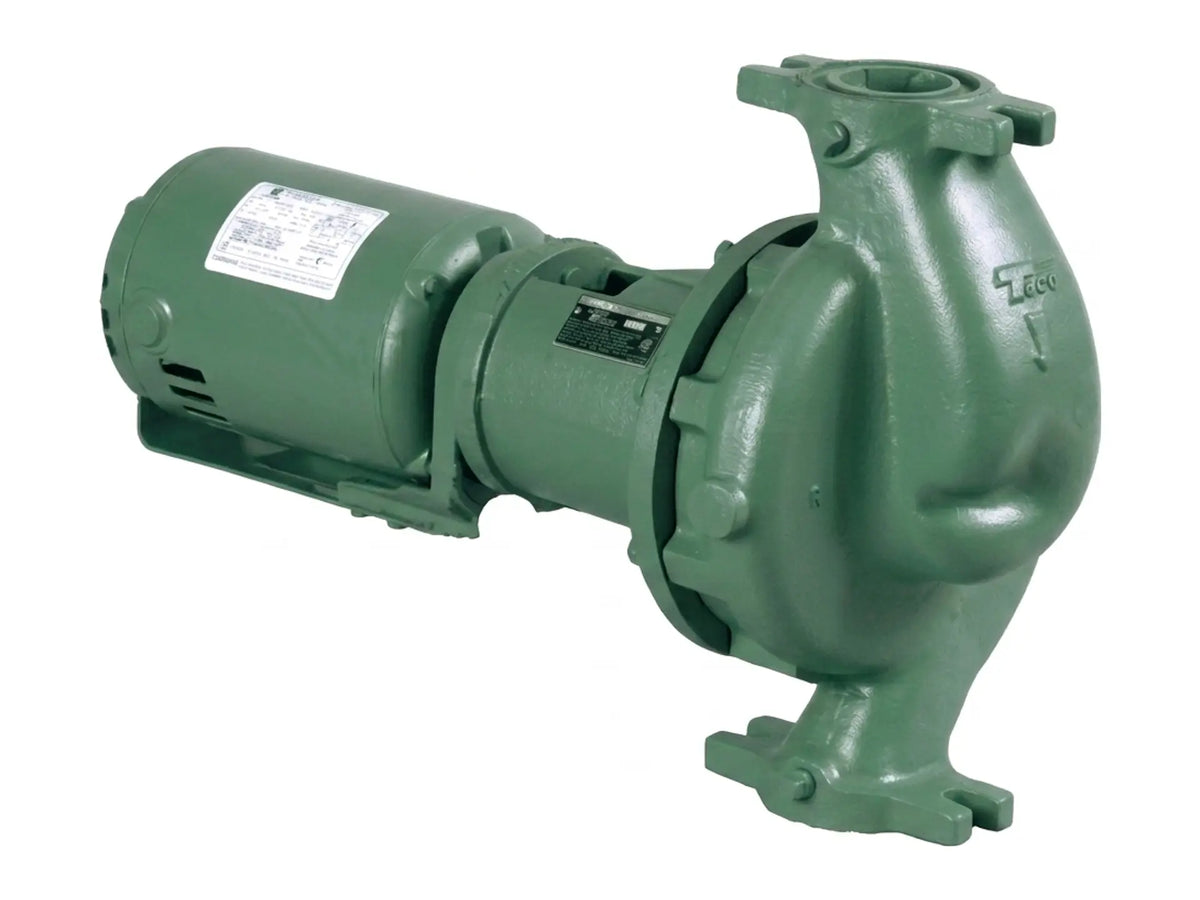

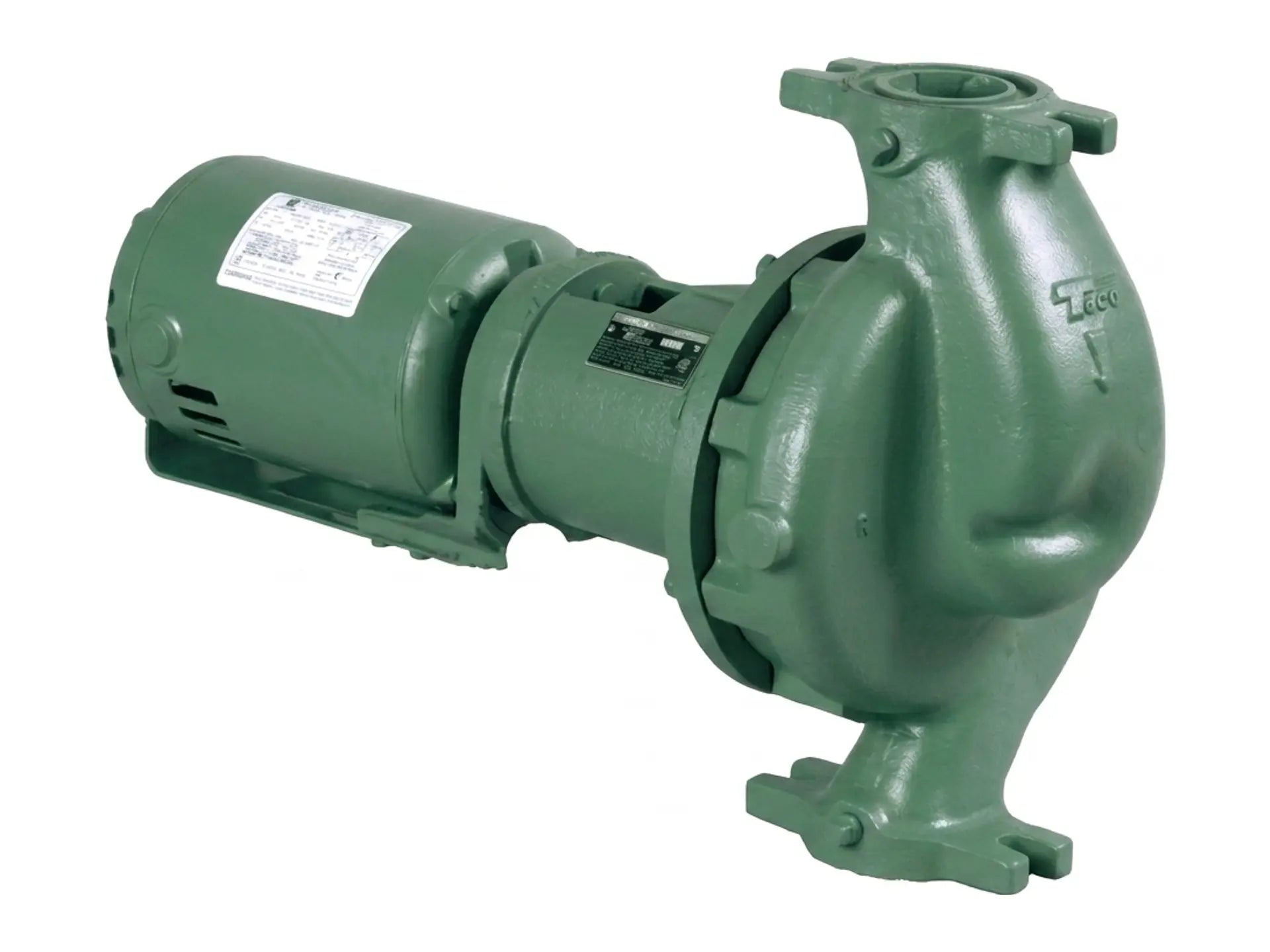

This in-line pump has 1-1/2" flanged connections and stainless steel construction. It includes a replaceable bearing cartridge assembly that isolates the bearings from system fluid temperatures. The internal rotating assembly uses a Type 21 mechanical seal, which has a ceramic seat, carbon mating ring, EPT elastomers, and stainless steel spring and retainer components. This arrangement maintains a standardized cartridge design, which allows for common service components across the product line. The construction supports reliable operation within standard commercial hydronic piping applications.
The unit has a 1/3 HP motor running at 1750 RPM with an ODP enclosure and operates on a 1PH power supply. Maintenance-free operation is supported by permanently sealed, grease-lubricated motor ball bearings. Utilizing a rear pull-out design, the assembly permits complete removal of the motor and rotating components for servicing without disturbing the connected piping layout.
