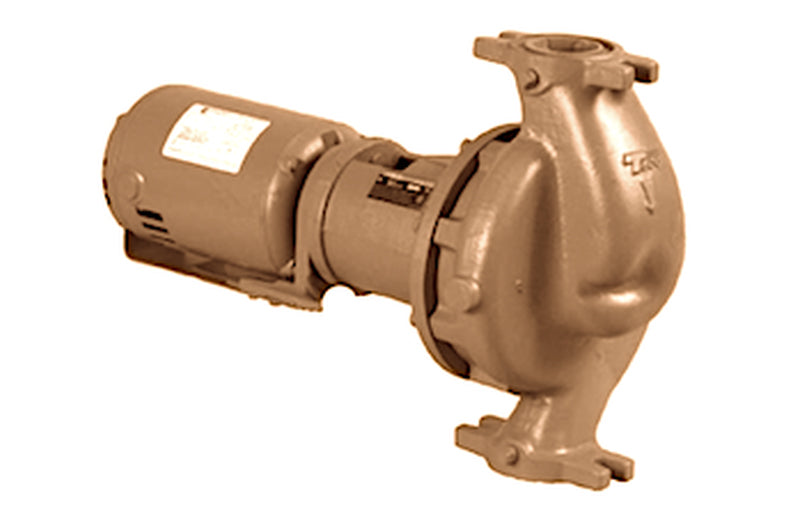

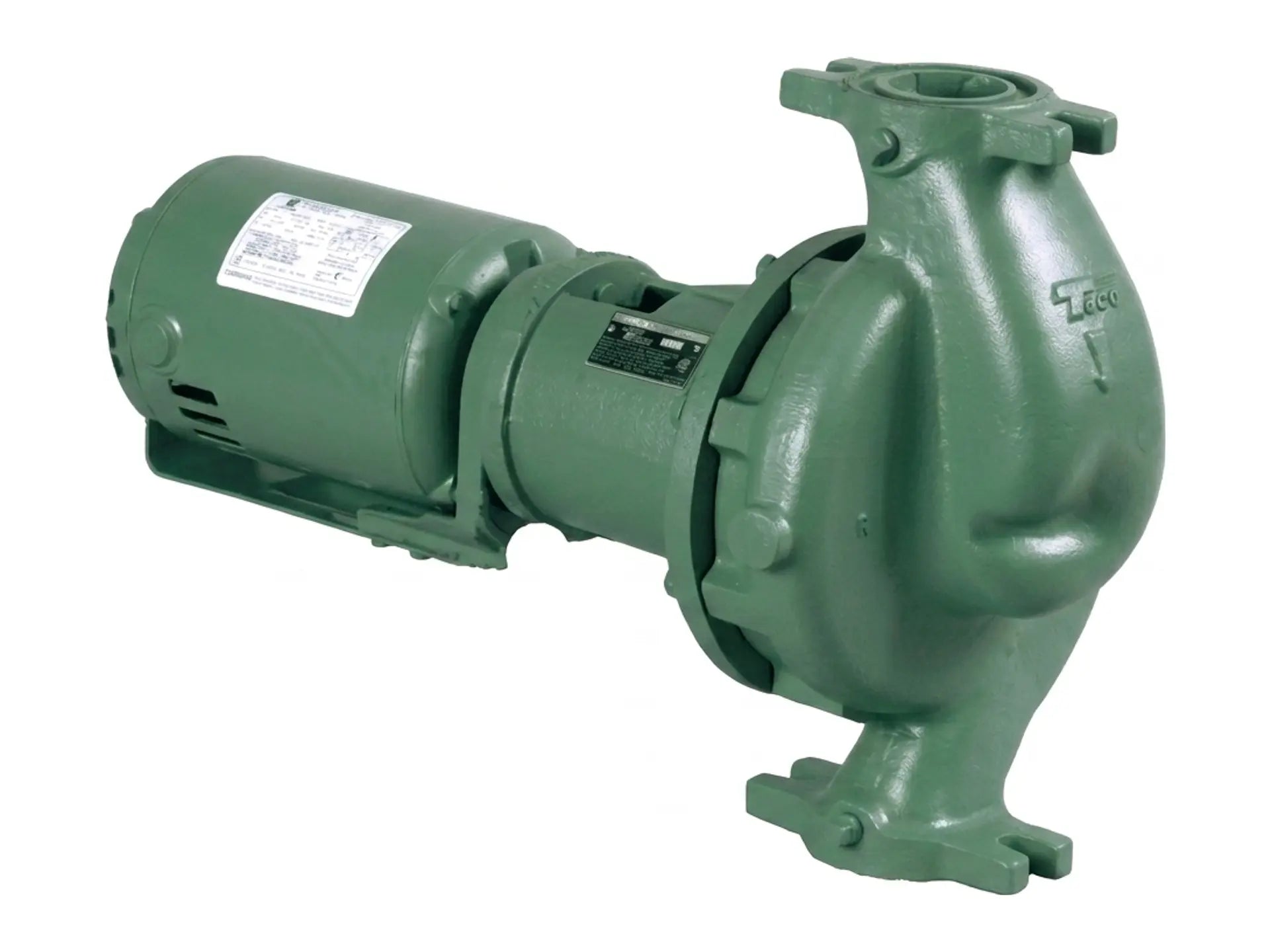

This in-line pump has 2" flanged connections with stainless steel construction for the casing and impeller. The unit uses a replaceable bearing cartridge assembly that isolates the bearings from system fluid temperatures to improve service longevity. A mechanical seal assembly consists of a ceramic seat, carbon mating ring, and EPT elastomers, which simplifies maintenance requirements across the unit. The standardized cartridge arrangement combined with this seal construction allows for common service components to maintain consistent performance levels within the hydraulic circuit.
The motor is a 3/4 HP, 1750 RPM, ODP enclosure unit with a 1PH power supply. Maintenance-free operation is supported by permanently sealed, grease-lubricated motor ball bearings. Utilizing a rear pull-out design, the assembly permits complete removal of the motor and rotating components for servicing without disturbing the connected piping layout.
