This Taco Shell & Tube Heat Exchanger, model E14208S, is a single-heat exchanger designed to transfer heat between steam and liquid. With a nominal shell diameter of 14 inches, it features two tube passes and a tube bundle length of 48 inches. The tubes are made of copper, measuring 3/4 OD x .035 (20 Ga) wall thickness and are SB75 grade. The heat transfer medium for this exchanger is steam to liquid. It has a connection type of channel - flanged - without cover and is equipped with a steel tube plate and steel separators. This heat exchanger can operate at a working pressure of up to 150 psi.
Taco Shell & Tube Heat Exchangers Overview
Taco Shell & Tube Heat Exchangers are equipment used in HVAC systems and various industrial applications for the purpose of transferring heat between two fluids. These exchangers are composed of a large outer shell and an inner tube bundle. The arrangement allows one fluid to flow through the tubes while a second fluid circulates outside the tubes but within the shell. As they pass each other, heat exchange occurs, with the fluid inside the tubes either gaining or losing heat from the fluid in the shell. Taco Shell & Tube Heat Exchangers are noted for their durable construction, effectiveness in heat transfer, and ease of maintenance, including the straightforward process of replacing the tube bundle.

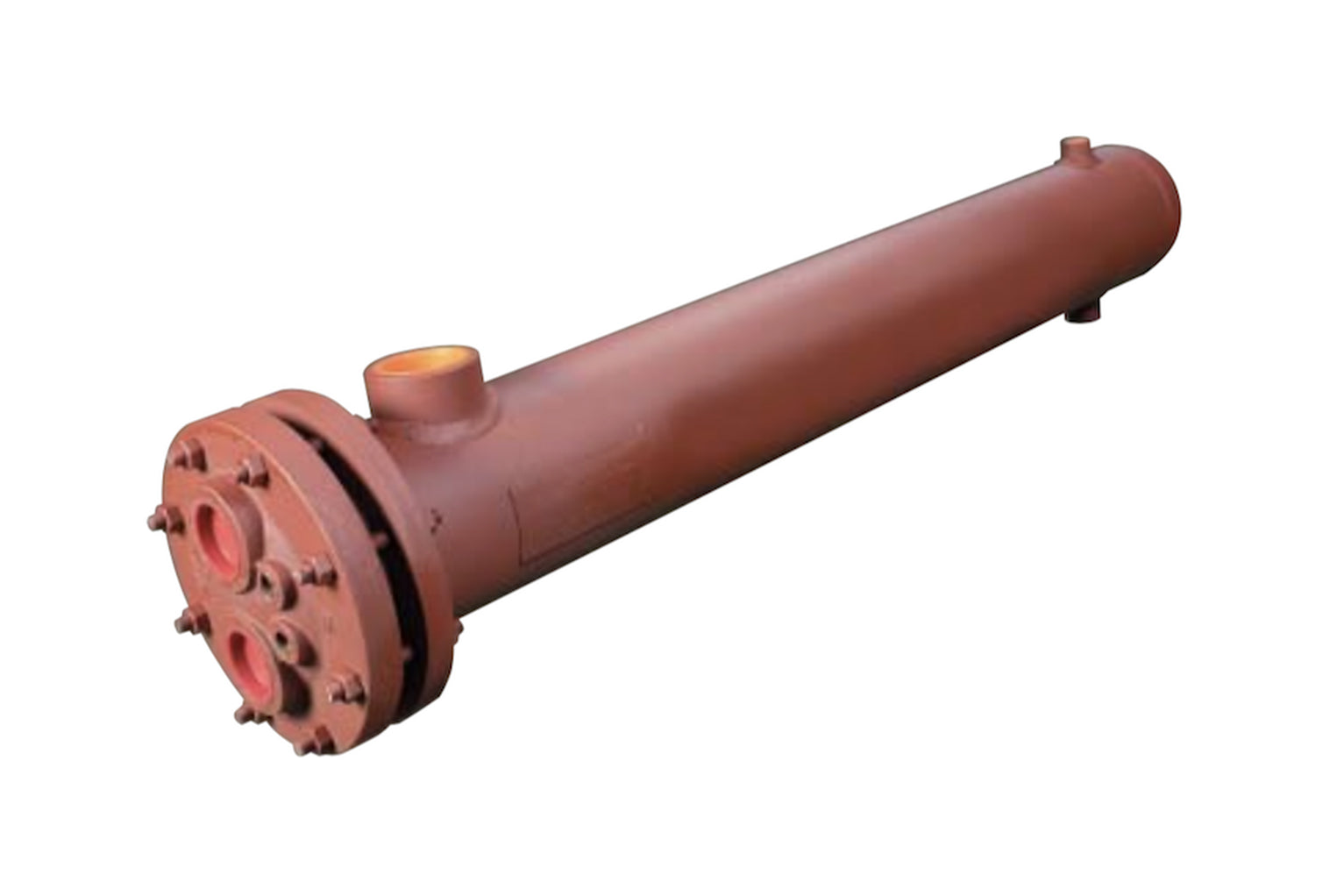

Note: product image is generic
