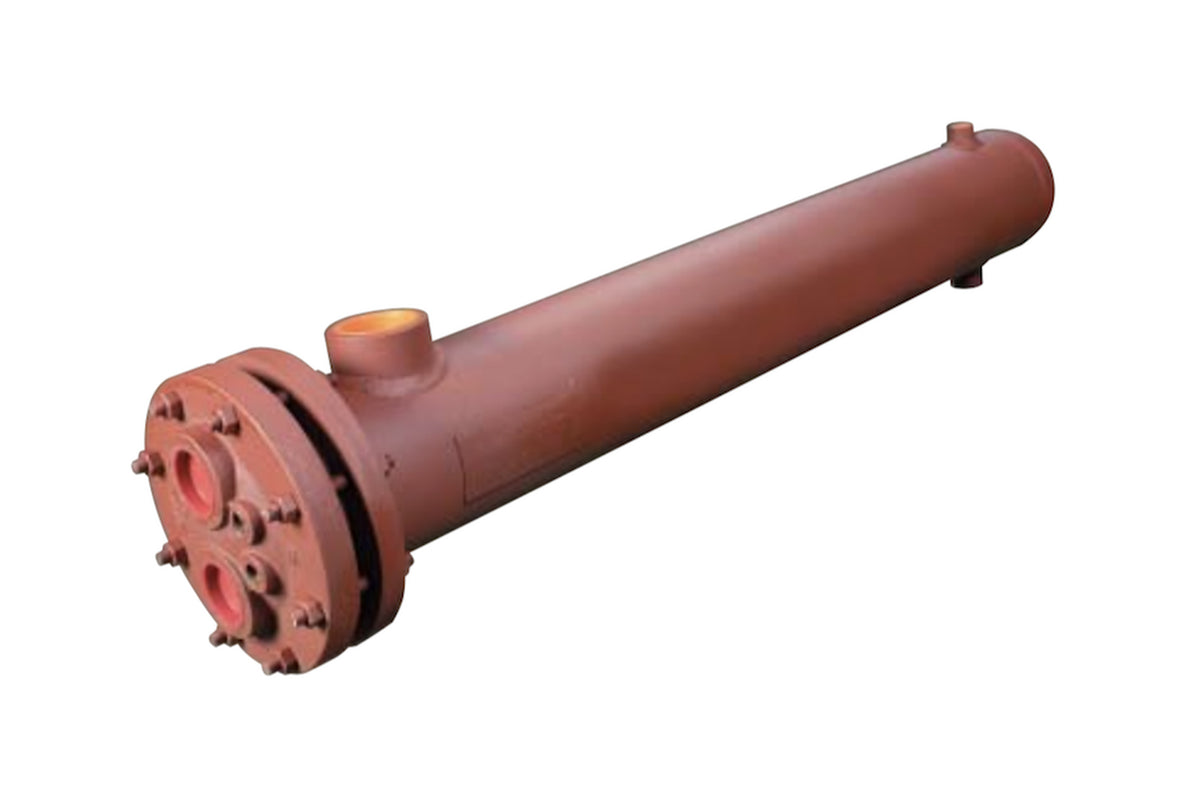

This Taco Shell & Tube Heat Exchanger, model G4204L, is a high-quality heat transfer equipment designed for liquid to liquid applications. With a nominal shell diameter of 4 inches, it offers efficient heat transfer capabilities. The heat exchanger features a 2-pass design, allowing the liquid to flow through the tubes twice for enhanced heat exchange. The tube bundle length measures 24 inches, providing ample surface area for effective heat transfer. Constructed with Cu/Ni 90/10 material, the tubes have a diameter of 3/4 inches and a wall thickness of .035 inches. The tube material meets the SB111-706 standard and has a gauge of 20. The connection type is channel-flanged without a cover, ensuring secure and reliable connections. The tube plate is made of steel for durability and strength, while the separators are also constructed from steel. With a working pressure of 150 psi, this Taco Shell & Tube Heat Exchanger is capable of handling demanding applications with ease.
Taco Shell & Tube Heat Exchangers Overview
Taco Shell & Tube Heat Exchangers are equipment used in HVAC systems and various industrial applications for the purpose of transferring heat between two fluids. These exchangers are composed of a large outer shell and an inner tube bundle. The arrangement allows one fluid to flow through the tubes while a second fluid circulates outside the tubes but within the shell. As they pass each other, heat exchange occurs, with the fluid inside the tubes either gaining or losing heat from the fluid in the shell. Taco Shell & Tube Heat Exchangers are noted for their durable construction, effectiveness in heat transfer, and ease of maintenance, including the straightforward process of replacing the tube bundle.
