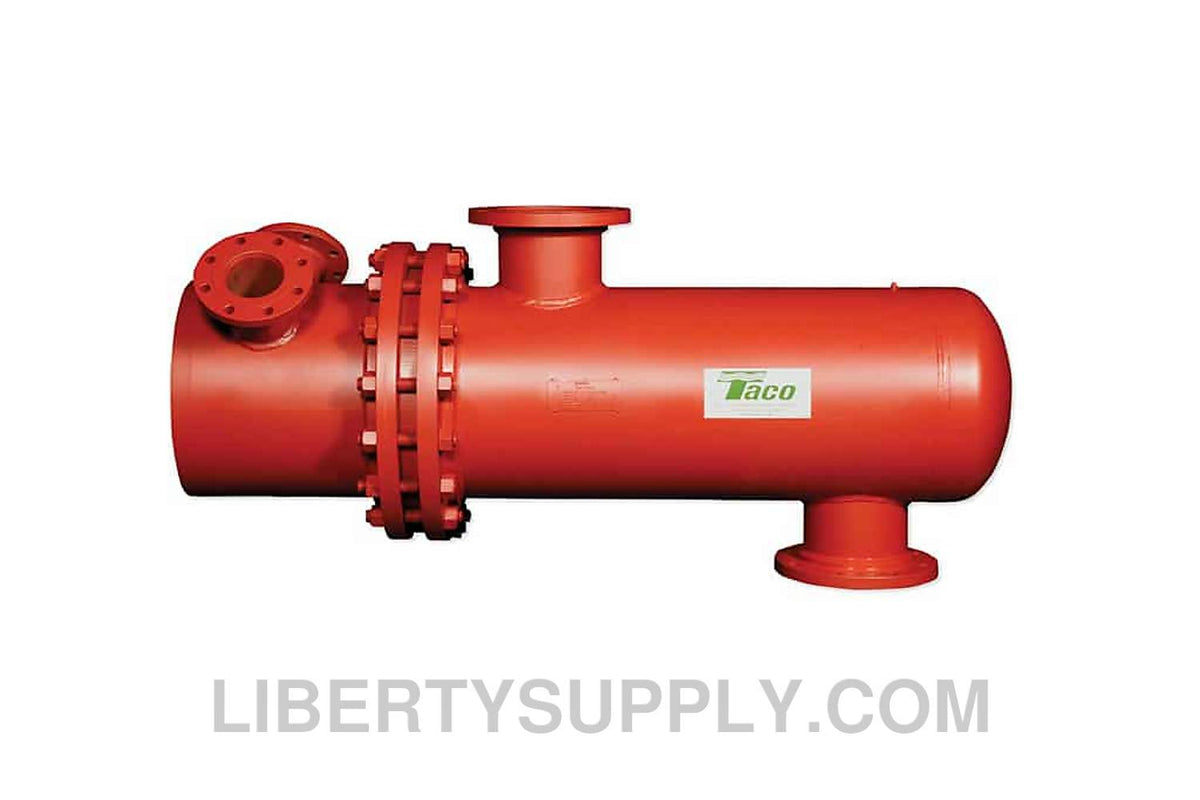

This Taco Shell & Tube Heat Exchanger, model E6208L, is a versatile and efficient heat transfer device designed for liquid to liquid applications. With a nominal shell diameter of 6 inches and two tube passes, this heat exchanger provides optimal heat exchange capabilities. The copper 3/4 OD x .035 (20 Gal) wall SB75 tubes offer excellent thermal conductivity and durability. The heat exchanger features a channel-flanged connection type without a cover, ensuring easy installation and maintenance. The steel tube plate and separators provide stability and support for the tubes. With a working pressure of 150 psi, this Taco Shell & Tube Heat Exchanger is suitable for various industrial applications where efficient heat transfer is essential.
Taco Shell & Tube Heat Exchangers Overview
Taco Shell & Tube Heat Exchangers are equipment used in HVAC systems and various industrial applications for the purpose of transferring heat between two fluids. These exchangers are composed of a large outer shell and an inner tube bundle. The arrangement allows one fluid to flow through the tubes while a second fluid circulates outside the tubes but within the shell. As they pass each other, heat exchange occurs, with the fluid inside the tubes either gaining or losing heat from the fluid in the shell. Taco Shell & Tube Heat Exchangers are noted for their durable construction, effectiveness in heat transfer, and ease of maintenance, including the straightforward process of replacing the tube bundle.
Note: product image is generic
