This Taco Shell & Tube Heat Exchanger, model E14206L, is a single-heat exchanger designed for liquid-to-liquid heat transfer. With a nominal shell diameter of 14 inches, it features two tube passes and a tube bundle length of 36 inches. The tubes are made of copper with a size of 3/4 OD x .035 (20 Ga) wall SB75 tubes. The heat transfer medium is liquid to liquid, making it suitable for various applications. The connection type is channel-flanged without a cover, providing easy access for maintenance. The tube plate material is steel, ensuring durability and reliability. Additionally, the separators are made of steel. This heat exchanger has a working pressure rating of 150 psi, making it suitable for high-pressure systems.
Taco Shell & Tube Heat Exchangers Overview
Taco Shell & Tube Heat Exchangers are equipment used in HVAC systems and various industrial applications for the purpose of transferring heat between two fluids. These exchangers are composed of a large outer shell and an inner tube bundle. The arrangement allows one fluid to flow through the tubes while a second fluid circulates outside the tubes but within the shell. As they pass each other, heat exchange occurs, with the fluid inside the tubes either gaining or losing heat from the fluid in the shell. Taco Shell & Tube Heat Exchangers are noted for their durable construction, effectiveness in heat transfer, and ease of maintenance, including the straightforward process of replacing the tube bundle.

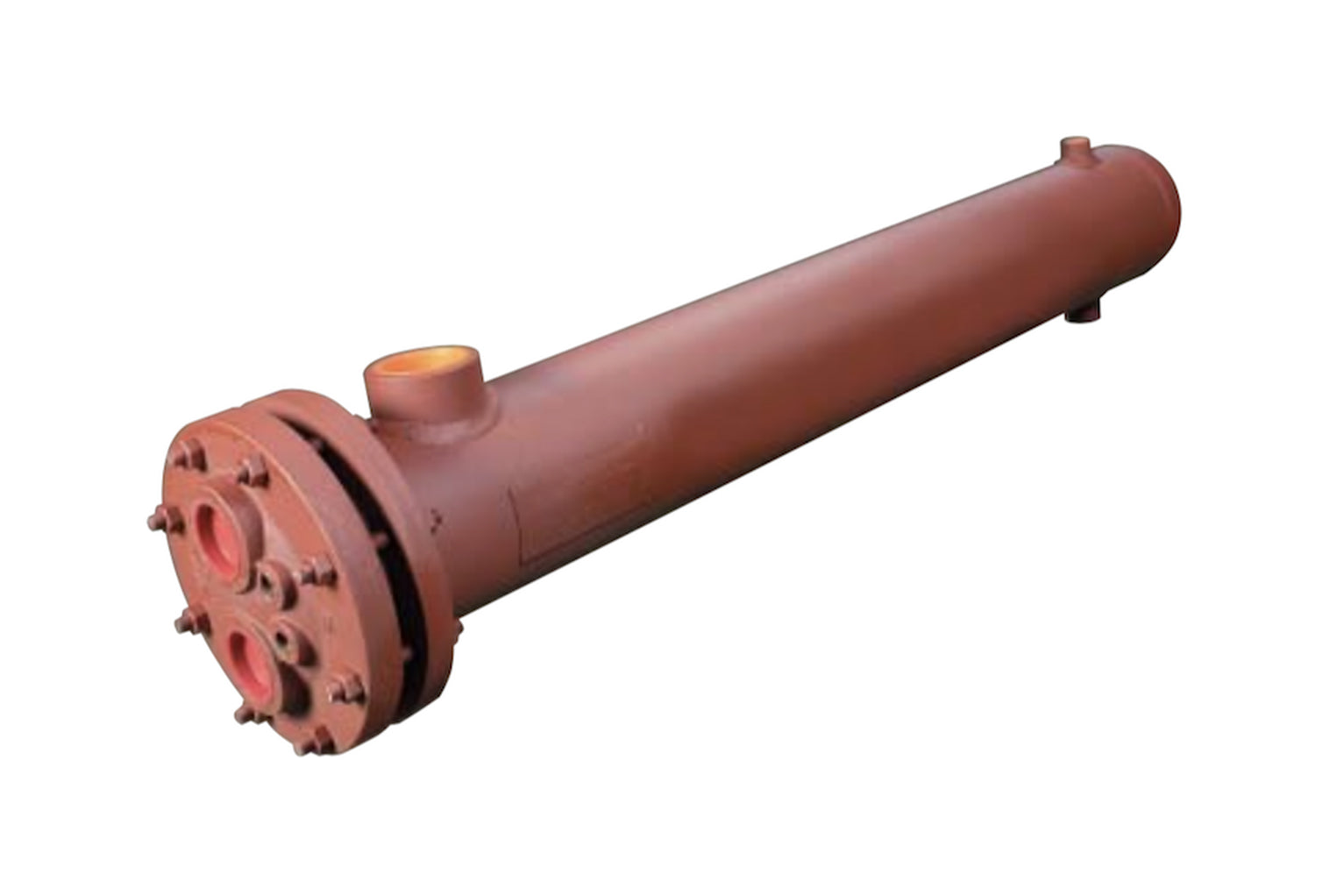

Note: product image is generic
