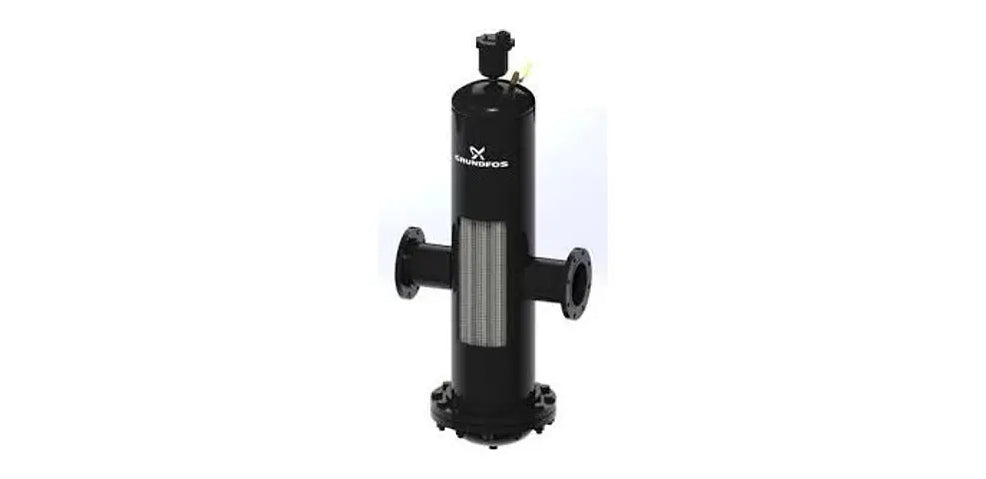

Grundfos Separators

Grundfos Separators for Hydronic HVAC Systems, Air Removal, Dirt Separation, and Pump Protection

Grundfos Separators are designed to help protect hydronic heating and cooling systems by removing unwanted air, dirt, sediment, and suspended solids from circulating water. In HVAC and mechanical room systems, proper separation helps improve heat transfer, reduce noise, limit corrosion risk, protect pumps and valves, and support more reliable long-term system operation.

The Grundfos separator range includes dynamic separators and hydronic air and dirt separator solutions. Dynamic separators use centrifugal movement to remove suspended solids from water. Grundfos describes its DSA dynamic separator as having a removal capacity of 98% of particles larger than 80 microns and heavier than 1 kg/dm³, making it useful for applications where suspended solids need to be separated from circulating water before they damage equipment or reduce system performance.

In hydronic systems, air and dirt separation is important because dirt particles can erode pump impellers, mechanical seals, valve seats, valve mechanisms, piping, and other system components. Air can also contribute to noise, air binding, poor heat transfer, corrosion, and reduced system efficiency. Grundfos air and dirt separator options are used to remove these unwanted contaminants from the circulating fluid so the system can operate more efficiently and reliably.

Grundfos also offers hydronic component packages that can combine air separation, air and dirt separation, expansion tanks, bypass feeders, glycol make-up systems, and make-up water lines into packaged assemblies for pump skid and mechanical room applications. These packaged solutions can help simplify hydronic system design and installation while supporting cleaner, more stable system operation.

Features

• Separator solutions for hydronic heating and cooling systems
• Designed to remove air, dirt, sediment, and suspended solids from circulating water
• Dynamic separator options use centrifugal movement to separate suspended solids
• DSA dynamic separator removal capacity listed at 98% for particles larger than 80 microns and heavier than 1 kg/dm³
• Air and dirt separator options help protect pumps, valves, heat exchangers, coils, and piping
• Helps reduce system noise caused by entrained air
• Helps limit erosion caused by dirt, sand, metal shavings, iron oxide, and other debris
• Supports improved heat transfer and more stable hydronic performance
• Helps reduce air binding and circulation issues
• Helps support longer pump seal and impeller life
• Suitable for mechanical rooms, pump skids, central plants, and commercial HVAC loops

Applications

• Commercial HVAC systems
• Hydronic heating systems
• Hydronic cooling systems
• Chilled water systems
• Boiler water systems
  Central plant hydronic loops
• Pump skid assemblies
