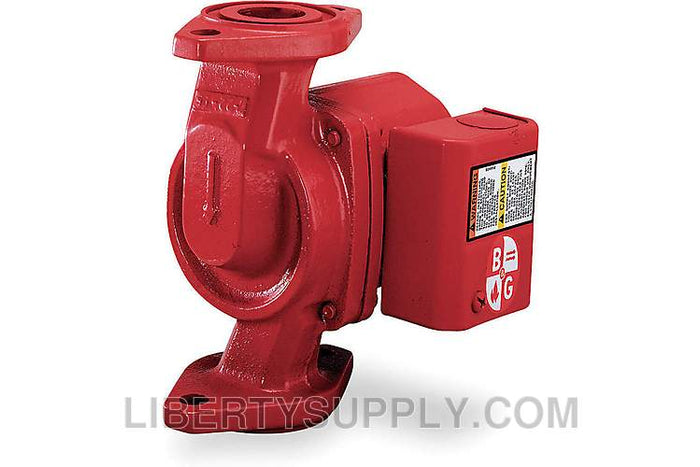

Series NRF9F/LW small, cast iron circulator pumps are used for hydronic heating and cooling in closed loop systems. NRF9F/LW pumps are permanently-lubricated with a 1/40 HP, 2800 RPM, 115v, single phase motor. Series NRF pumps are small in-line circulator pumps intended to pump water through closed loop systems for heating and cooling in residential and light commercial applications. It's maintenance-free system, with a self-cleaning particle shield, and DuraGlide bearing systems protects the shaft and bearings from system start-up debris. Series NRF pumps have a Red Fox motor, which features high-starting torque, and a stabilized, heat-resistant, non-metallic impeller with a closed design. Mounting hardware and flange gaskets are included. Connections (sweat or flange) are available separately.
|Manufacturer||Bell & Gossett|
|Application||Heating & Cooling|
|Body Material||Cast Iron|
|Flange Connection Size(s)||1", 1-1/2", 1-1/4", 3/4"|
|Horse Power||1/40 HP|
