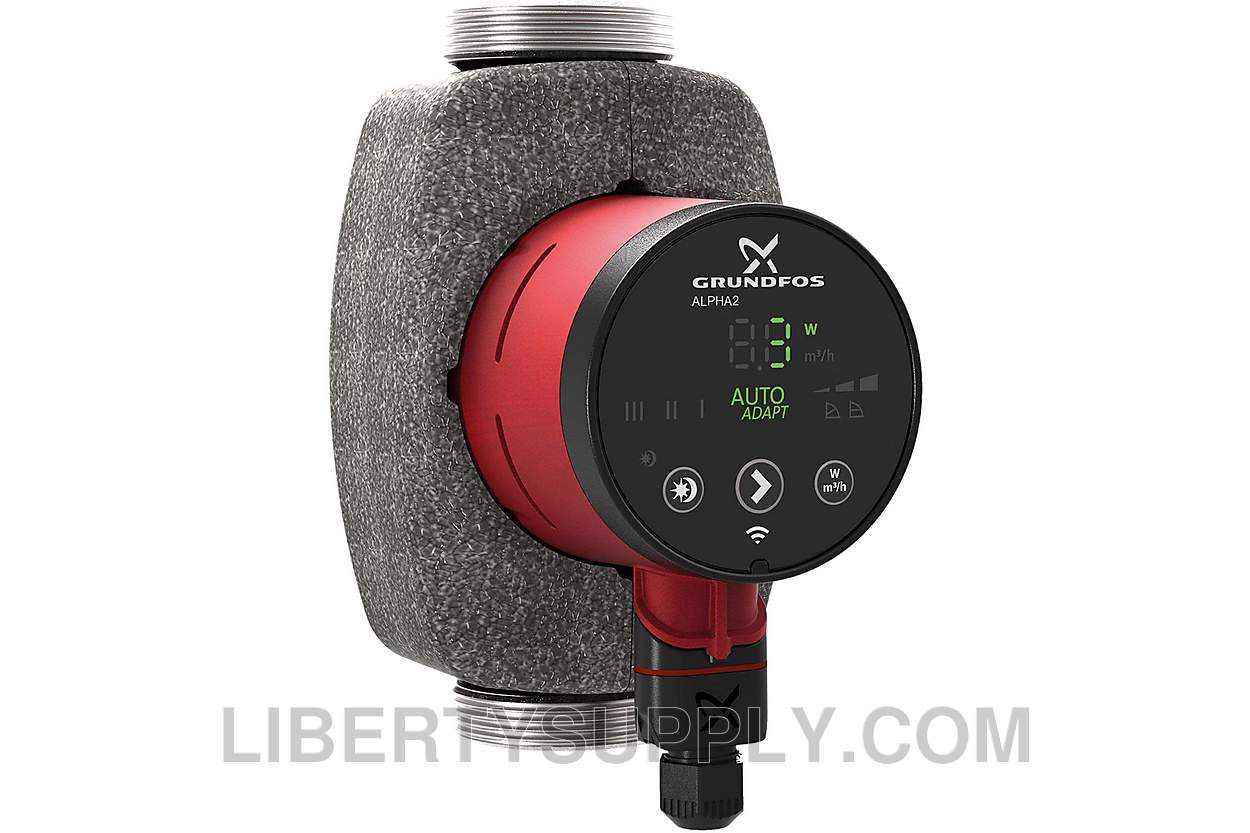

Grundfos 99163972, ALPHA2 15-55SF/LC High-Efficiency Circulator

Roll over image to zoom in Click on image to zoom

Grundfos 99163972, ALPHA2 15-55SF/LC High-Efficiency Circulator

Name: Grundfos 99163972, ALPHA2 15-55SF/LC High-Efficiency Circulator
Brand: Grundfos
SKU: GNC01-0885
Price: 859.0 USD
Availability: OutOfStock

SKU: GNC01-0885 Part Number: 99163972 Model: 15-55SFC/LC

Price:

$859.00

Save 0% Call 844-448-0880 for large volume pricing

Stock:

Obsolete

Quantity:

This circulator pump is a high-efficiency ECM variable speed model designed for various heating and hot-water recirculation applications. It has AUTOADAPT and constant-pressure control modes, making it suitable for commercial air conditioning, commercial heating, and domestic heating.

Manufacturer	Grundfos
Part Number	99163972
Model	15-55SFC/LC
Rated flow	10.7 US gpm
Rated head	8.202 ft
Maximum head	18.05 ft
TF class	110
Approvals	ETL, FCC, NSF
Pump housing	Stainless steel, EN 1.4308
Impeller	Composite, Ultrason E 2010 G6 (PES 30%GF
Range of ambient temperature	32 .. 104 °F
Maximum operating pressure	145.04 psi
Type of connection	GF
Pipe connection	1
Pressure rating for connection	PN 10
Port-to-port length	6 1/2 in
Pumped liquid	Water
Liquid temperature range	35.6 .. 230 °F
Selected liquid temperature	140 °F
Density	61.35 lb/ft³
P1 min.	5 W
P1 max.	45 W
Main frequency	60 Hz
Rated voltage	1 x 115 V
Minimum current consumption	0.1 A
Maximum current consumption	0.65 A
Enclosure class (IEC 34-5)	IP42
Insulation class (IEC 85)	F
Built-in motor protection	NONE
Thermal protec	ELEC
Terminal box position	6H
Net weight	5.93 lb
Gross weight	6.44 lb
Shipping volume	0.28 ft³
Sales region	USA

Grundfos has a wide range of products, pump solutions, and services for all applications. Grundfos' energy-efficient pumps provide comfort and move water, wastewater, and industrial liquids all over the world.
