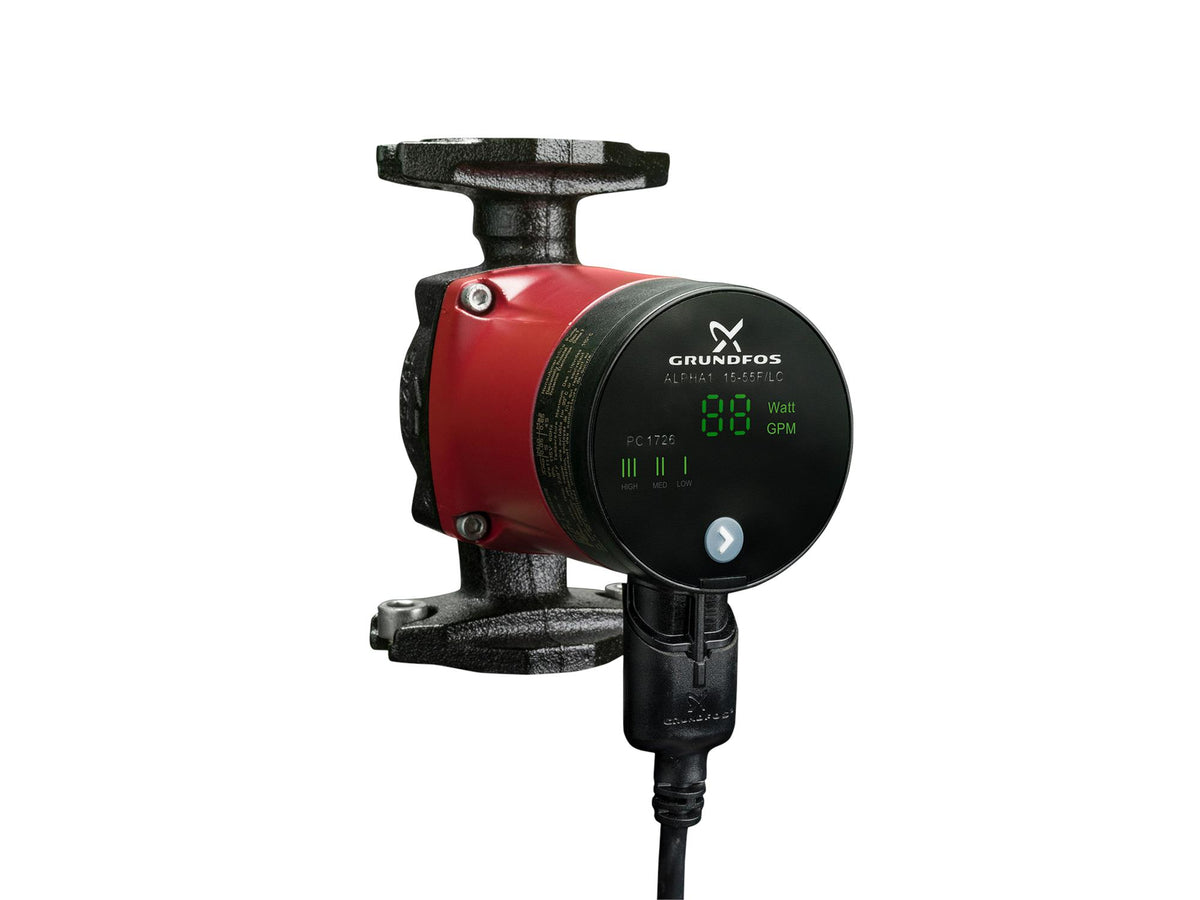

Name: Grundfos 99285998, 115V 1/16HP ALPHA1 Linecord Circulator
Brand: Grundfos
SKU: LSI5USHO1Z
Price: 314.95 USD
Availability: OutOfStock

Grundfos 99285998, 115V 1/16HP ALPHA1 Linecord Circulator

Roll over image to zoom in Click on image to zoom

This circulator is a high-efficiency ECM variable speed pump designed for various heating applications. It operates at 115V with a 1/16HP motor and has three constant-pressure control modes, making it suitable for commercial air conditioning, commercial heating, and domestic heating systems.

Manufacturer	Grundfos
Part Number	99285998
Rated flow	6.6 US gpm
Rated head	8.202 ft
Maximum head	18.05 ft
TF class	110
Approvals	ETL, FCC
Pump housing	Cast iron, EN 1561 EN-GJL-150
Impeller	Composite, Ultrason E 2010 G6 (PES 30%GF
Range of ambient temperature	32 .. 104 °F
Maximum operating pressure	145.04 psi
Type of connection	GF
Size of connection	1 1/2 inch
Pressure rating for connection	PN 10
Port-to-port length	6 1/2 in
Pumped liquid	Water
Liquid temperature range	35.6 .. 230 °F
Selected liquid temperature	140 °F
Density	61.35 lb/ft³
P1 min.	5 W
P1 max.	45 W
Main frequency	60 Hz
Rated voltage	1 x 115 V
Minimum current consumption	0.1 A
Maximum current consumption	0.65 A
Enclosure class (IEC 34-5)	IP42
Insulation class (IEC 85)	F
Built-in motor protection	NONE
Thermal protec	ELEC
Terminal box position	6H
Net weight	6.5 lb
Gross weight	7.26 lb
Shipping volume	0.28 ft³
Sales region	USA
Country of origin	US
Custom tariff no.	8413.70.2005

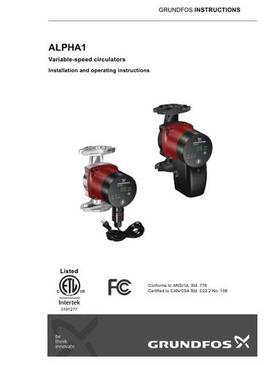

ALPHA1, US version (Installation and operating instructions)

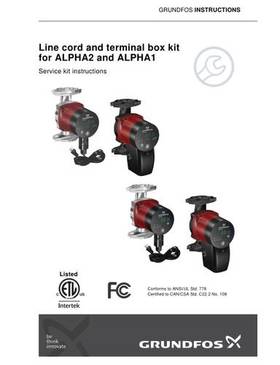

Line cord and terminal box kit for ALPHA2 and ALPHA1 (Service kit instructions)

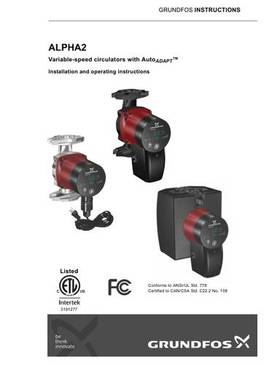

ALPHA2, Variable-speed circulators with AutoADAPT™ (Installation and operating instructions)

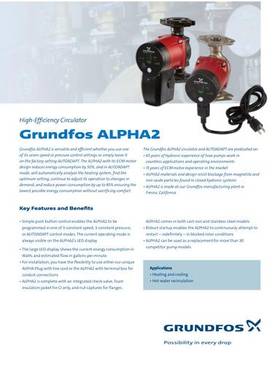

ALPHA2, High-efficiency Circulator (Product brochure)

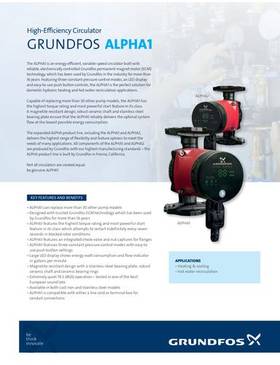

ALPHA1, High-Efficiency Circulator (Product brochure)

DBS, GRUNDFOS RESIDENTIAL BUILDINGS (Product brochure)

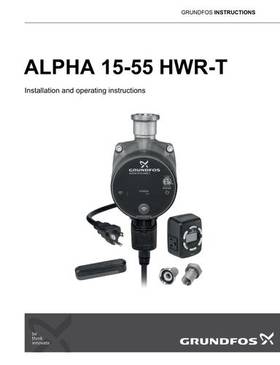

ALPHA 15-55 HWR-T (I & O instructions)

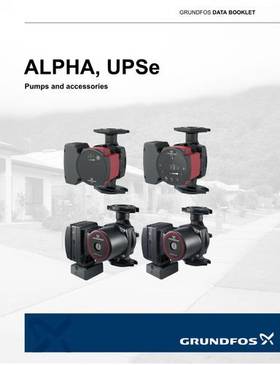

ALPHA, Pumps and accessories (Data booklet)

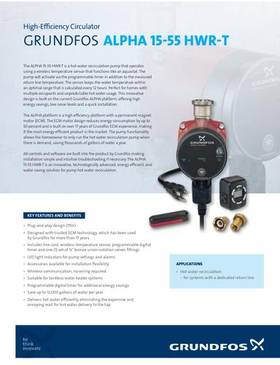

GRUNDFOS ALPHA 15-55 HWR-T, High-Efficiency Circulator (Product brochure)

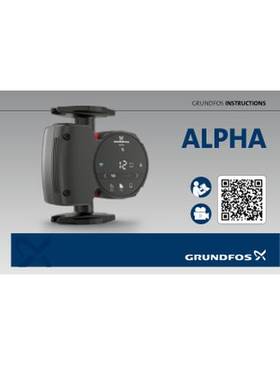

ALPHA Quickguide

Grundfos has a wide range of products, pump solutions, and services for all applications. Grundfos' energy-efficient pumps provide comfort and move water, wastewater, and industrial liquids all over the world.

Grundfos Water Pumps - Comprehensive Guide

Discover Grundfos water pump models, learn about their benefits, technical details, main applications, controls, arrangement tips, and let Liberty ...

Grundfos Circulator Pumps | 2026 tips

Grundfos circulator pumps are a trusted choice for water systems. With proper setup and routine care, these pumps deliver quiet operation and optim...

Save 0%

Grundfos

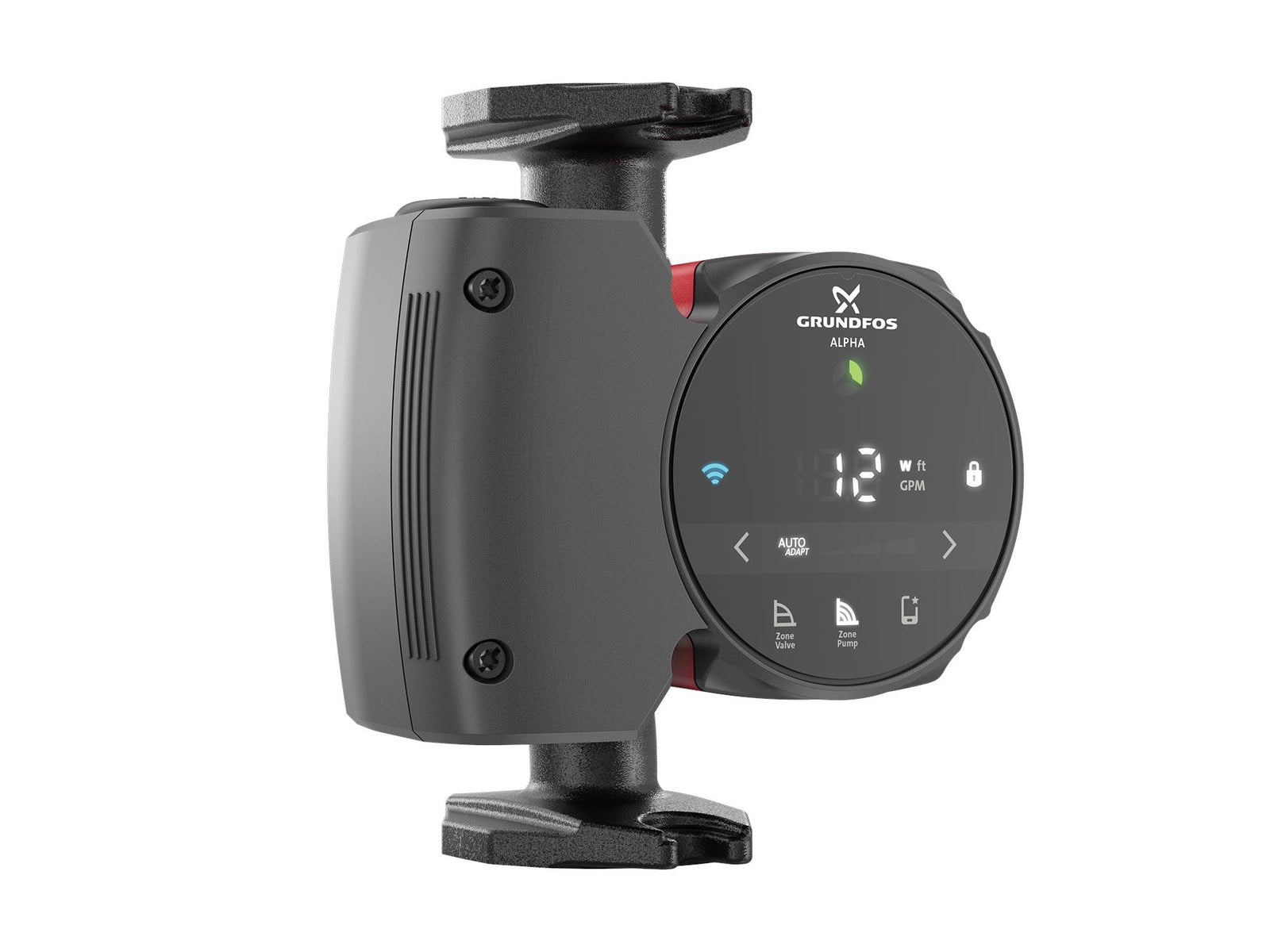

Grundfos 92603108, ALPHA15-55FR 1/16HP 115V Pump
