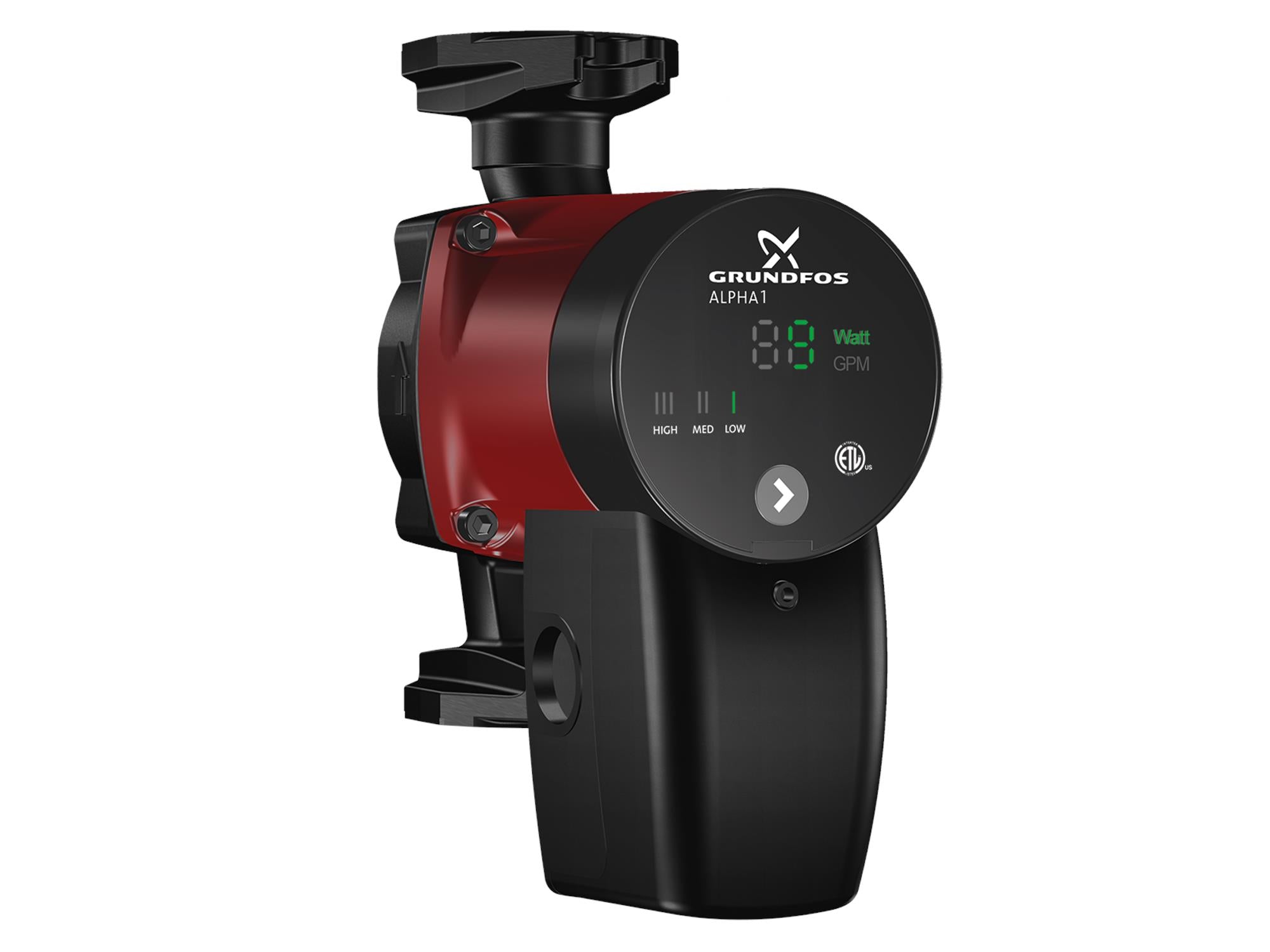

Grundfos 99287259, ALPHA1 15-55FR High-Efficiency Circulator

Roll over image to zoom in Click on image to zoom

Grundfos 99287259, ALPHA1 15-55FR High-Efficiency Circulator

Name: Grundfos 99287259, ALPHA1 15-55FR High-Efficiency Circulator
Brand: Grundfos
SKU: LSI6B7LKEA
Price: 244.95 USD
Availability: OutOfStock

SKU: LSI6B7LKEA Part Number: 99287259

Price:

$244.95

Save 0 Call 844-448-0880 for large volume pricing

Stock:

Obsolete

Quantity:

This circulator is a high-efficiency ECM variable speed pump designed for various heating applications. It has three constant-pressure control modes and is suitable for commercial air conditioning, commercial heating, and domestic heating.

Manufacturer	Grundfos
Part Number	99287259
Rated flow	10.7 US gpm
Rated head	8.202 ft
Maximum head	18.05 ft
TF class	110
Approvals	ETL, FCC
Pump housing	Cast iron, EN 1561 EN-GJL-150
Impeller	Composite, Ultrason E 2010 G6 (PES 30%GF
Range of ambient temperature	32 .. 104 °F
Maximum operating pressure	145.04 psi
Type of connection	GF
Size of connection	1 1/2 inch
Pressure rating for connection	PN 10
Port-to-port length	6 1/2 in
Pumped liquid	Water
Liquid temperature range	35.6 .. 230 °F
Selected liquid temperature	140 °F
Density	61.35 lb/ft³
P1 min.	5 W
P1 max.	45 W
Main frequency	60 Hz
Rated voltage	1 x 115 V
Minimum current consumption	0.1 A
Maximum current consumption	0.65 A
Enclosure class (IEC 34-5)	IP42
Insulation class (IEC 85)	F
Built-in motor protection	NONE
Thermal protec	ELEC
Terminal box position	6H
Net weight	6.32 lb
Gross weight	6.35 lb
Shipping volume	0.28 ft³
Sales region	USA

ALPHA1, US version (Installation and operating instructions)

Line cord and terminal box kit for ALPHA2 and ALPHA1 (Service kit instructions)

ALPHA2, Variable-speed circulators with AutoADAPT™ (Installation and operating instructions)

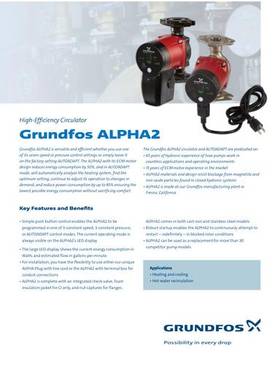

ALPHA2, High-efficiency Circulator (Product brochure)

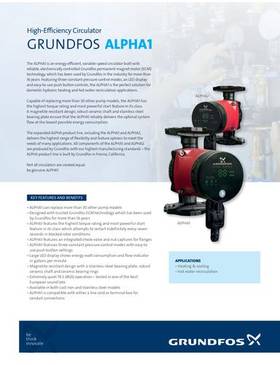

ALPHA1, High-Efficiency Circulator (Product brochure)

DBS, GRUNDFOS RESIDENTIAL BUILDINGS (Product brochure)

ALPHA 15-55 HWR-T (I & O instructions)

ALPHA, Pumps and accessories (Data booklet)

GRUNDFOS ALPHA 15-55 HWR-T, High-Efficiency Circulator (Product brochure)

ALPHA Quickguide
