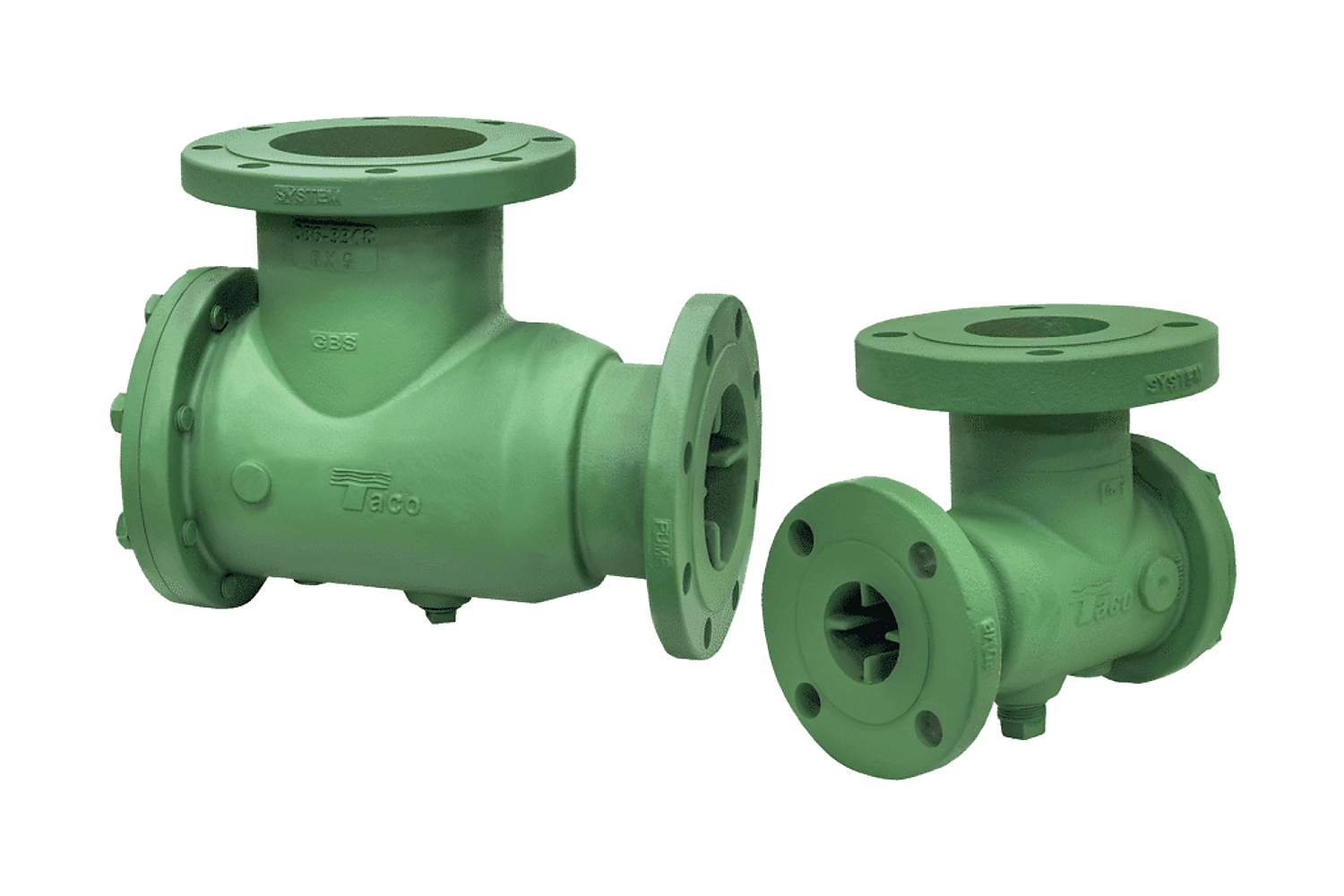

This Taco Suction Diffuser Rear Strainer Pullout (RSP) is a flanged, high-pressure device that effectively removes debris from the fluid stream before it reaches the pump. The suction diffuser operates by creating a low-velocity zone in the center of the diffuser that allows air and debris to be separated from the flow. The rear strainer pullout feature allows for easy maintenance and cleaning without requiring removal from the piping system. With a maximum pressure rating of 250 psi, this suction diffuser is an ideal solution for commercial and industrial applications where pump efficiency and reliability are critical.
Suction Diffuser Rear Strainer Pullout (RSP) Overview
These Taco suction diffusers provide maximum flow efficiency at the pump's suction inlet while reducing space and fitting requirements. This eliminates the need for an equivalent length of ten pipe diameters of straight run on the pump's suction side.
This flow straightening device incorporates numerous features into one device, simplifying installations and reducing installation costs. They act as an elbow (and, in some cases, a reducing elbow) with a built-in strainer.
Features & Benefits
- Full length, integral cast straightening vane assembly ensure uniform flow to the suction inlet of the pump
- Oversized body cylinder ensures minimal pressure drop
- Metering port allows for the monitoring of system conditions
- Disposable fine mesh start-up strainer promotes a cleaner, more trouble-free system
- Removable cover plate and reusable "O" ring allow for easy access and maintenance of the permanent strainer
- Blow down port allows for routine maintenance and removal of sediment and debris
- Ductile iron body on all units
- Optional magnetic insert to trap small metallic particles
- Flow range of 20-10,000 GPM
- Connection sizes of 1-1/2" to 16"
- Available in 125 psi or 250 psi working pressures
- Grooved adapters available
