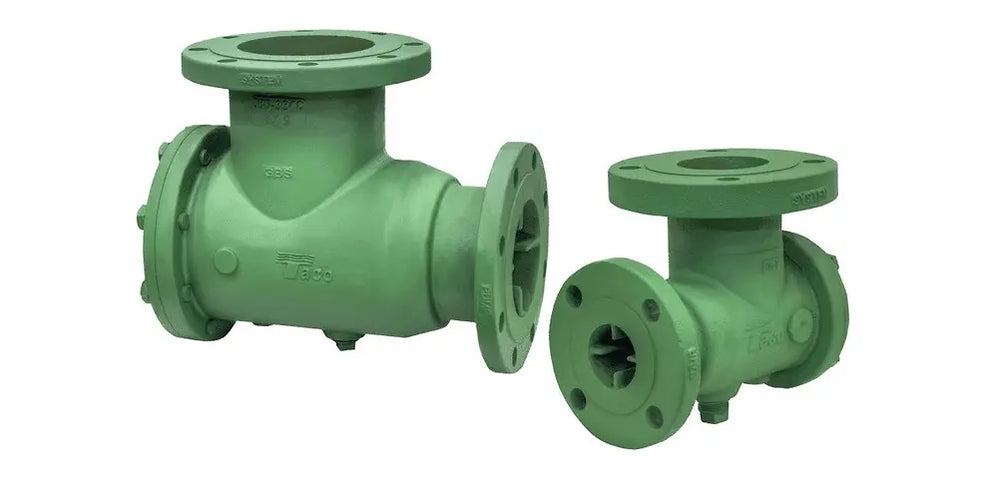

Taco Pump Suction Diffusers

Taco Suction Diffuser Rear Strainer Pullout for HVAC Pumps, Hydronic Systems, and Commercial Pump Protection

Flow Straightening, Straining, and Space Savings at the Pump Suction Inlet

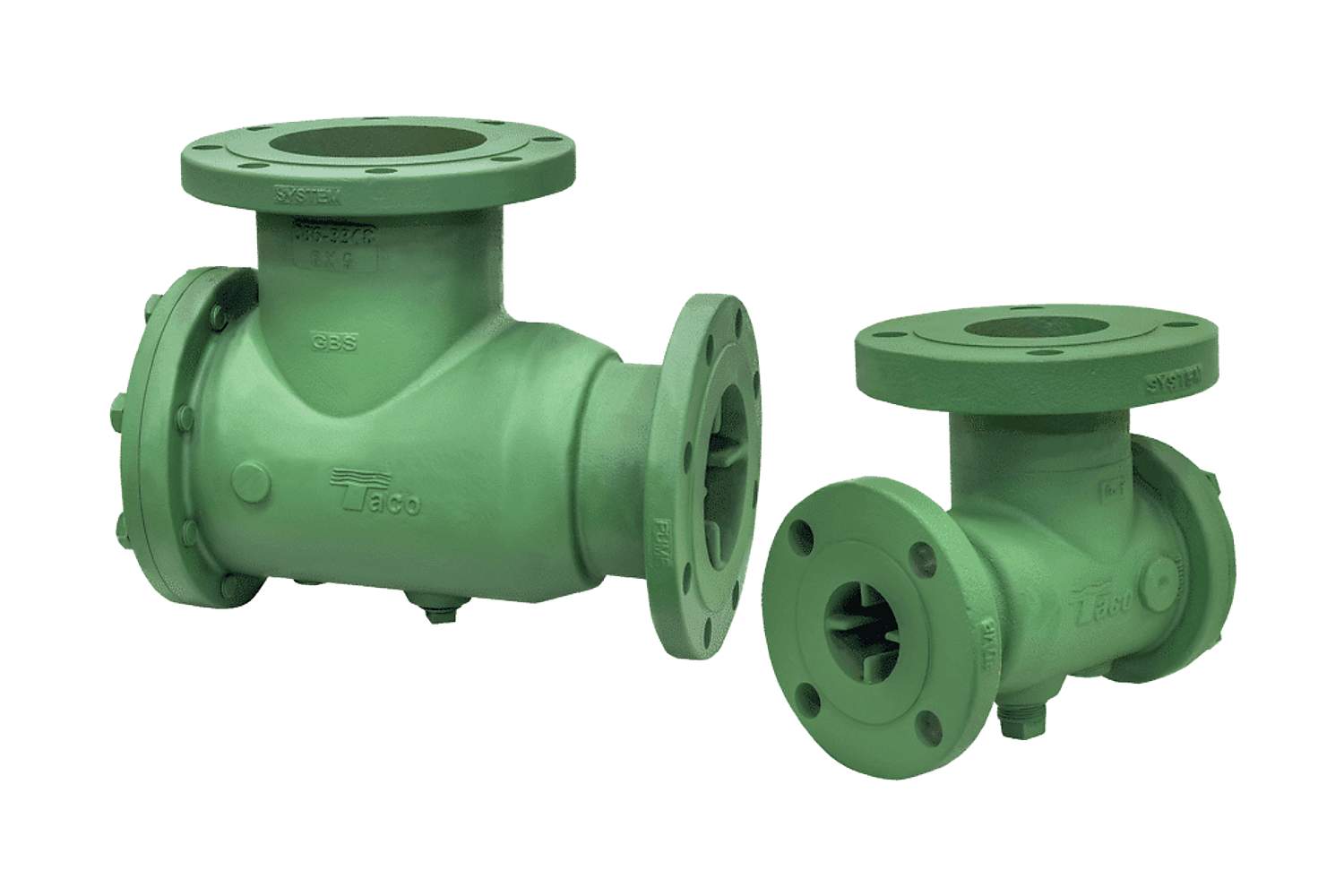

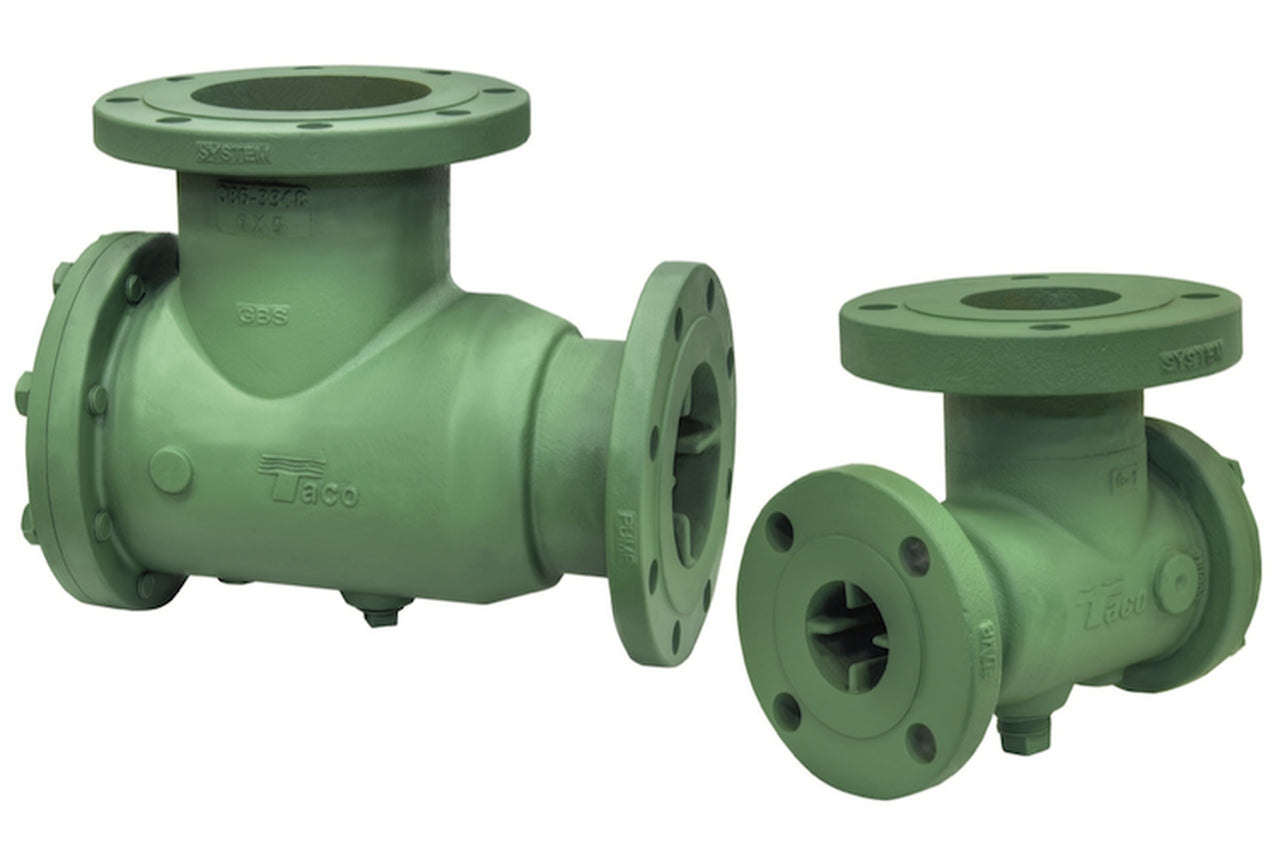

Taco Suction Diffuser Rear Strainer Pullout, or RSP, units are designed to improve flow conditions at the suction side of a pump while helping simplify mechanical room piping. By combining a suction diffuser, flow straightening device, elbow, and built-in strainer into one component, the Taco RSP helps reduce fitting requirements, save space, and lower installation costs in commercial HVAC and hydronic pumping systems.

The Taco Suction Diffuser helps provide uniform flow into the pump suction inlet, which supports better pump efficiency and more stable operation. Its full-length straightening vane assembly reduces turbulence before the fluid enters the pump, while the oversized body cylinder helps minimize pressure drop.

For easier maintenance, the built-in strainer helps capture sediment and debris before it reaches the pump. The rear strainer pullout design allows service access, while the blow-down port supports routine removal of accumulated debris. A metering port is also included to help monitor system conditions during operation.

With flow ranges from 20 to 10,000 GPM, connection sizes from 1-1/2" to 16", and ANSI Class 125 or Class 250 flanged pressure ratings, Taco suction diffusers are suitable for a wide range of commercial heating, cooling, and water circulation applications.

Features

• Suction diffuser with rear strainer pullout design
• Combines flow straightening, elbow, and straining functions in one component
• Helps improve flow efficiency at the pump suction inlet
• Helps reduce turbulence entering the pump
• Reduces space and fitting requirements in mechanical room piping
• Can eliminate the need for an equivalent length of ten pipe diameters of straight run on the pump suction side
• Full-length straightening vane assembly helps provide uniform flow to the pump
• Oversized body cylinder helps minimize pressure drop
• Built-in strainer helps protect the pump from sediment and debris
• Rear pullout strainer design supports easier maintenance
• Metering port allows monitoring of system conditions
• Blow-down port supports routine sediment and debris removal
• Available as an elbow or reducing elbow configuration depending on model
• Flow range: 20 to 10,000 GPM
• ANSI Class 125 flanged units: 175 PSI working pressure
• ANSI Class 250 flanged units: 300 PSI working pressure
• Connection sizes: 1-1/2" to 16"

Applications

• Commercial HVAC pump systems
• Hydronic heating systems
• Chilled water systems
• Condenser water systems
• Boiler room piping
• Mechanical room pump installations
• Pump suction piping protection
• End suction pump installations
• Base-mounted pump systems
• High-flow water circulation systems
• Retrofit projects where mechanical room space is limited
