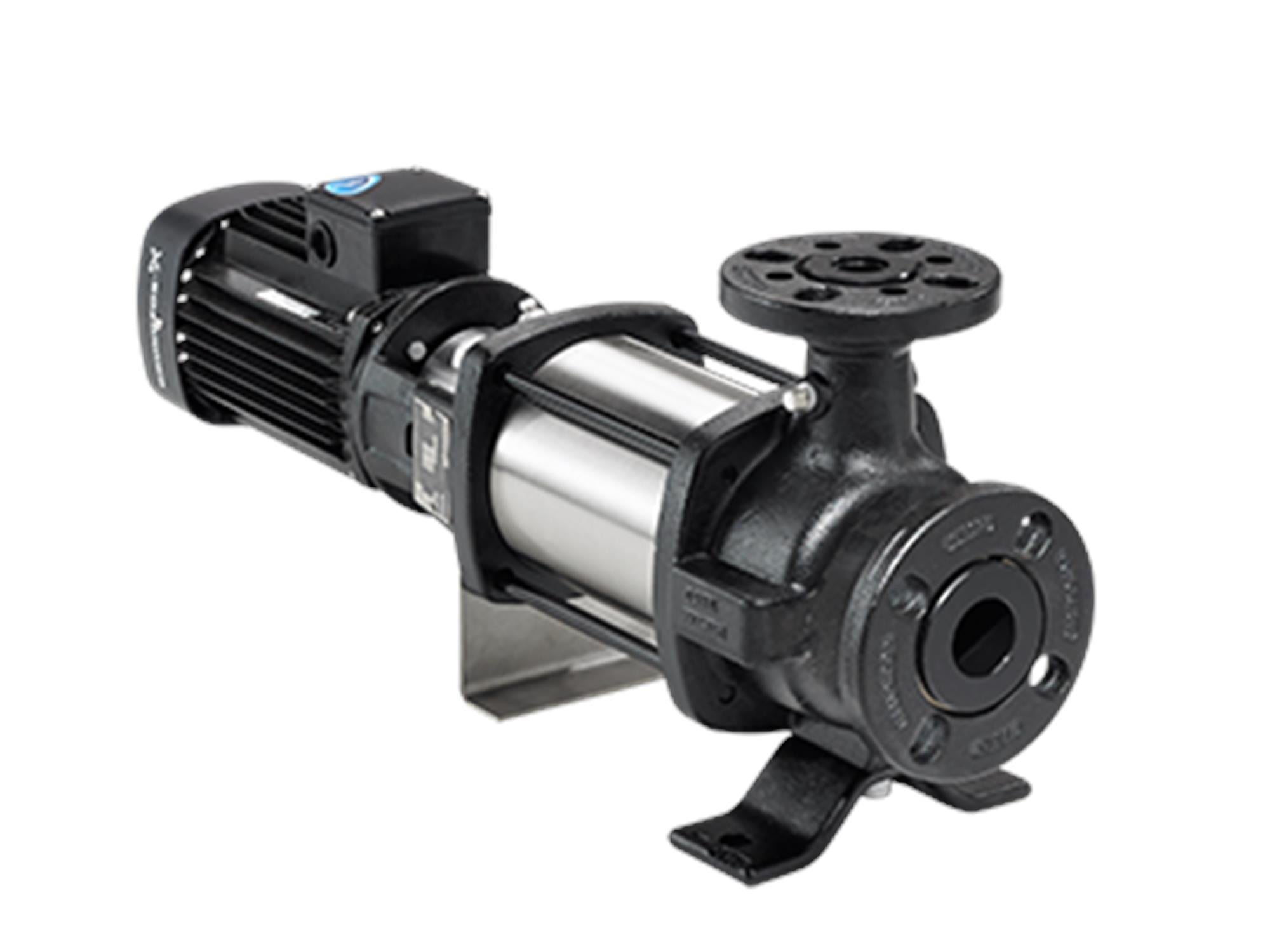

Grundfos 97739962, CRN 45-4-1 H-GB-A-E-HQQE Horizontal Multistage Pump

SKU: LSIQ6VW3OG Part Number: 97739962

Price:
Sale price$14,591.95 Regular price$22,800.00

Save 36% Call 844-448-0880 for large volume pricing

Stock:
Call or Chat for availability

Description

This horizontal multistage end-suction pump is engineered for inline applications and optimized for pressure boosting in industrial settings.

Specifications

Manufacturer Grundfos
Part Number 97739962
Rated pump speed 3541 rpm
Rated flow 231 US gpm
Rated head 349.4 ft
Maximum head 443.3 ft
Stages 4
Impellers 4
Number of reduced-diameter impellers 1
Low NPSH N
Pump orientation Horizontal
End suction pump (Yes/No) Y
Shaft seal arrangement Single
Code for shaft seal HQQE
Approvals on nameplate CE,NSF/ANSI 61
Curve tolerance ISO9906:2012 3B
Pump version H
Base Stainless steel, EN 1.4408, AISI 316
Impeller Stainless steel, EN 1.4401, AISI 316
Material code A
Code for rubber E
Bearing SIC
Support bearing Graflon
Maximum operating pressure 232.06 psi
Max pressure at stated temperature 232 psi / 250 °F, 232 psi / -40 °F
Size of suction port 3 inch
Size of outlet port 1 1/2 inch
Pressure rating for connection PN 16
Flange rating inlet 150 lb
Flange size for motor 284TC
Connect code GB
Pumped liquid Water
Liquid temperature range -40 .. 248 °F
Selected liquid temperature 68 °F
Density 62.29 lb/ft³
Motor standard NEMA
Frequency converter None
Pressure sensor N
Net weight 105 lb
Gross weight 293 lb
Shipping volume 10.9 ft³
Sales region USA
Country of origin US
Custom tariff no. 8413.70.2040

About Grundfos

Grundfos has a wide range of products, pump solutions, and services for all applications. Grundfos' energy-efficient pumps provide comfort and move water, wastewater, and industrial liquids all over the world.
