Description

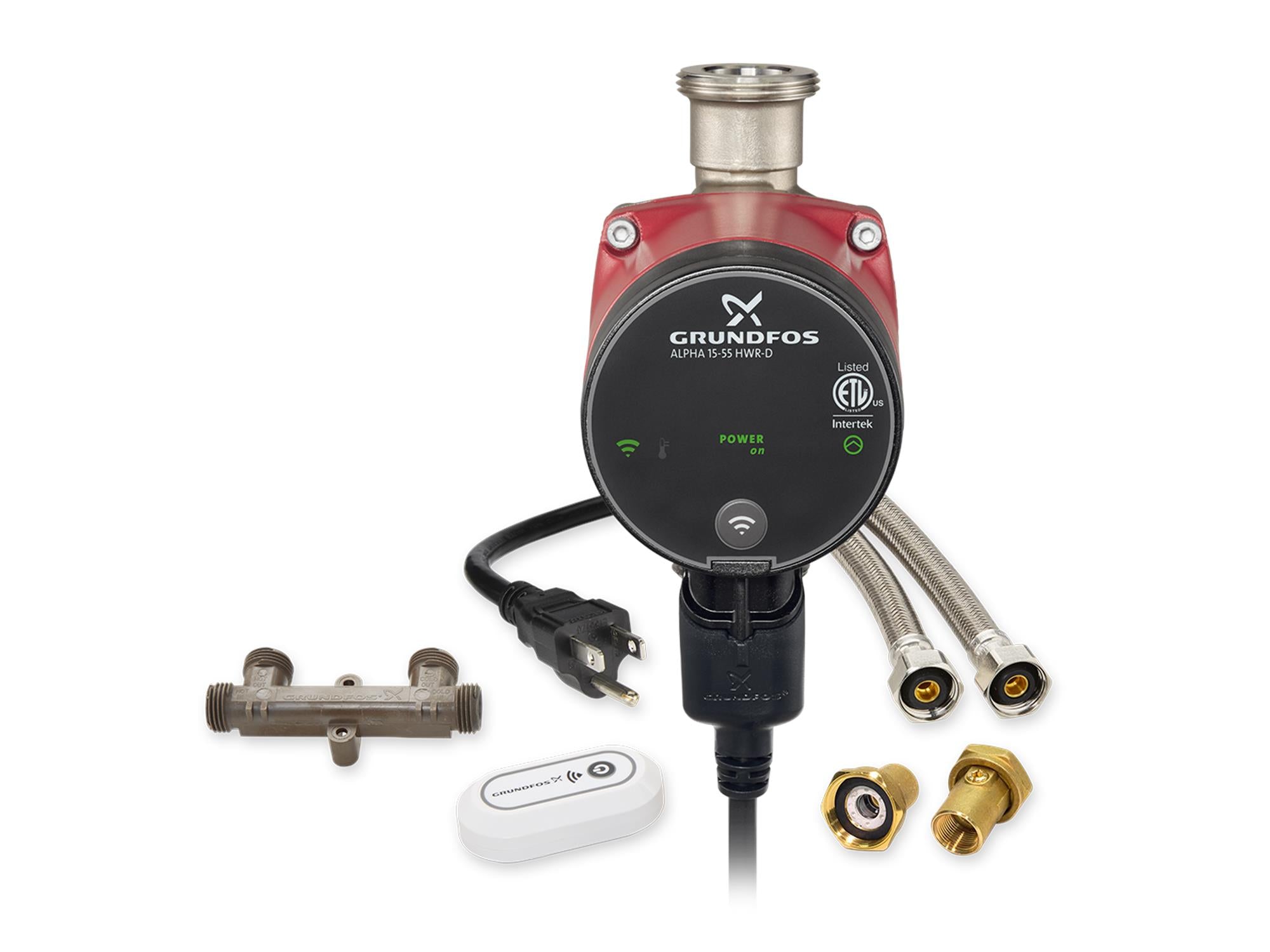

This hot water recirculation system, ALPHA 15-55 HWR-D LC with Comfort Valves, is a wireless push-button activated solution for homes that eliminates the need for a return line or electricity under the sink. It starts via remote activation when there is demand for hot water, using Bluetooth to circulate until reaching 102 °F or after 5 minutes of operation. The system includes a line cord, two activation push buttons, four thermal bypass valves, four hose kits, and one set of 3/4" bronze union isolation valve fittings.
Specifications
| Manufacturer | Grundfos |
|---|---|
| Part Number | 99793173 |
| Rated flow | 12.5 US gpm |
| Rated head | 6.693 ft |
| Maximum head | 18.05 ft |
| TF class | 110 |
| Approvals | ETL, FCC, NSF |
| Pump housing | Stainless steel, EN 1.4308 |
| Impeller | Composite, Ultrason E 2010 G6 (PES 30%GF |
| Range of ambient temperature | 33.8 .. 104 °F |
| Maximum operating pressure | 145.04 psi |
| Type of connection | NPSM |
| Pipe connection | 1 1/4 |
| Pressure rating for connection | PN 10 |
| Port-to-port length | 5 15/16 in |
| Pumped liquid | Water |
| Liquid temperature range | 35.6 .. 230 °F |
| Selected liquid temperature | 140 °F |
| Density | 61.35 lb/ft³ |
| P1 min. | 2 W |
| P1 max. | 45 W |
| Main frequency | 60 Hz |
| Rated voltage | 1 x 115 V |
| Minimum current consumption | 0.02 A |
| Maximum current consumption | 0.65 A |
| Enclosure class (IEC 34-5) | IP42 |
| Insulation class (IEC 85) | F |
| Built-in motor protection | NONE |
| Thermal protec | ELEC |
| Terminal box position | 6H |
| Net weight | 12.7 lb |
| Gross weight | 13.1 lb |
| Shipping volume | 0.49 ft³ |
| Sales region | USA |
