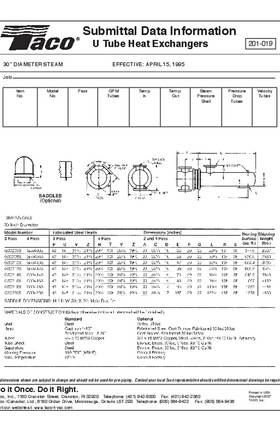

This Taco Shell & Tube Heat Exchanger, model G4204S, is a reliable and efficient heat transfer device. With a nominal shell diameter of 4 inches, it is designed to handle a working pressure of 150 psi. The heat exchanger features a U-tube design with 2 passes for enhanced heat transfer efficiency. The tube bundle length is 24 inches, ensuring sufficient surface area for effective heat exchange. The tubes are made of high-quality 304 stainless steel with a diameter of 3/4 inch and a wall thickness of .049 inches. These tubes are constructed according to the SA249 TP304 standard and have an 18 gauge thickness. This heat exchanger is specifically designed for steam to liquid heat transfer applications. It utilizes threaded connections for easy installation and maintenance. The tube plate is made of grooved steel, providing durability and stability to the unit. Additionally, the steel separators inside the heat exchanger ensure proper fluid distribution and prevent mixing between the steam and liquid streams. Overall, this Taco Shell & Tube Heat Exchanger offers reliable performance and efficient heat transfer capabilities in various industrial applications.
Taco Shell & Tube Heat Exchangers Overview

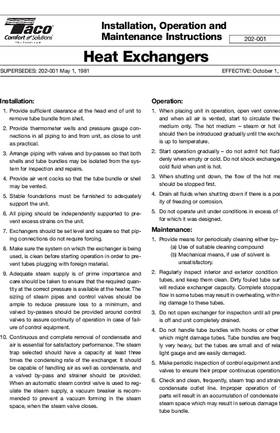

Taco Shell & Tube Heat Exchangers are equipment used in HVAC systems and various industrial applications for the purpose of transferring heat between two fluids. These exchangers are composed of a large outer shell and an inner tube bundle. The arrangement allows one fluid to flow through the tubes while a second fluid circulates outside the tubes but within the shell. As they pass each other, heat exchange occurs, with the fluid inside the tubes either gaining or losing heat from the fluid in the shell. Taco Shell & Tube Heat Exchangers are noted for their durable construction, effectiveness in heat transfer, and ease of maintenance, including the straightforward process of replacing the tube bundle.
Note: product image is generic
