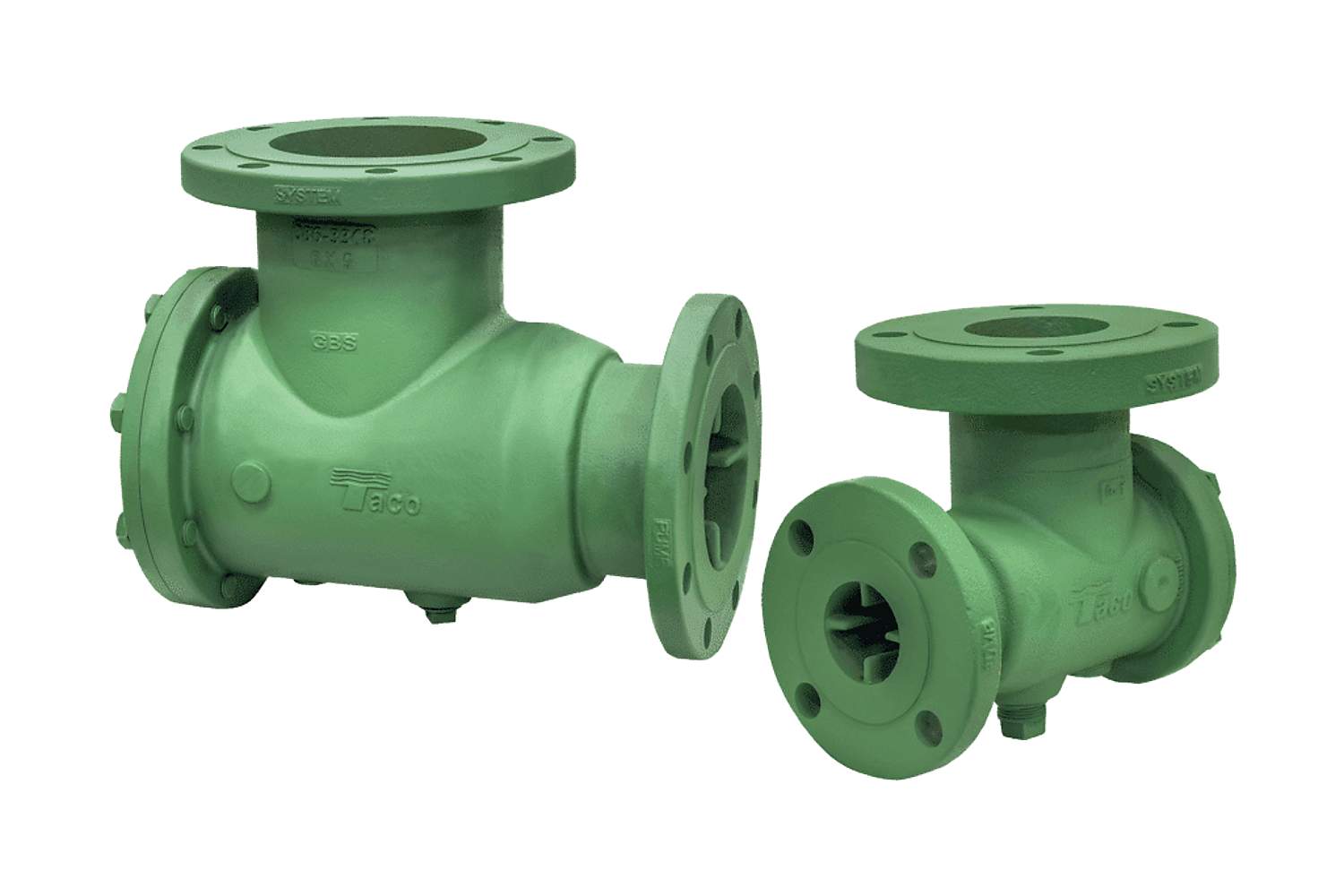

This Taco Suction Diffuser Rear Strainer Pullout (RSP) is a flanged product with dimensions of 250mm x 250mm and a pressure rating of PN16. It is designed to remove any debris or impurities from the fluid before it enters the pump, ensuring a smooth flow and preventing damage to the pump. The suction diffuser has a rear strainer pullout feature that allows for easy maintenance and cleaning without having to disconnect the piping system. Its unique design also reduces installation time and cost by eliminating the need for additional straight pipe lengths before the pump inlet. This Taco Suction Diffuser Rear Strainer Pullout (RSP) is an essential component for any pumping system that requires efficient and reliable operation.
Suction Diffuser Rear Strainer Pullout (RSP) Overview
These Taco suction diffusers provide maximum flow efficiency at the pump's suction inlet while reducing space and fitting requirements. This eliminates the need for an equivalent length of ten pipe diameters of straight run on the pump's suction side.
This flow straightening device incorporates numerous features into one device, simplifying installations and reducing installation costs. They act as an elbow (and, in some cases, a reducing elbow) with a built-in strainer.
Features & Benefits
- Full length, integral cast straightening vane assembly ensure uniform flow to the suction inlet of the pump
- Oversized body cylinder ensures minimal pressure drop
- Metering port allows for the monitoring of system conditions
- Disposable fine mesh start-up strainer promotes a cleaner, more trouble-free system
- Removable cover plate and reusable "O" ring allow for easy access and maintenance of the permanent strainer
- Blow down port allows for routine maintenance and removal of sediment and debris
- Ductile iron body on all units
- Optional magnetic insert to trap small metallic particles
- Flow range of 20-10,000 GPM
- Connection sizes of 1-1/2" to 16"
- Available in 125 psi or 250 psi working pressures
- Grooved adapters available
