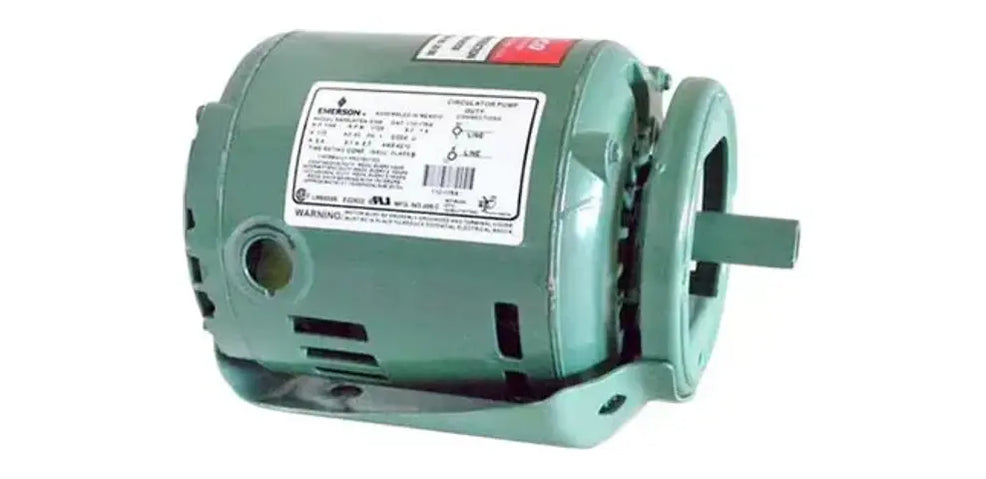

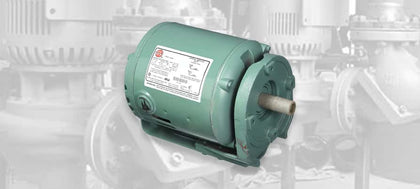

Taco Pump Motors - Overview

Taco circulators have earned a reputation as some of the most dependable hydronic pumps in the industry - and a significant part of that reputation sits squarely with the motor. Whether you are a mechanical contractor maintaining a commercial heating plant, an engineer specifying equipment for a new hydronic system, or a facility manager keeping a building running year after year, understanding the Taco pump motor is one of the most practical investments of time you can make.

This article covers how Taco circulator motors are built, what makes some of them different across product lines, how the motor mount system works, the signals that tell you a motor is ready for service, and how to approach a replacement with confidence - without unnecessary downtime or guesswork.

How The Taco Circulator Motor Works

At the fundamental level, the pump motor does one job: convert electrical energy into rotational shaft energy that spins the impeller. That rotating impeller imparts velocity to the hydronic fluid - water or glycol solution - which the pump's volute or diffuser then converts into the pressure and flow that your system needs to deliver water where it is going.

What makes Taco motors particularly well-suited to hydronic service is how they handle the environments in which they operate. Circulator pumps run for long periods - often continuously for months during a heating season or critical applications, such as data centers - in mechanical rooms, where ambient temperature, vibration, and moisture all work against the motor over time. Taco addresses this through several deliberate design choices:

Permanent lubrication: Some older circulators require periodic oil top-offs; Taco motors across some series (e.g., the 00 Series and 1600 Series) use sealed, permanently lubricated bearings. The system is maintenance-free by design - no oil caps, no scheduled lubrication intervals, no risk of damage from missed service.
Thermal overload protection: Some Taco motor models include automatic thermal overload protection. If the motor windings reach a temperature threshold due to blocked airflow, sustained overload, or other stress, the thermal protector opens the circuit and shuts the motor down before winding damage can occur. Once the motor cools, it resets automatically.
Class B insulation: Taco Pro-Fit and 1600 Series motors are wound with Class B insulation, rated to handle continuous operation at elevated temperatures. This is standard for commercial-grade hydronic equipment and directly contributes to a long service life in warm mechanical rooms.
ODP enclosure design: The Open Drip Proof (ODP) enclosure used on Taco 1600 Series and Pro-Fit motors allows internal air circulation for cooling while protecting against moisture dripping from above, making it appropriate for the typical indoor mechanical room environment.

On the 00 Series wet-rotor cartridge circulators, the motor and impeller are integrated into a single replaceable cartridge assembly. There is no mechanical seal and no shaft coupling to worry about - the rotor spins in the fluid itself, which both lubricates and cools the assembly. This design eliminates several of the most common service points found in frame-mounted pump configurations.

Taco Motor Types Across Product Lines

The motor configuration is different across the Taco pump series. The design varies meaningfully between product families - from the permanently lubricated wet-rotor cartridge in a residential type to the NEMA-frame TEFC motor on a commercial series. Understanding those differences is essential when evaluating a replacement, specifying a new installation, or building a spare-parts inventory.
The table below covers the full Taco pump lineup, organized by scale of application, from residential through large commercial, plus the Pro-Fit cross-replacement motor line:

Taco Pump Series	Category	Motor Type/Technology	Typical Application
00 Series	Residential	Wet-rotor, PSC (permanent split capacitor), direct drive	Residential hydronic & radiant heating, DHW recirculation
00 Series 3-Speed	Residential	Wet-rotor, PSC, 3-speed switched winding	Zoned hydronic heating where variable flow is needed without ECM cost
00e Series	Residential / Light Commercial	Wet-rotor, ECM permanent magnet brushless DC, variable speed	High-efficiency replacement for 00 Series PSC circulators; up to 85% energy savings
00e VR Series	Residential / Light Commercial	Wet-rotor, ECM permanent magnet, self-sensing variable speed	Commercial HVAC & NSF-rated DHW
2400 Series High-Capacity	Light / Medium Commercial	Close-coupled, PSC single-phase direct drive	Medium-flow hydronic heating, chilled water, DHW recirculation - quiet operation
1600 Series In-Line	Commercial	Frame-mounted ODP or TEFC; single-phase or three-phase	Commercial hydronic heating & cooling
1900 Series Close-Coupled In-Line	Commercial	Frame-mounted ODP or TEFC; single-phase or three-phase	Commercial HVAC, process cooling, fire protection
1900e Series ECM In-Line	Commercial	Close-coupled ECM brushless DC; integrated variable frequency drive, self-sensing	Energy code–compliant commercial HVAC
KV Series Vertical In-Line	Large Commercial	Close-coupled NEMA-frame; single- or three-phase ODP/TEFC; Oe Package ECM option	Large commercial HVAC
KS Series Vertical Split -Coupled In-Line	Large Commercial	Split-coupled NEMA-frame; single- or three-phase; Oe Package ECM option; VFD-ready	High-flow HVAC & industrial
FI Series Base -Mounted End Suction	Large Commercial	Bearing-frame mounted NEMA-frame motor; ODP or TEFC; Oe Package ECM option; VFD-compatible.	Chilled water plants, cooling towers, pressure boosting, and large HVAC
CI Series Close -Coupled End Suction	Large Commercial	Close-coupled NEMA C-face TEFC or ODP; Oe Package ECM option; VFD-compatible	Heating, A/C, condenser water, process
Pro-Fit RP Motors	Cross- Replacement	Frame-mounted ODP; sleeve or ball bearing; permanently lubricated; C-face on larger HP	Drop-in motor replacement for Bell & Gossett and Armstrong pump frames; standardize multi-brand plants
BumbleBee Series	Specialty / Residential	Wet-rotor ECM permanent magnet variable speed; plug-in cord	Retrofit residential DHW recirculation

Taco Pumps Categories

Residential - 00 and 00e Series - Small circulators for residential hydronic and DHW systems
Residential / Light Commercial - ECM and VR Series - High-efficiency wet-rotor, residential through light commercial
Light / Medium Commercial - 2400 and Pro-Fit - Medium-capacity and cross-replacement applications
Commercial - 1600 and 1900 Series - Frame-mounted and close-coupled in-line commercial pumps
Large Commercial - KV, KS, FI, CI Series - NEMA-frame large commercial and industrial pumps

The correct motor for your application depends on the pump series and power installed, the duty point your system requires, and whether your priority is lowest first cost or highest long-term efficiency. If you are not sure what motor is the correct replacement for your pump, Liberty Supply's sales team can help you cross-check and identify the appropriate motor model and part number.

Note: The Pro-Fit motor line is Taco's cross-replacement motor and parts family, engineered to fit into Bell & Gossett and Armstrong pump frames as direct replacements. If you maintain a mixed-brand hydronic plant, Pro-Fit motors offer a practical way to standardize your parts inventory on a single manufacturer.

Taco Pump Motor Mounts: Why They Matter

The way that the motor is mounted on the bracket is an important part of the whole pump design. It directly affects noise levels, vibration transmission, shaft alignment, and the long-term health of both the motor bearings and the system piping. Taco uses three motor mounting approaches across its product lines:

Mount Type	How It Works	Advantage	Consideration
Rigid (Direct)	Hard-mounted to the pump bracket	Maximum shaft alignment accuracy	Higher vibration transmission to piping
Resilient Mount	Rubber isolators between the motor and the cradle	Vibration-free, quiet operation	Requires periodic mount inspection
C-Face Mount	Motor bolts directly to the pump adapter face	Compact, precise alignment	Less vibration-damping than resilient

Resilient motor mounts on the 1600 Series

The 1600 Series In-Line pump is specifically designed with resilient motor mounting: the motor cradle incorporates rubber isolator elements (motor mount rings) between the motor and the pump bracket. The result is a pump assembly that absorbs its own vibration internally, rather than transmitting it into the piping, the building structure, or adjacent equipment.

This is extremely important in commercial installations where mechanical noise is a design consideration - hotel mechanical rooms, hospital facilities, office buildings, and anywhere the pump operates in proximity to occupied spaces. The resilient mount also provides a measure of tolerance for minor shaft alignment variations, reducing the bearing load caused by imperfect motor-to-pump shaft alignment.

Reading Your Pump: Signals That Point Toward Motor Service

It's important for anyone maintaining a hydronic system to be able to read a pump's signals before a situation becomes urgent. Taco motors are built for long service life, but like all electromechanical equipment, they communicate their condition through observable changes in behavior - if you know what to look for.
The table below outlines the most common observations, what they may indicate, and the appropriate response. They are data points that inform a maintenance decision, not emergency indicators.

Observation	What It Indicate	Recommended Action
Unusual noise or vibration	Motor bearings or coupling showing wear	Schedule a motor inspection soon
Pump runs, but no heat in the zone	The motor is turning, but the impeller is not moving fluid	Check coupling; evaluate motor
Tripped breaker / blown fuse	Electrical overload - winding or capacitor issue	Electrical evaluation required
Intermittent operation	Thermal overload cycling on and off	Check for an overheating source
Motor is warm to the touch at rest	Normal - PSC motors run warm	Monitor; no action needed
The motor is hot and shutting down	Blocked airflow or winding stress	Inspect mounting, ventilation
Visible corrosion on the motor body	Moisture exposure or seal weep	Inspect seal; plan motor swap
Age exceeds 15–20 years	End of typical service life range	Proactive replacement advised

DIAGNOSTIC TIP: A motor that trips its thermal overload repeatedly is almost always doing so for a reason. Before resetting and restarting, check for blocked airflow around the motor housing, confirm the motor mount allows adequate air circulation, and verify that the system is not in a runaway condition that is demanding more from the motor than its nameplate allows.

Proactive Motor Management: Getting Ahead of Replacement

The most effective motor replacement is one that is planned and scheduled, not one you are forced into. Taco motors are designed for continuous operation and typically deliver 15-25 years of reliable service. For that, proper installation and operation within their design parameters are essential; further, system conditions, water quality, operating hours, and the promptness with which early warning signals are addressed are also crucial to the motor's lifespan.

A practical approach for maintenance is to establish a motor assessment interval: every 3 to 5 years for actively maintained systems, or whenever a circulator is opened for any reason. At each assessment, it is important to check the following:

Bearing Condition - On frame-mounted motors, a listening check can be performed using a stethoscope or a listening rod to detect developing bearing roughness before it progresses to audible noise at the pump body.
Motor mount integrity - Inspect the mounting rings for compression, cracking, or hardening; a degraded mount increases bearing load and vibration transmission.
Coupling condition - Flexible couplings absorb minor misalignment and dampen torsional shock. A cracked, compressed, or heat-discolored coupling should be replaced before operational peaks.
Nameplate documentation - Photograph or record the motor nameplate data - HP, voltage, frame, part number - while the equipment is accessible. Having this information on file eliminates delay when a replacement order needs to be placed quickly.

Stocking a spare motor for critical circulation pumps - zone pumps serving hospital wings, primary loop pumps in large commercial facilities, domestic hot water recirc pumps in hotels, data centers water circulation - is a straightforward hedge against downtime. At Liberty Supply, we supply the entire Taco motor range. If you are building out a spare parts inventory or need help matching a motor to an existing pump, reach out to our team.

Frequently Asked Questions

What is a Taco pump motor?

A Taco pump motor is the electric motor that drives the impeller in a Taco circulator or in-line pump. Depending on the product series, the motor may be integrated into a replaceable cartridge assembly (00 Series) or configured as a discrete, field-replaceable frame-mounted motor (1600 Series and Pro-Fit line). All Taco hydronic motors are permanently lubricated and maintenance-free under normal operating conditions.

What does a Taco circulator pump motor do?

The motor converts electrical input into rotational shaft energy, which spins the pump impeller. The rotating impeller imparts velocity to the hydronic fluid — water or glycol — which the pump casing converts into pressure and flow. This circulates heated or chilled water through the building's distribution piping to deliver thermal energy where it is needed.

How do I know when to replace a Taco circulator pump motor?

Common indicators that a motor is due for evaluation include: unusual noise or vibration that was not previously present, repeated thermal overload trips, the pump running without achieving expected flow or pressure, visible corrosion or moisture at the motor housing, or a service life that has exceeded 15 to 20 years in continuous-duty operation. None of these signals requires immediate emergency action in isolation — they are prompts for a closer inspection and a maintenance decision.

What is the Taco Pro-Fit motor?

The Taco Pro-Fit motor is Taco's line of permanently lubricated, resilient-mounted replacement motors and parts engineered as cross-brand replacements for Bell & Gossett and Armstrong equipment. They ship with a rigid steel mounting cradle, pre-installed resilient motor mounts, and are matched to standard pump frame sizes - making them a practical choice for facilities that operate mixed-brand hydronic equipment and want to standardize on a single, stocked motor family.
