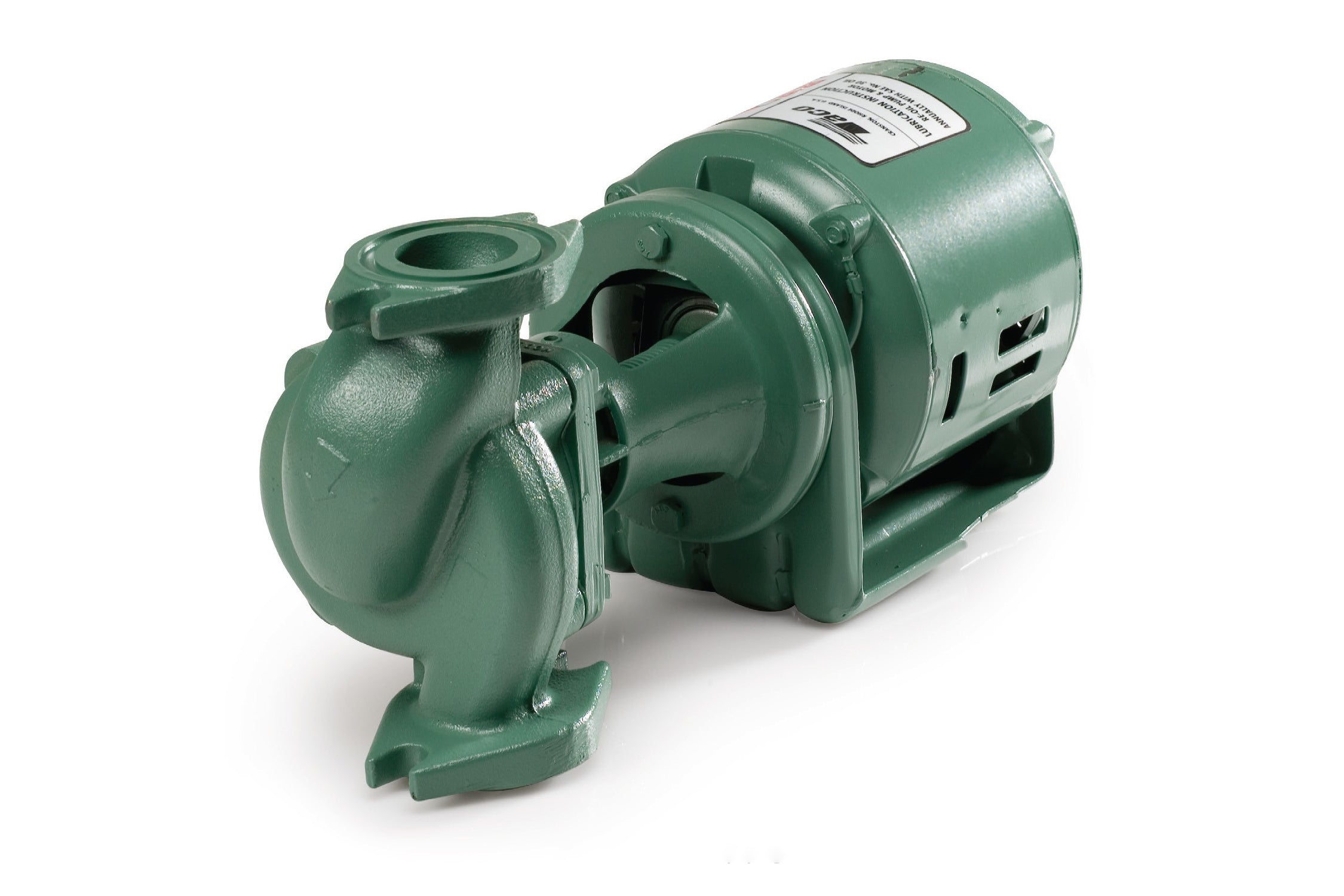

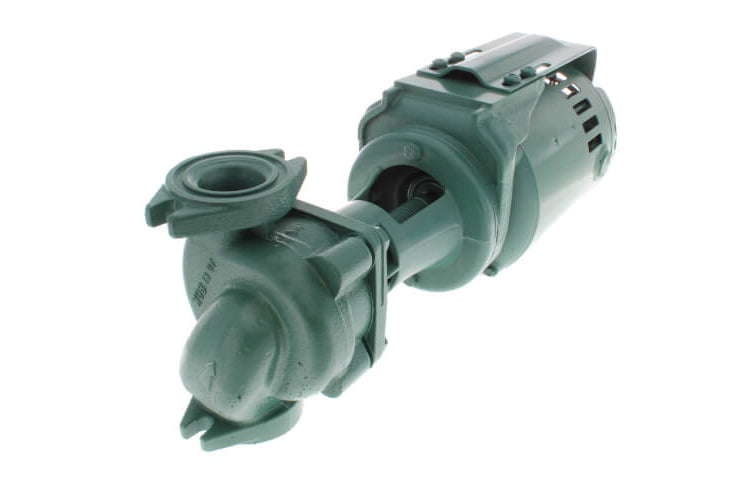

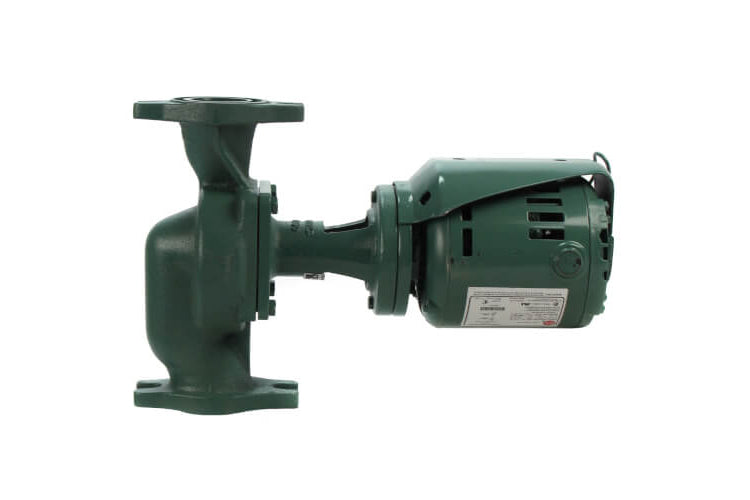

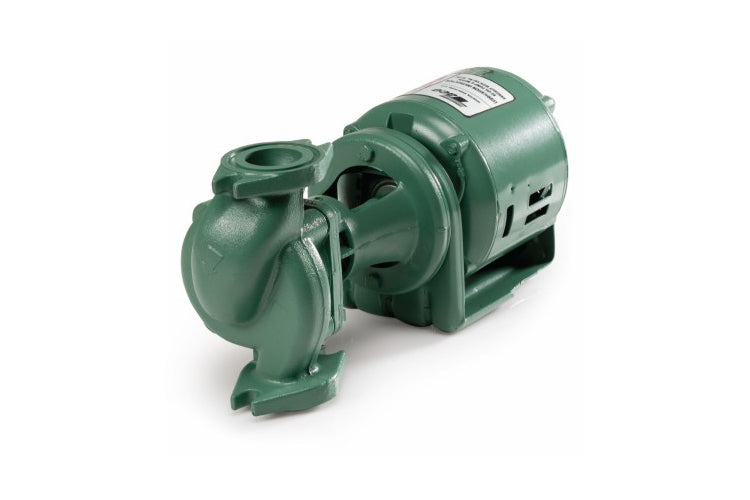

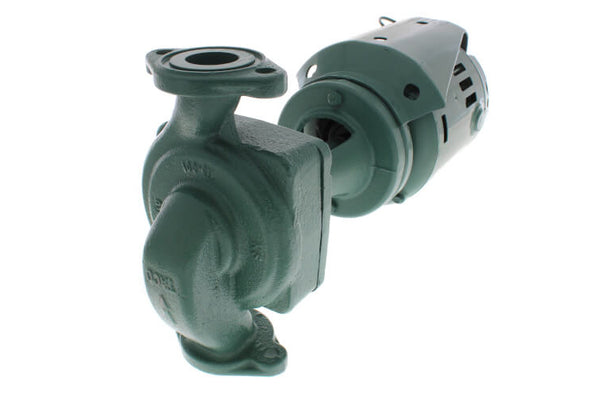

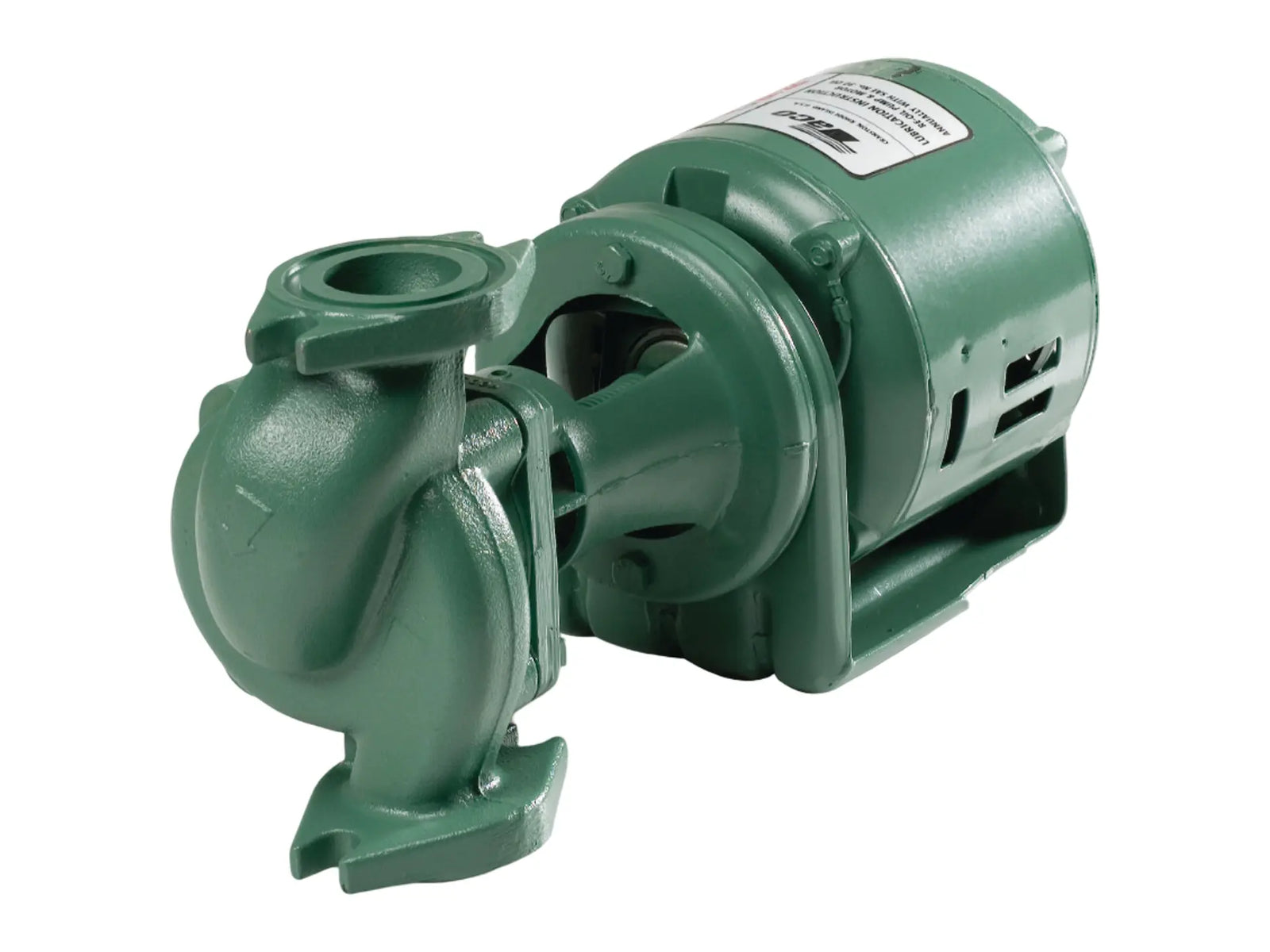

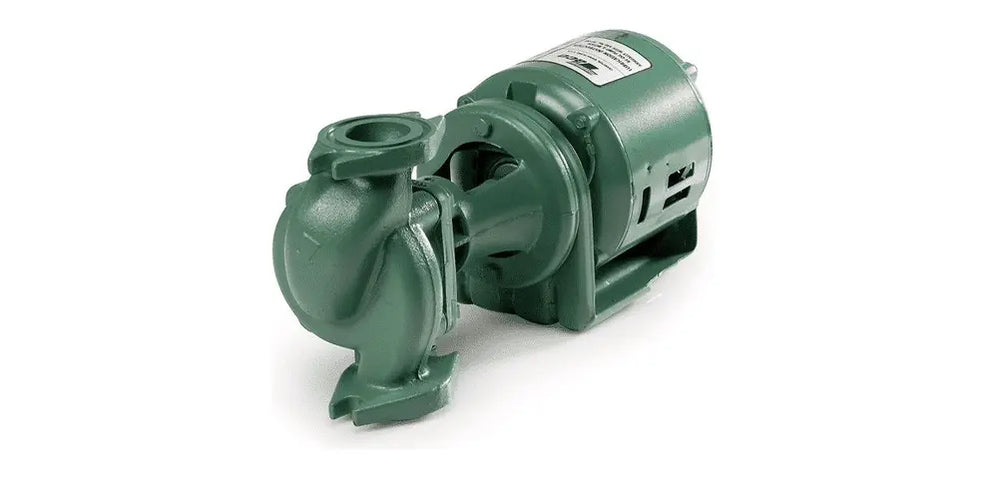

Taco 110-120 Series In-Line Circulator Pumps

Taco 110-120 Series In-Line Circulator Pumps: Quiet, Dependable Circulation for Residential and Light Commercial Applications

Taco 110-120 Series in-line circulator pumps are designed to efficiently move heated or chilled water through residential and light commercial hydronic systems. Built for proven performance, quiet operation, and long-lasting dependability, these circulators are a practical solution for hydronic heating, cooling, domestic hot water recirculation, and zoning applications.

The 110-120 Series can be used in standard circulation systems as well as larger installations where zoning is required. For domestic hot water applications, select models are available in bronze or stainless steel construction, providing material options suited for potable water service.

Designed with durable internal components, these in-line circulators include a resilient-mounted split-phase motor with built-in overload protection, sleeve bearings for quiet operation, a stainless steel shaft, and a two-piece carbon/ceramic seal assembly. A one-piece non-ferrous impeller and durable spring coupling help support reliable circulation and long service life.

With flow ranges up to 68 GPM, head ranges up to 22 feet, maximum fluid temperatures up to 240°F, and connection sizes from 3/4" to 2", Taco 110-120 Series circulators provide dependable performance for a variety of heating, cooling, and hot water recirculation systems.

Features

• In-line circulator pump design
• Designed for residential and light commercial hydronic systems
• Efficiently circulates heated or chilled water

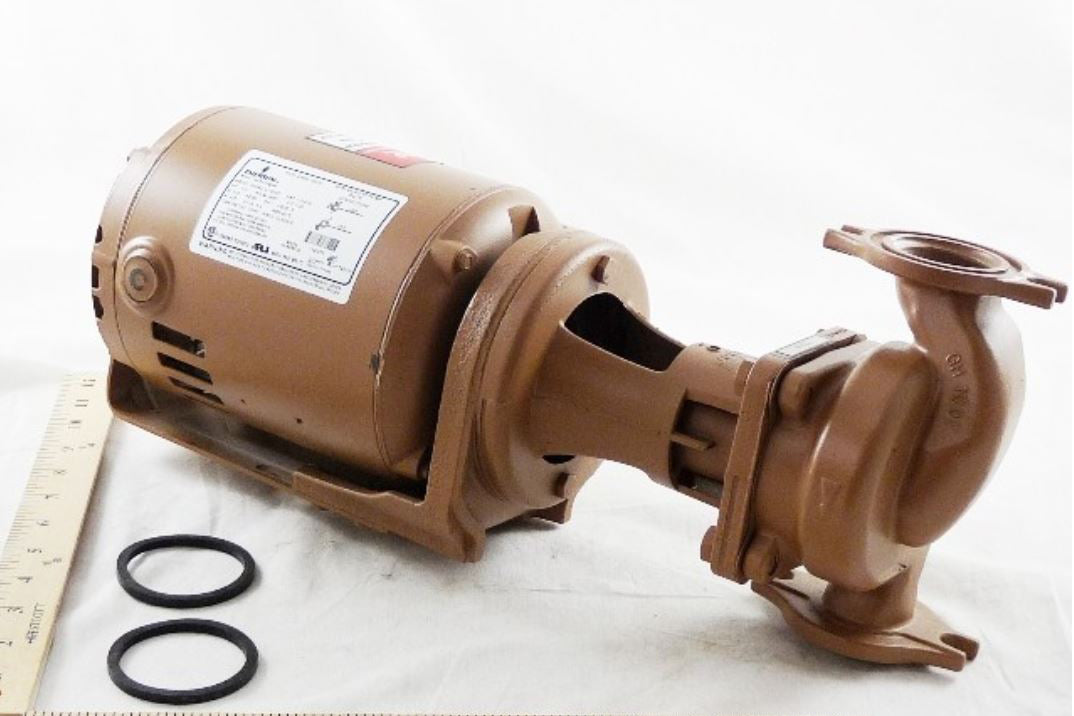

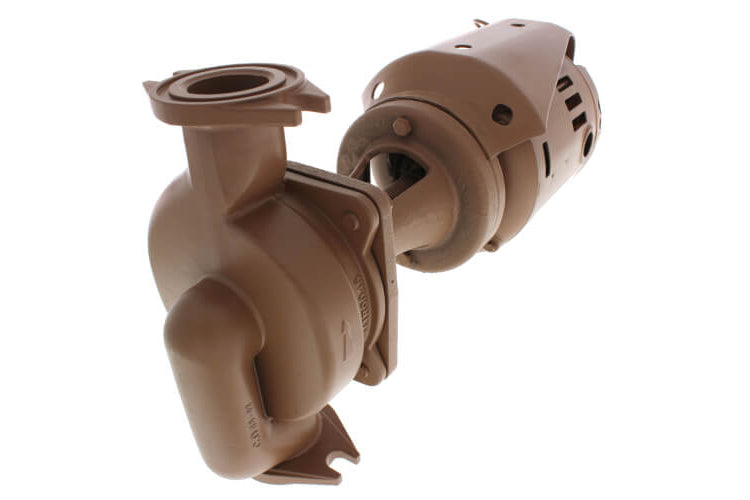

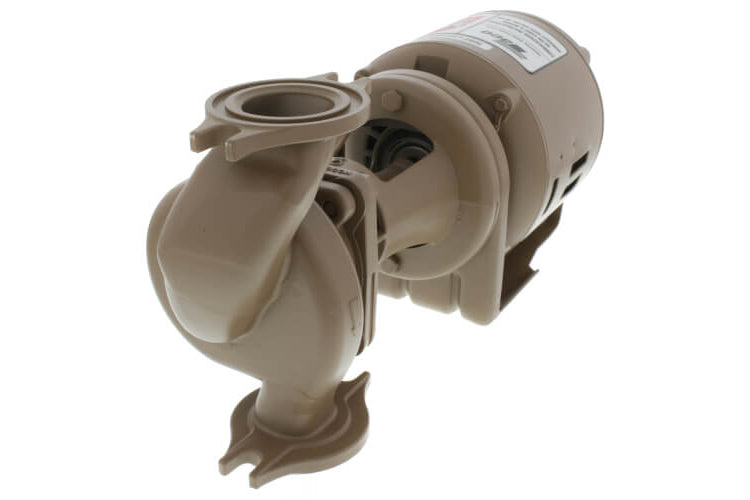

• Available in bronze or stainless steel construction for domestic hot water applications
• Proven performance with quiet, dependable operation
• Resilient-mounted split-phase motor
• Built-in motor overload protector
• Sleeve bearings help support quiet operation
• Rugged bronze sleeve bearing construction
• One-piece non-ferrous impeller
• Stainless steel shaft

• Two-piece carbon/ceramic seal assembly
• Durable one-piece spring coupling

• low range: 0 to 68 GPM
• Head range: 0 to 22 feet
• Maximum fluid temperature: 240°F
• Maximum working pressure: 125 PSI
• Horsepower options: 1/12, 1/8, 1/6, and 1/3 HP
• Connection sizes: 3/4" to 2"

Applications

• Domestic hot water heating systems
• Domestic hot water recirculation
• Hydronic heating systems
• Hydronic cooling systems
• Residential circulation systems
• Light commercial circulation systems
• Zoned hydronic systems
• Solar systems
• Geothermal systems
