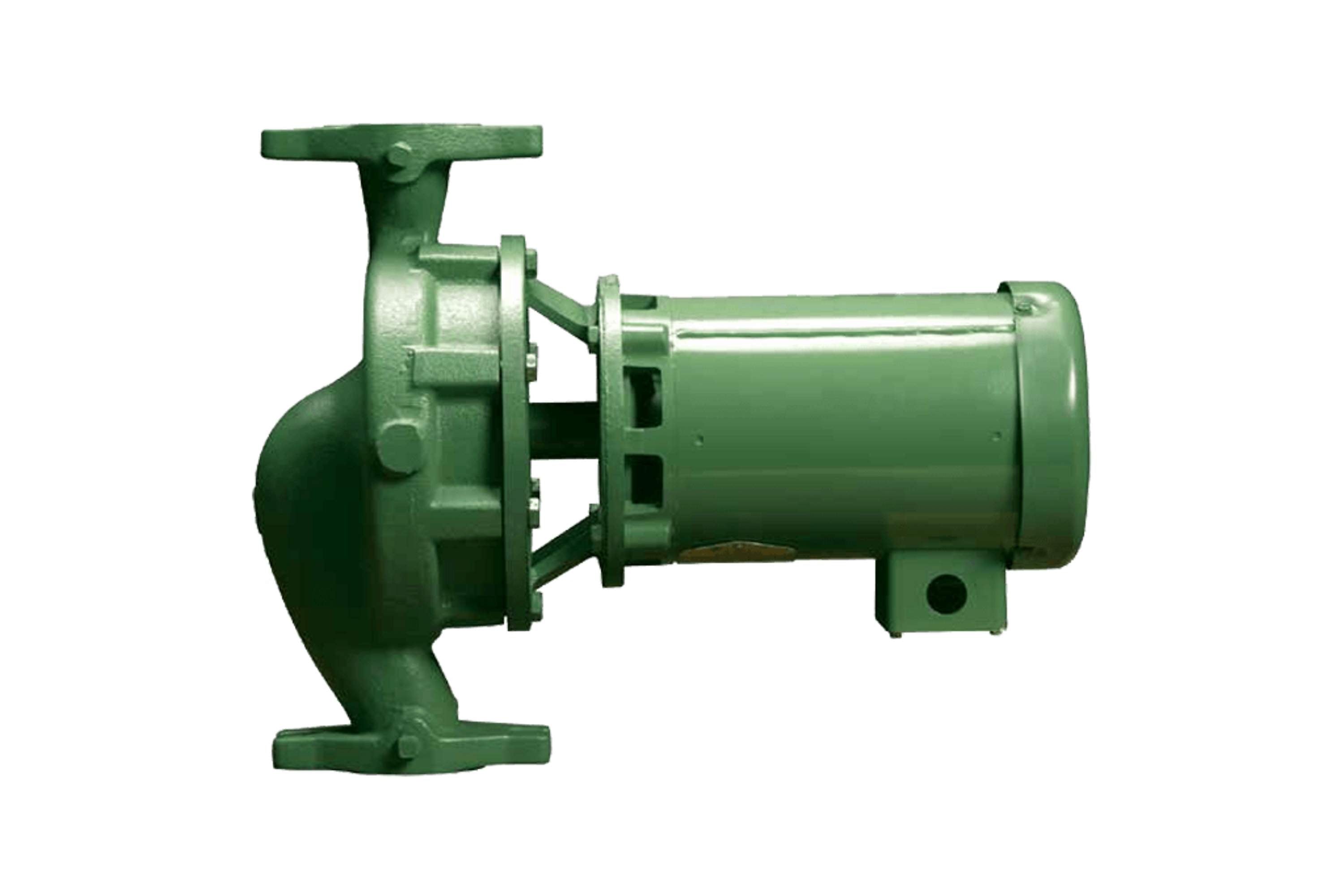

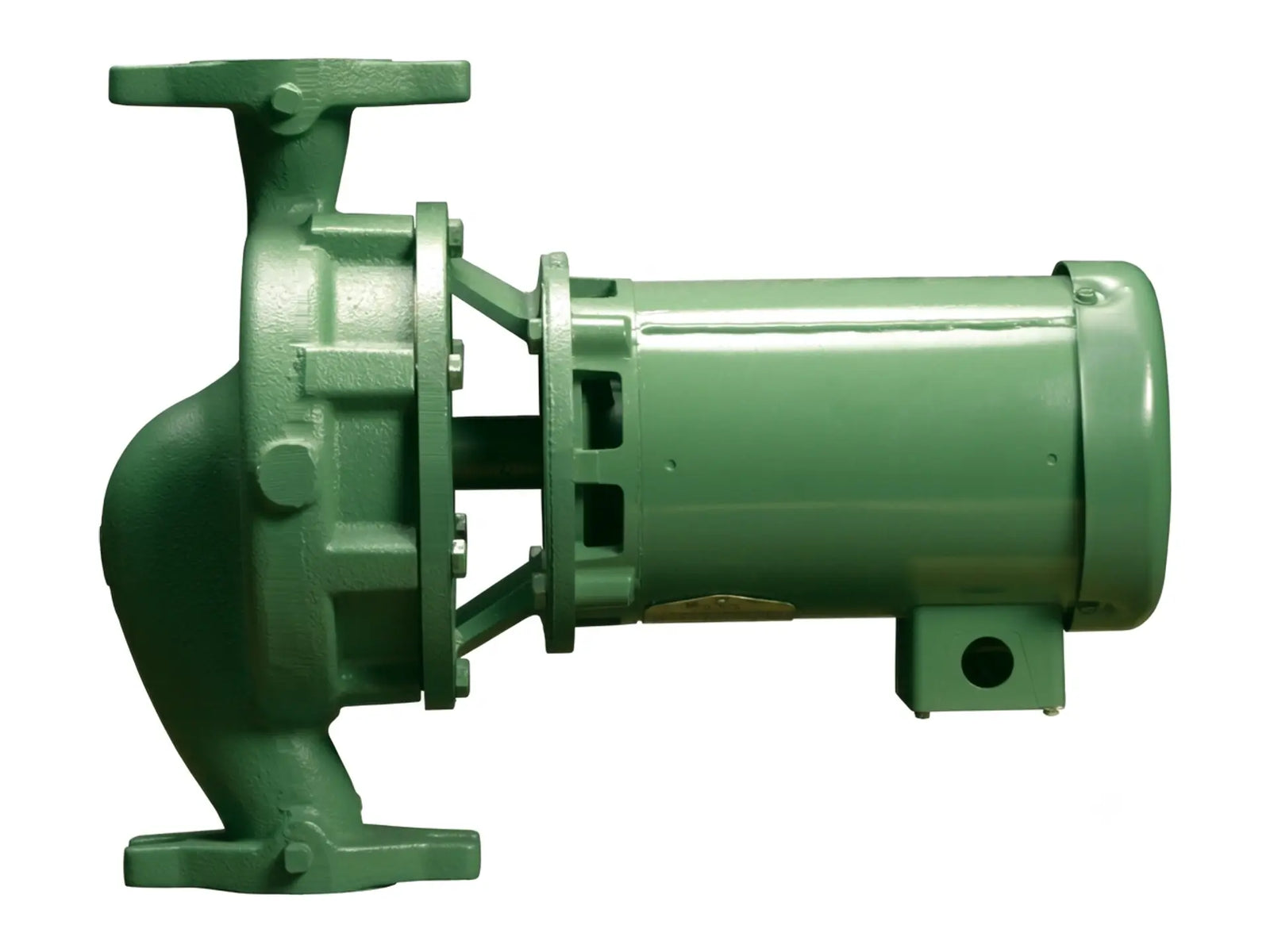

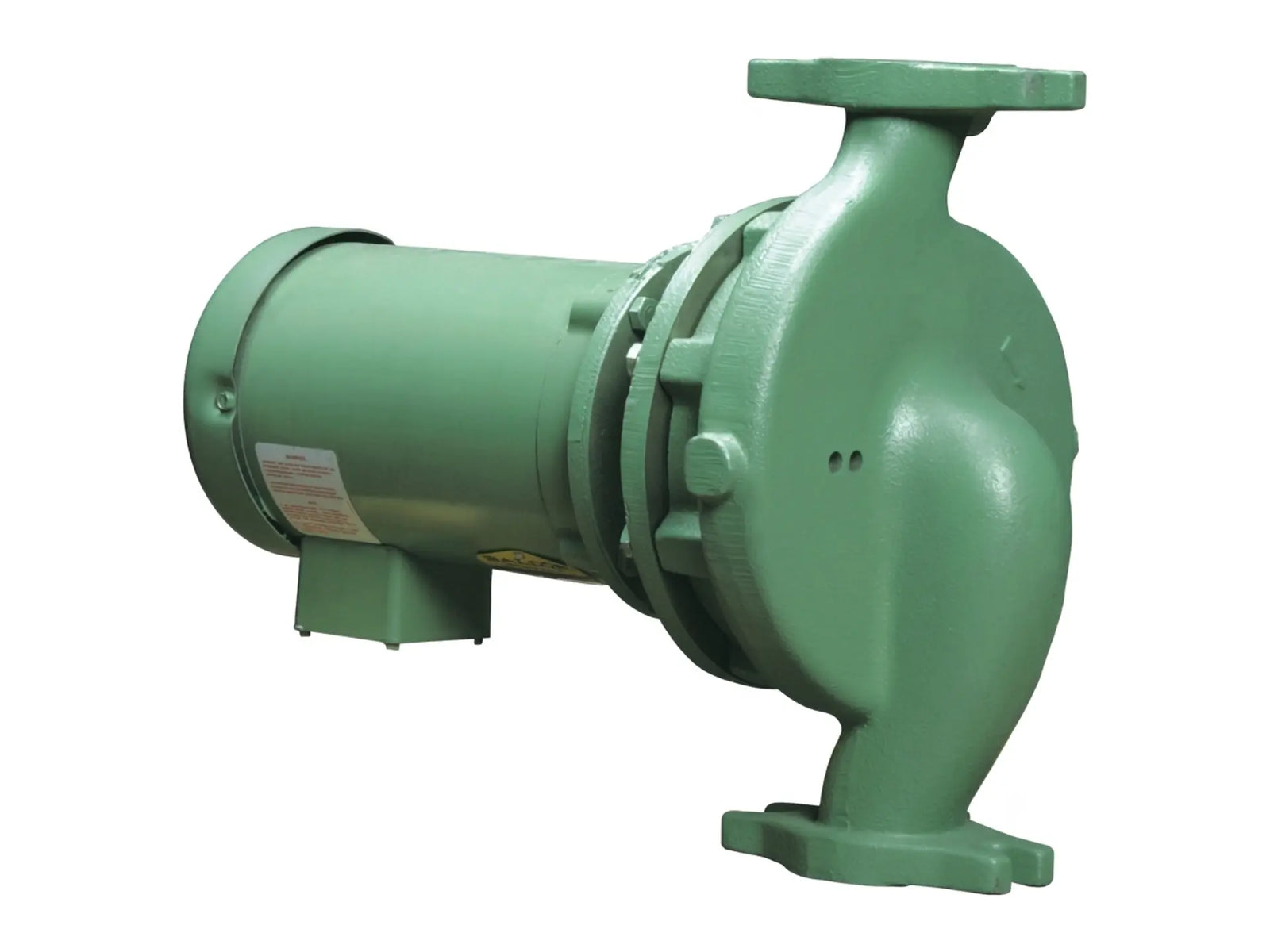

Taco 1900 Series Close-Coupled In-Line Pumps

Taco 1900 Series close-coupled in-line pumps meet the latest hydraulic performance and reliability industry standards. The Taco 1900 Series close-coupled in-line pumps are designed to be energy efficient and fit anywhere in the piping layout. 1900 Series close-coupled in-line pumps are self-supported by piping and can be installed horizontally or vertically. The pump and sealed ball-bearing motor are maintenance-free. The rear pull-out design and standard motor simplify servicing, and a single seal and shaft sleeve fits all models.

Taco 1900 Series Features

• Close-coupled compact design is energy efficient and installs anywhere in the piping layout
• Self-supporting design allows horizontal or vertical installation
• Pump and sealed ball bearing motor are maintenance-free
• Rear pull-out design and standard motor promote simple, easy service
• One seal and shaft sleeve fits all models, assuring superior parts flexibility
• Flow range: 7-280 GPM
• Head range: 6′ to 164′
• Working pressure: 175 psi in accordance with ASA B16.1
• Temperature: 250°F standard, 300°F with hi-Temp seal
• HP: 1/4 to 7-1/2
• Sizes: 1-1/2"

Taco 1900 Series Brochure

Taco 1900 Series Replacement Parts

Taco 1900 Series Performance Curves

Taco 1900 Series Instructions
