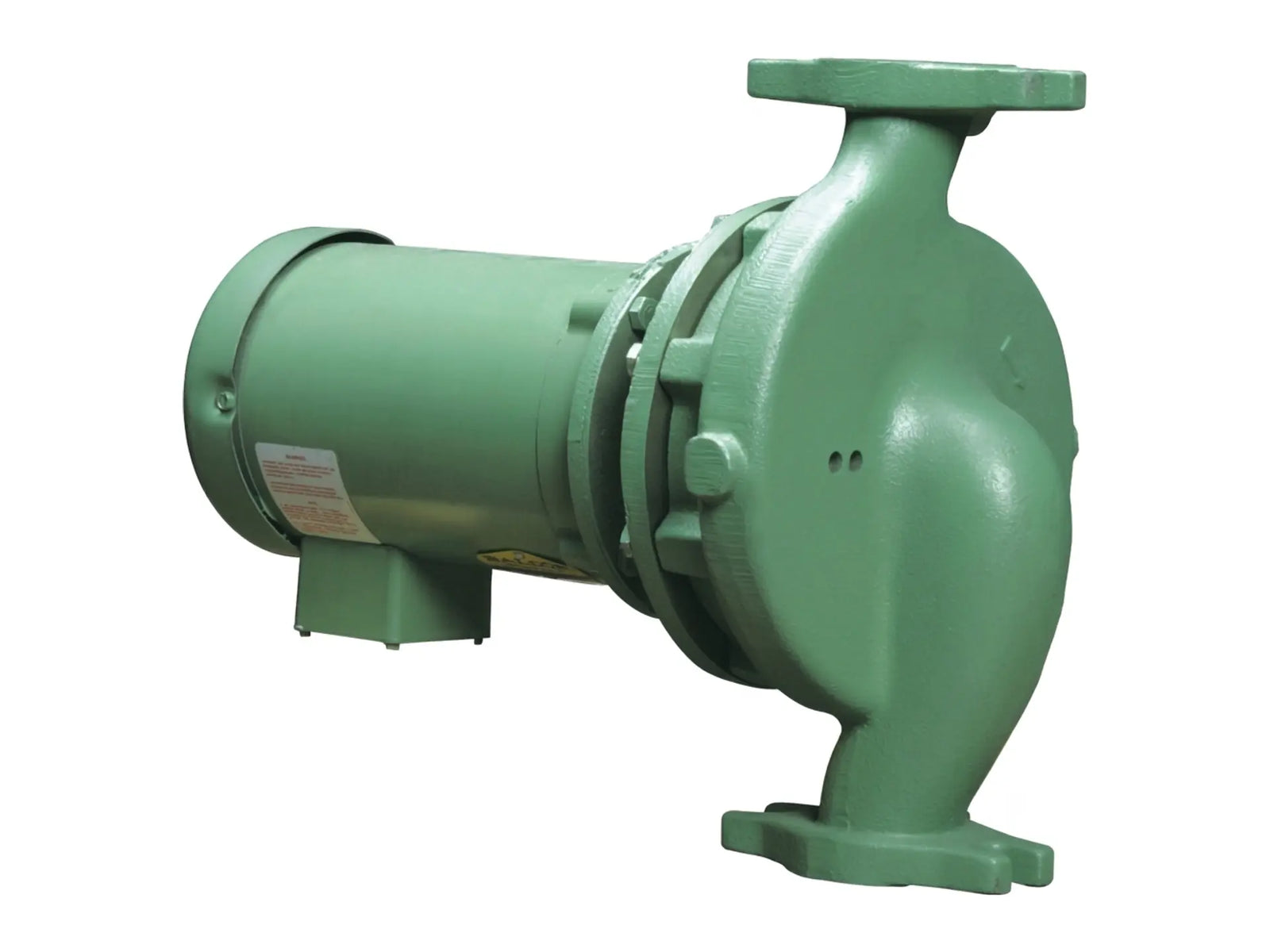

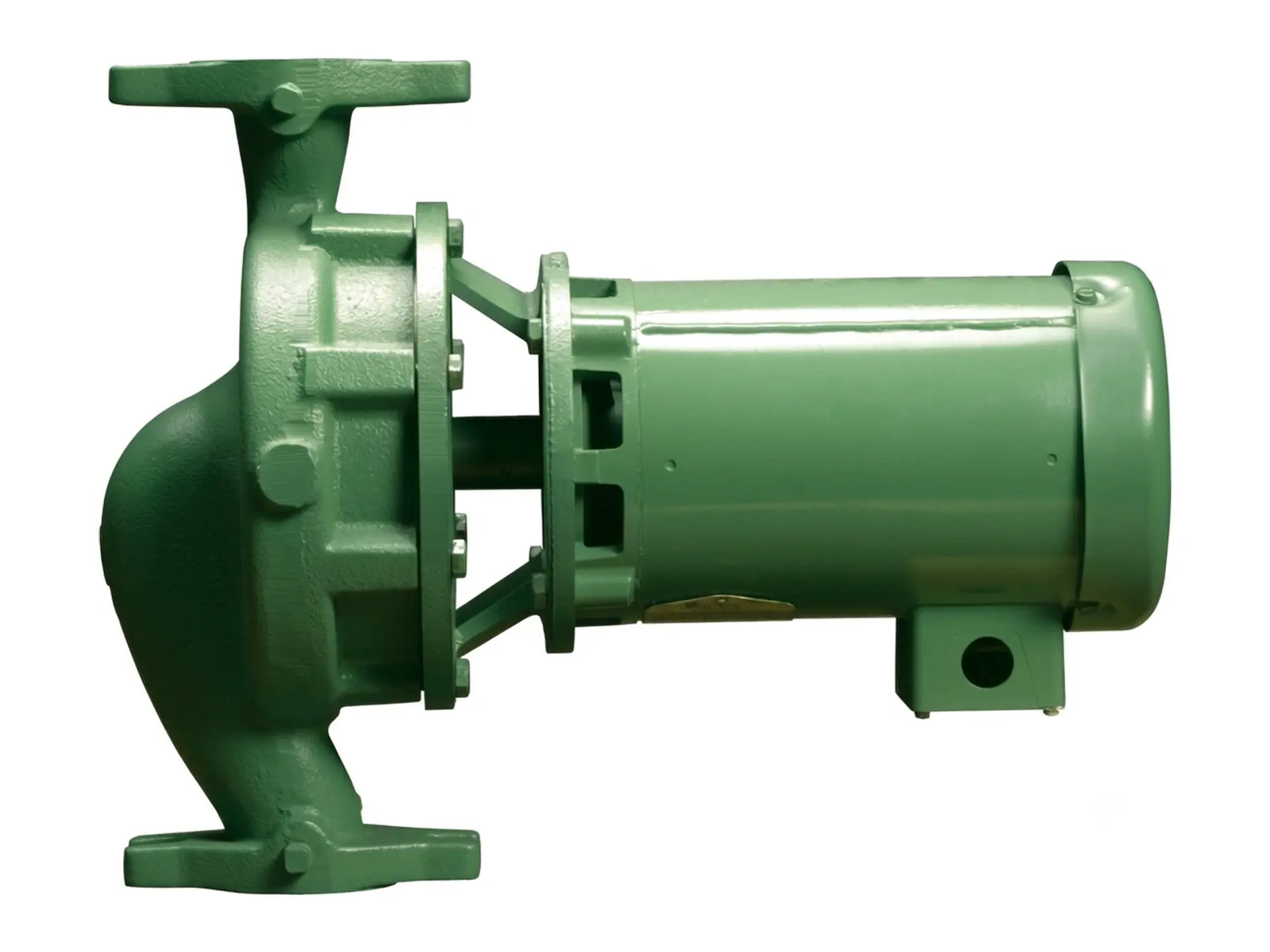

Taco 1900 Series Close-Coupled In-Line Pumps

Taco 1900 Series Close-Coupled In-Line Pumps

Taco 1900 Series close-coupled in-line pumps are designed for reliable performance, energy-efficient operation, and easy installation in commercial and hydronic system applications. Built to meet current industry standards for hydraulic performance and reliability, these pumps provide a compact solution for heating and air conditioning systems, recirculation, booster service, and other water-movement applications.

The 1900 Series is designed to fit directly into the piping layout and can be installed horizontally or vertically, giving contractors and facility teams greater flexibility in mechanical rooms and tight system spaces. Its self-supporting design helps simplify installation, while the close-coupled configuration reduces the need for additional floor-mounted equipment.

For long-term dependability, the pump and sealed ball bearing motor are maintenance-free. A rear pullout design and standard motor arrangement help make service easier, while one seal and shaft sleeve fits all models for improved parts flexibility and simplified maintenance planning.

With flow ranges from 7 to 280 GPM, head ranges from 6 to 164 feet, working pressure up to 175 PSI, and temperature ratings up to 250°F standard or 300°F with a high-temperature seal, Taco 1900 Series pumps are a practical choice for a wide range of HVAC and general pumping applications.

Features

• Close-coupled in-line pump design

• Compact construction for efficient use of mechanical room space

• Energy-efficient operation for HVAC and hydronic systems

• Designed to meet current hydraulic performance and reliability standards

• Self-supporting design allows horizontal or vertical installation

• Installs directly into the piping layout

• Maintenance-free pump and sealed ball bearing motor

• Rear pullout design helps simplify service

• Standard motor arrangement supports easier maintenance

• One seal and shaft sleeve fits all models for superior parts flexibility

• Flow range: 7 to 280 GPM

• Head range: 6 to 164 feet

• Working pressure: 175 PSI

• Temperature rating: 250°F standard

• Temperature rating: 300°F with high-temperature seal

• Horsepower range: 1/4 to 7-1/2 HP


Applications

• Air conditioning systems

• Heating systems

• Recirculation

• Booster service

• Cooling towers

• Dry cleaning plants

• Livestock watering

• Bottle washers

• Lawn sprinkler systems
